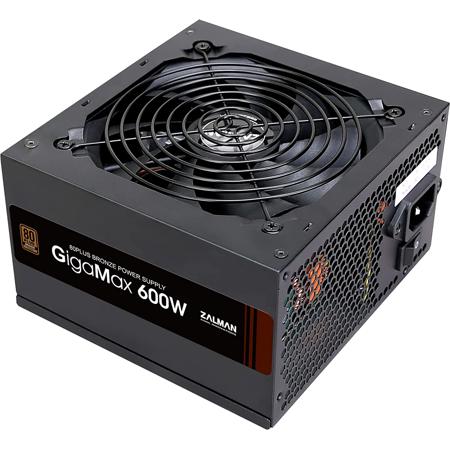

Zalman Cases GigaMax 600W Standard ATX Power Supply, 80 Plus Bronze Certified

SKU: ZAZM600GVIIA

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Zalman Cases GigaMax Power Supply Specifications

  • 80PLUS

    Bronze

  • Type

    Intel ATX 12V Ver2.31

  • PFC

    Active PFC

  • Input Voltage

    100 - 240VAC

  • Input Current

    10 - 5A

  • Input Frequency

    50 - 60Hz

  • Fan Size

    120mm

  • Fan Bearing

    Sleeve Bearing

  • Efficiency

    Max 85% @115VAC, Typical load

  • MTBF

    100,000 hours

  • Operating Temperature

    32 - 104 Degree F (0 - +40 Degree C)

  • Protection

    OCP/OVP/OPP/OTP/UVP/SCP

  • Cable

    1x Mainboard (20+4)Pin Connector, 1x CPU 8Pin + 4Pin Connector, 2x PCI (6+2)Pin Connector, 6x S-ATA Connector, 4x IDE Connector, 1x FDD Connector

  • Dimensions (L x W x H)

    5.51 x 5.90 x 3.38" (140 x 150 x 86mm)

  • Weight

    3.52 lbs (1.6kg)

  • UPC Code

    823884205565

About Zalman Cases GigaMax Power Supply

You can trust the GigaMax 600W Standard ATX Power Supply to deliver reliable, high-performance power to your computer system. This 80 Plus Bronze Certified power supply offers an impressive 85% efficiency at 115VAC under typical loads, making it an environmentally friendly choice for your power needs.

Designed with your system's safety in mind, this power supply comes fully certified with over-current, over-voltage, over-power, and over-temperature protection. It also includes under-voltage and short-circuit protection, ensuring your equipment is safeguarded from potential power issues.

The GigaMax 600W power supply is built to fit standard ATX size (140mm x 150mm x 86mm), providing a wide range of compatibility with various systems. Its secondary protection IC, +12V output, and 105-degree C capacitors further enhance its performance and reliability.

With an active PFC (Power Factor Correction) circuit, this power supply maximizes power efficiency, reduces electromagnetic waves, and prevents reverse current. Its 120mm low-noise fan delivers powerful cooling performance, efficiently removing heat from the power supply even at low RPM.

The power supply features all-black, flat cables for a clean and organized look during system installation. These cables are delicately processed for easy installation.

The GigaMax 600W power supply is not only efficient and high-performing but also eco-friendly. All materials used are safe and harmless to the environment and human health. It meets RoHS standards and has passed XRF testing for hazardous substances.

Additionally, it's ErP Lot 6 certified, meaning it's highly energy-efficient even in standby mode, keeping power consumption under 1W. This ensures you enjoy an energy-efficient and environmentally friendly user experience.

The package includes a user manual, cable ties, power cord, and screw set for easy installation. Trust the GigaMax 600W Standard ATX Power Supply for a durable, efficient, and affordable power solution for your high-performance systems.

Zalman Cases GigaMax Power Supply Features

  • Active PFC with upto 99% Maximum Power Factor
  • 105 Degree C Capacitor
  • Built-In EMI Filter for Noise Reduction
  • Switching Transformer
  • 12V Single Rail 90% Availability
  • Built-in Aluminum Heatsink

Key Features

  • 80 Plus Bronze Certified for energy efficiency and eco-friendliness
  • Advanced protection with over-current, over-voltage, and short-circuit safeguards
  • Active PFC circuit for up to 99% power efficiency and reduced electromagnetic interference
  • Quiet 120mm HDB fan ensures powerful cooling performance at low noise levels
  • Sleek all-black, flat cables for a clean and organized installation
  • ErP Lot 6 Certified, optimizing energy usage during standby mode

What's in the box:

  • Zalman Cases GigaMax 600W Standard ATX Power Supply
  • 5x Cable Ties
  • Power Cord
  • 4x Screws
  • Zalman Cases 5 Year Limited Warranty
