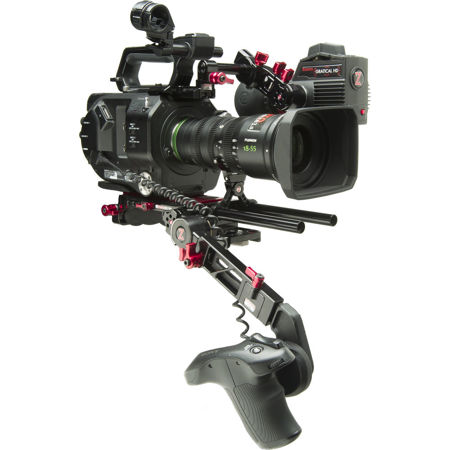

Zacuto Sony FS7 II Recoil Pro Gratical HD Bundle

Includes Zacuto Recoil Pro shoulder rig (with VCT Pro baseplate and shoulder pad + Axis Mini EVF mount + Zgrip Trigger) and Gratical HD EVF. Bundle designed to pair with your Sony FS7 II camera.

Sony FS7 II Recoil Pro
The Sony FS7 II Recoil Pro shoulder-mounted rig includes our VCT Pro baseplate and our Axis Mini for Sony FS7 and FS7 II cameras which can be used with either the Gratical EVFs or the Sony monitor. Use the highly adaptable FS7II Zgrip Trigger to relocate your FS7 II camera grip.

This is a Next Generation Recoil rig designed for optimal balance and comfort when shoulder mounted or on a tripod. With lenses and cameras being similar weights, the balance point is where the lens meets the camera body. In a Recoil rig, the balance point needs to be directly over your shoulder which puts the camera behind you. This requires focus, monitoring and camera controls to be relocated forward, creating a lighter and shorter rig.

Includes:
VCT Pro - this baseplate has a sliding top plate for quickly removing the camera from the rig or fast lens changes, a built-in, curved shoulder pad, a v-wedge tripod connector (with 1/4" 20 and 3/8" 16 screw option). It has removable and extendable 6.5" iris rods and rows of 1/4" 20 screw holes along the sides for accessories. It has quick release 15mm rod parts in the rear. The recessed rod mount offers maximum accessory capable space under your camera lens.

Axis Mini for Sony FS7 - Attaches to the included Sony FS7 Rod Lock to mount either a rosette mounted EVF like the Gratical HD or the Sony monitor itself (Sony 15mm round rod insert required for FS7 II compatibility). Adjustable positioning for shoulder mounted shooting or tripod shooting.

FS7II Zgrip Trigger- Attaches via an M6 Rosette. It allows for single-handed 360 degree rotation with the simple press of a trigger. Flip it down for a low, rock-solid handgrip. Raise it up for more of an Aaton style position. Or quickly flip it all the way up to set your camera flat on the ground or for storing in a case. The FS7 II Zgrip Trigger is 11.5" long with 6" of length adjustment. The handgrip allows 360 degree of rotation to adjust the handgrip into the perfect position for combatting fatigue.

Note - There are additional accessories pictured that are not included.

Gratical HD
The Gratical HD Micro OLED electronic viewfinder uses an extremely powerful FPGA dual core processor and the latest Micro-OLED displays to provide a hugely expanded contrast range. Our Micro-OLED display supports high pixel density with unparalleled resolution, true blacks, gamma and contrast range. The Gratical HD has 5.4 million pixels on a 0.61" diagonal screen no bigger than the size of your thumbnail.

The Gratical HD includes two HDMI and two SDI ports with cross conversion from HDMI to SDI. Weather resistant covers prevent moisture or debris from getting in open ports.

You'll be amazed with how sharp the image is. The internal field of view is just the right size so that the image is large, but not so that your eye has to roam to see the entire image at once. It features a built in -1 to +4 diopter range and Zacuto's latest anti-fog coating formula. An auto-closing eyecup door prevents sunburn display automatically without any action by the operator.

Mount the Gratical HD to your Next Generation Recoil via the 1/4 20 rosette on the side with an Axis Mini. You can also mount the Gratical HD with the 1/4 20 screw hole in the bottom. Included is the LP-E6 style battery with charger and universal plug adapters.

Video Processing Features
• Custom Scaling/User Presets
• Color Processor - RGB, saturation, brightness, contrast
• Zebra Stripes - Customize width, color, thresholds
• Vectorscope
• Waveform (3D)
• Histogram (RGB, Luma)
• Audio Meters
• LUT import and editing
• Red Line Peaking (multi-color)
• False Color
• Frame Store Feature
• Test Pattern (color bars & Macbeth)
• Four programmable buttons
• Frame Rates - 23.98p, 23.98PsF, 24p, 24PsF, 25p, 25PsF, 29.97PsF, 30 PsF,50i, 50p, 59.94i, 60i, 60p

Connections
• HDMI - 1.4b compliant, resolutions up to 1080p/60, loop out
• HD-SDI - Resolutions up to 1080p/60, loop out
• Cross Conversion - HDMI to HD-SDI, independent LUT on output stream

Power
• Compatible with LP-E6 battery (7.8V 1800mAH LiON)
• Battery run time - 3-4 hours depending on features used
