Arca-Type Plate
15 mm LWS
9.5 x 4 x 2" (24.13 x 10.16 x 5.08cm)
Wood
360 Degree
Right
1x 15 mm Port
1x 1/4"-20 Rosette
1x 15 mm Rod Port
15 mm LWS
Monochrome
Unspecified LCD
3.5" (8.9cm)
800 x 480
16:9
Horizontal: 160 Degree
Vertical: 160 Degree
No
Check Field, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Scaling, Screen Markers
1x HDMI Type A Input
1x HDMI Type A Loop Output
HDMI
1080p
None
HDMI: 2-Channel
1x 3.5 mm Headphone Output
None
None
6 to 14 VDC
1x LP-E6
3 W
4x 1/4"-20 Female
1x Rosette with 1/4"-20 Female
For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

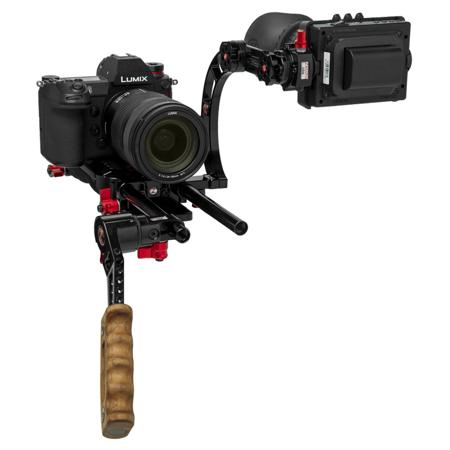

When seeking a durable and versatile camera rig, the ACT Cageless Recoil Rig stands out as an exceptional choice. This Arca-Swiss compatible shoulder rig is designed for those who already possess an Arca Swiss compatible camera cage or for photographers and videographers who prefer a cageless setup.
The ACT Recoil Rig is meticulously engineered for optimal balance and comfort when shoulder-mounted. It can be easily configured to suit various shooting styles, including tripod, handheld, run'n'gun, low mode, and more, making it a highly versatile piece of equipment for any professional or hobbyist.
The ACT Baseplate, an integral part of this rig, is designed to work seamlessly with all Mirrorless and DSLR cameras. It features a built-in curved shoulder pad and 15mm lightweight spaced quick-release rod ports both at the front and back. These ports can accommodate matte boxes, follow focus, lens supports, and other accessories, enhancing the rig's functionality.
The top and bottom of the baseplate are Arca-Swiss compatible, facilitating easy transitions between shooting styles. The ACT mounting plate can be quickly locked down on your shoulder rig or cage rig, adding to the rig's convenience. The baseplate also features 1/4 20 and 3/8 16 screw holes for direct connection to tripod quick release plates.
The Right-Hand Wood Trigger Grip, designed for your right hand, attaches to any standard 15mm rod, providing a comfortable and solid grip on your rig. This grip allows for single-handed 360-degree rotation with the simple press of a trigger, enabling you to adjust the rig to your preferred shooting style.
The Axis Curve EVF Mount offers an easy way to mount an EVF when a cage or top handle is not available. It keeps your setup light and portable while still allowing you to position your EVF optimally for your current shooting style.
The ACT EVF Pro, a 3.5" LED back-lit HDMI electronic viewfinder, features a flip-up eyepiece with anti-fog optics. It can be used as a small monitor or an EVF, making it a versatile addition to your DSLM or DSLR shoulder rigs.
The ACT Cageless Recoil Rig is not just a camera rig; it's a comprehensive solution for your photography and videography needs, offering high-quality construction, versatility, and ease of use.
Designed for use with: Universal
