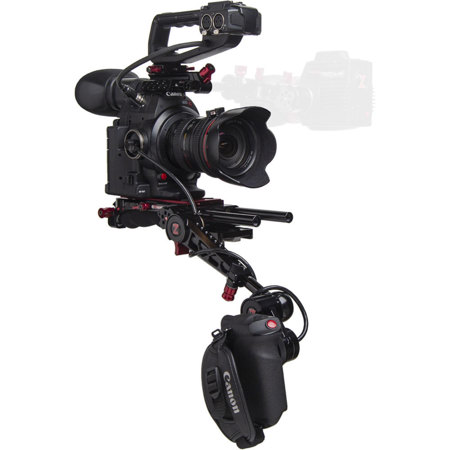

Zacuto Gratical HD Micro OLED Electronic Viewfinder Bundle for Canon C100 Mark II Camera, Includes EVF Recoil Pro V2 Rig with Trigger Grip

-- Gratical HD --
The Gratical HD Micro OLED electronic viewfinder uses an extremely powerful FPGA dual core processor and the latest Micro-OLED displays to provide a hugely expanded contrast range. Our Micro-OLED display supports high pixel density with unparalleled resolution, true blacks, gamma and contrast range. The Gratical HD has 5.4 million pixels on a 0.61" diagonal screen no bigger than the size of your thumbnail.

The Gratical HD includes two HDMI and two SDI ports with cross conversion from HDMI to SDI. Weather resistant covers prevent moisture or debris from getting in open ports. You'll be amazed with how sharp the image is. The internal field of view is just the right size so that the image is large, but not so that your eye has to roam to see the entire image at once. It features a built in -1 to +4 diopter range and Zacuto's latest anti-fog coating formula. An auto-closing eyecup door prevents sunburn display automatically without any action by the operator.

Mount the Gratical HD to your Next Generation Recoil via the 1/4-20 rosette on the side with an Axis Mini. You can also mount the Gratical HD with the 1/4-20 screw hole in the bottom. Included is the LP-E6 style battery with charger and universal plug adapters.

-- C100 Mark II EVF Recoil Pro V2 --
The Canon C100 Mark II EVF Recoil Pro V2 rig is a shoulder rig designed specifically for the Canon C100 Mark II camera. This is a Next Generation Recoil rig designed for optimal balance and comfort when shoulder mounted or on a tripod. With lenses and cameras being similar weights, the balance point is where the lens meets the camera body. In a shoulder mount rig, the balance point needs to be directly over your shoulder which puts the camera behind you. The Recoil rig adjusts for that balance point and relocates focus, monitoring and camera controls forward, creating a lighter, shorter and properly balanced rig.

-- VCT Pro Baseplate --
The VCT Pro baseplate is compatible with all cameras including Canon EOS C-series, Sony FS5/FS5 Mark II and FS7/FS7 Mark II, AJA CION, BlackMagic, Panasonic EVA1, Panasonic Varicam LT, RED cameras, Arri Alexa and Amira, DSLRs, Mirrorless and more The VCT Pro has a built-in, curved shoulder pad and an Arri M6 rosette for accessories and grips.

It comes with quick-release, extendable 6.5" rods at the front and lightweight spaced quick-release rod ports at the back. The v-wedge tripod connector is compatible with VCT14 tripod adapter plates or use the 1/4-20 and 3/8-16 screw holes for direct connect to your tripod quick release plate.

The red sliding top plate offers easy adjust-ability for lens changes, removing your camera and balancing your rig correctly on your shoulder. This sliding plate combined with a double screw track offers 10" of camera balance sliding range. You can quickly release your camera from the rig by sliding the red plate completely off and using our VCT Pro Dock to quickly transition it to a tripod, slider, etc.

The lightweight, adjustable rod mount is set far back in the plate, offering plenty of accessory-capable area under the camera lens. This allows you to position your camera further back on the plate, keeping the balance point of your rig directly over your shoulder. The sliding track of the rod riser offers 25mm of vertical adjustment. (Alternate Tall Rod Riser offering up to 45mm of vertical adjustment - for RED cameras)

The shoulder pad portion of the VCT Universal is set as far forward on the plate as possible, also to maximize your accessory capable rod area and aid with balance. The VCT Universal Baseplate is the core of our Next Generation Recoil rigs, designed for balance and comfort for every camera. Keeping the camera low prevents already tall cameras from being too top heavy. With our VCT, the distance from the bottom of your camera to your shoulder is just 3/4 inch.

-- Canon Trigger Grip --
The Canon Trigger Grip is a single handgrip that relocates the Canon C100, Canon C300 and Canon C500 camera grip to a comfortable hand grip position for shoulder rigs. The Trigger Grip attaches to an M6 Rosette, such as the rosette on the side of our VCT Pro. If you are looking for a pair of dual handgrips, click here.

Our trigger grips are the most adjustable grips available. They allow for single-handed 360 deg. rotation with the simple press of a trigger. The two handles rotate independently of each other. Flip them down for a low, rock-solid handgrip. Raise it up for more of an Aaton style position. Or quickly flip them both all the way up to set your camera flat on the ground or for storing in a case. Or stagger them if that is more comfortable to you. The length of the handgrips can also adjust by loosening a red lever and pulling the grip out or pushing in.

-- C100 Mark II Helmet --
The C100 Mark II Helmet package includes the C100 Mark II Helmet, a 5" Z-rail with a 15mm rod lock at the end and a double jawed Z-rail lock. The purpose of this helmet is to strengthen the mount of the supplied camera handle. The Helmet attaches to the top of the camera body via one screw on top and one on the side, relocating the film plane screw on the left side of the camera. This prevents the helmet from twisting. The Helmet has many extra 1/4-20 mounting screw holes. The Z-rail screws to the top of the Helmet, giving you a rod lock to mount the Axis Mini or other 15mm accessories.

Our double sided Z-Rail jaws allow you to attach the Canon top handle securely to the Z-Rail, giving you a rock solid connection to the camera with no wiggly movement. We've eliminated the need for the cumbersome round locking screw and strengthened it by clamping to the side walls of the cold shoe itself. The mount and the rod lock each use a lever for quick release capability. Once installed adjusting the handle forward or back for balance or removal of the handle is just a half turn of the lever.

-- Axis Mini --
The Axis Mini is the most adjustable ENG style mount for rosette mounted EVFs, giving you full 360 deg. motion with four adjustment points. Designed to attach to the top of your camera set up, it leaves plenty of room at the lens for focusing and will work with the widest of lenses. It can easily be adjusted with one hand while the rig is on your shoulder. The Axis Mini has extensive articulation for use with a variety of cameras, both shoulder mounted in a Next Generation Recoil or in tripod operating position. It is very small and quick to install and remove.

The Axis Mini attaches to your rig via a required 15mm rod port at the top of a kit positioned perpendicular to your camera lens, see recommended accessories. Slide the Axis Mini into the 15mm rod port and clamp into place. The Axis Mini attaches to the Gratical HD via a secure 1/4" 20 rosette mount. EVF's with a 1/4" 20 screw mount require the Quad Rail for use with the Axis Mini.

The Axis Mini has three red tension levers that are controlled independently with 360 degree motion. Release all three levers to completely reposition the mount or release just one to make single segment adjustments. You can dial in the exact amount of tension needed at each lever to adjust on the fly. Just grab and move.
