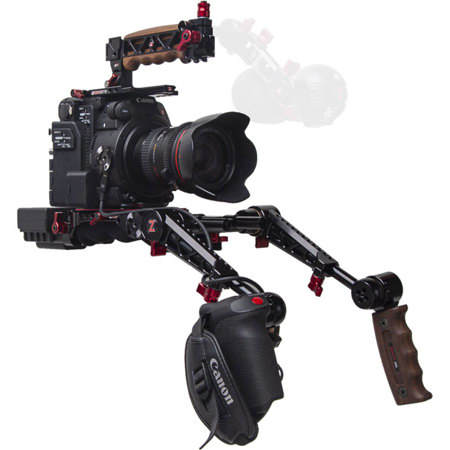

Zacuto Gratical Eye Micro OLED Electronic Viewfinder Bundle for Canon C200 Camera, Includes Rosette Dual Trigger Grips

- - Gratical Eye - -
The Gratical Eye SDI electronic viewfinder is the smallest and lightest of our Micro OLED EVFs. It fits in the palm of your hand and weighs only 14oz. This is an ideal SDI EVF solution for filmmakers using professional cameras and external batteries. The Gratical Eye has a 2 pin LEMO power jack and a single SDI input. A 75Wh battery can power the Gratical Eye for 14 hours! Mount the Gratical Eye to your Next Generation Recoil via the 1/4 20 rosette on the side with an Axis Mini.

The Gratical Eye Micro OLED electronic viewfinder uses an extremely powerful FPGA dual core processor and the latest Micro-OLED displays to provide a hugely expanded contrast range. Our Micro-OLED display supports high pixel density with unparalleled resolution, true blacks, gamma and contrast range. The Gratical Eye has 5.4 million pixels on a 0.61" diagonal screen no bigger than the size of your thumbnail.

You'll be amazed with how sharp the image is. The internal field of view is just the right size so that the image is large, but not so that your eye has to roam to see the entire image at once. It features a built in -1 to +4 diopter range and Zacuto's patented essential anti-fog coating formula. It never fogs in humidity or freezing temperatures. An auto-closing eyecup door prevents sunburn display automatically without any action by the operator. Along with the full suite of Zacuto EVF firmware (full scopes, LUTs, multi level peaking and more), the Gratical Eye has two unique features - an external tally light and a proximity screen saver.

- - Rosette Dual Trigger Grip - -
The Rosette Dual Trigger Grips is a dual handgrip system that relocates the any rosette based camera/lens grip to a comfortable handgrip position for shoulder rigs and gives you a sleek comfortable wooden handgrip on the left side. The Dual Trigger Grip system slides onto 15mm lightweight rods. The Rosette Trigger Grip works with the Canon C200, Canon 18-80 lens grip, Blackmagic URSA, Panasonic Varicam LT or any other Rosette based camera or lens grip.

Our trigger grips are the most adjustable grips available. They allow for single-handed 360 deg. rotation with the simple press of a trigger. The two handles rotate independently of each other. Flip them down for a low, rock-solid handgrip. Raise it up for more of an Aaton style position. Or quickly flip them both all the way up to set your camera flat on the ground or for storing in a case. Or stagger them if that is more comfortable to you. The length of the handgrips can also adjust by loosening a red lever and pulling the grip out or pushing in.

- - VCT Pro Baseplate - -
The VCT Pro baseplate is compatible with all cameras including Canon EOS C-series, Sony FS5/FS5 Mark II and FS7/FS7 Mark II, AJA CION, Blackmagic, Panasonic EVA1, Panasonic Varicam LT, RED cameras, Arri Alexa and Amira, DSLRs, Mirrorless and more The VCT Pro has a built-in, curved shoulder pad and an Arri M6 rosette for accessories and grips.

It comes with quick-release, extendable 6.5" rods at the front and lightweight spaced quick-release rod ports at the back. The v-wedge tripod connector is compatible with VCT14 tripod adapter plates or use the 1/4 20 and 3/8 16 screw holes for direct connect to your tripod quick release plate.

The red sliding top plate offers easy adjust-ability for lens changes, removing your camera and balancing your rig correctly on your shoulder. This sliding plate combined with a double screw track offers 10" of camera balance sliding range. You can quickly release your camera from the rig by sliding the red plate completely off and using our VCT Pro Dock to quickly transition it to a tripod, slider, etc.

The lightweight, adjustable rod mount is set far back in the plate, offering plenty of accessory-capable area under the camera lens. This allows you to position your camera further back on the plate, keeping the balance point of your rig directly over your shoulder. The sliding track of the rod riser offers 25mm of vertical adjustment. (Alternate Tall Rod Riser offering up to 45mm of vertical adjustment - for RED cameras)

The shoulder pad portion of the VCT Universal is set as far forward on the plate as possible, also to maximize your accessory capable rod area and aid with balance. The VCT Universal Baseplate is the core of our Next Generation Recoil rigs, designed for balance and comfort for every camera. Keeping the camera low prevents already tall cameras from being too top heavy. With our VCT, the distance from the bottom of your camera to your shoulder is just 3/4 inch.

- - C200 Top Plate - -
The C200 Top Plate has a built in Z-Rail perfect for adding the Recoil Handle. Or if desired, you can reattach your Canon Handle to the plate. The top plate has a multitude of 1/4 20 and 3/8 16 screw holes for mounting various accessories. At the back of the plate is a 15mm rod port for a Zamerican arm or other 15mm accessory and a grooved mount for the Canon C200 LCD. The Canon LCD can also mount to the built in Z-Rail if needed. If you are using the Zacuto Recoil handle, the C200 LCD can mount into the cold shoe of the Recoil handle with the addition of the C200 LCD Mount.

If you opt to use camera handle and need to mount an Axis for a Gratical EVF, you can mount the Z-Rail Axis mount to the front of your top plate and it will give you a 15mm quick release rod port to mount the Axis Mini, EVF Mount.
