Z CAM E-2 4K Cinema Camera - With Atomos Accessory Kit
See all Z CAM items

Z CAM E-2 4K Cinema Camera - Bundle With Tilta Camera Cage Gray, SmallRig Swivel and Tilt Monitor Mount, Atomos Shinobi 5.2" IPS Touchscreen Monitor, Atomos HDMI to HDMI Cable, Angelbird Match Pack

SKU: ZCE2AT
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Z CAM E-2 4K: Picture 1 regular
Z CAM E-2 4K Cinema Camera
$1,999.00
Z CAM E2C: Picture 1 regular
Z CAM E2C Professional 4K Cinema Camera
$999.00
Z CAM E2-F6: Picture 1 regular
Z CAM E2-F6 Full Frame 6K Cinema Camera, Canon EF Mount
$2,999.00
Z CAM E2-F6 Pro: Picture 1 regular
Z CAM E2-F6 Pro Full Frame 6K Cinema Camera, Canon EF Mount
$3,999.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Z CAM E-2 4K Cinematic Camera Specifications

Camera Features

Camera Features

Jump to...

  • Sensor Type

    4/3" WDR CMOS Sensor

  • Sensor Size

    19.0 x 13.0 mm

  • Effective Pixels

    10.28M

  • Dynamic Range

    13-15 Stops (Z-Log2) / 16 Stops (with WDR activated)

  • Lens Mount

    Micro Four Thirds

  • Microphone

    Built-in Stereo Microphone

Recording

Jump to...

  • Resolution

    4096 x 2160 (C4K) / 3840 x 2160 (4K)
    4096 x 1728 (C4K 2.4:1) / 3840 x 1620 (4K 2.4:1)
    3696 x 2772 / 3312 x 2760
    2704 x 1600 / 1920 x 1080

  • Frame Rate

    59.94 / 50 / 29.97 / 25 / 24 / 23.98 fps

  • Max Variable Frame Rate

    120 fps for 4096 x 2160 (H.265 only)
    120 fps for 3840 x 2160 (H.265 only)
    150 fps for 4096 x 1728 (H.265 only)
    160 fps for 3840 x 1620 (H.265 only)
    160 fps for 2704 x 1600 (H.265 only)
    59.94 fps for 3696 x 2772 (Apple ProRes & H.265)
    59.94 fps for 3312 x 2760 (Apple ProRes & H.265)
    240 fps for 1920 x 1080 (H.265 only)

  • Max Bit Rate

    H.265 / H.264
    300 Mbps for 4096 x 2160 / 3840 x 2160 / 4096 x 1728 / 3840 x 1620 / 3696 x 2772 / 3312 x 2760 / 2704 x 1600
    200 Mbps for 1920 x 1080

    ProRes
    Please check "Apple ProRes White Paper" for the bit rate of ProRes encoding.

  • Color Bit Depth

    10-bit (H.265 & ProRes) & 8-bit (H.264)

  • Video Encoder

    ProRes 422 HQ / ProRes 422 / ProRes 422 LT / ProRes 422
    Proxy / H.265 main 10 profile / H.264 high profile

  • Audio Format

    24-bit 48 kHz

  • Audio Encoder

    AAC / PCM (for MOV only)

  • File Format

    MOV / MP4

  • Record Mode

    Video / Time Lapse Video

Settings

Jump to...

  • ISO

    Auto, Manual (500 - 102400 / 250 - 51200 with WDR activated), Native ISO: 250 / 2500 (250 / 1250 with WDR activated)

  • Shutter

    Shutter Speed: Auto, Manual (up to 1/8000") or Shutter Angle: Auto, Manual (1 Degree - 360 Degree )

  • White Balance

    Auto, Preset, Manual (2300K - 7500K)

  • Focus Mode

    MF / AF / CAF

  • Image

    Brightness / Contrast / Saturation / Sharpness

  • Image Profile

    Rec.709 / Z-Log2 / FLAT / HLG

  • Audio

    Audio In / Out Level

  • Time Code

    Current Time / Manual Input / External Input

Storage

Jump to...

  • Media

    CFAST 2.0

  • File System

    exFAT

Connectivity

Jump to...

  • HDMI

    HDMI 2.0 Type A (video output up to C4K @60fps)

  • USB

    USB 3.0 Type C for camera control & data transfer only

  • I/O

    10-pin LEMO port for synchronization (requires additional Sync Cable, not included)

  • COM

    DB-9 connector, supports RS-232

  • Remote Control

    2.5 mm jack socket (Sony LANC compatible)

  • Audio-in

    3.5 mm stereo jack socket for active microphone only, or 5-pin LEMO port for dual channel XLR microphone (requires additional XLR audio connector)

  • Audio-out

    3.5 mm stereo jack socket

  • Wi-Fi

    802.11n, 2.4G with external antenna port

  • Ethernet

    Gigabit Ethernet port for control, setting & live streaming

Power

Jump to...

  • Battery

    Sony NP-F series compatible (Battery not included)

  • External Power Supply

    DC 12V 5A (4-pin LEMO socket), with LEMO connector and AC/DC power adapter

Environment

Jump to...

  • Storage Temperature

    -4 to 140 Degree F (-20 to 60 Degree C)

  • Operation Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Physical

Jump to...

  • Material

    Aluminum Alloy

  • Dimensions (W x H x D)

    3.59 x 3.91 x 3.51" (91.2 x 99.2 x 89.1mm) (without lens)

  • Weight

    1.67 lb (757g) (without lens)

Other

Jump to...

  • UPC Codes

    192223116566 | 841687100061 | 631384549719 | 6972070629884 | 814164021265 | 814164020619 | 812937023317

36 Accessories for Z CAM E-2 4K Cinema Camera - Bundle With Tilta Camera Cage Gray, SmallRig Swivel and Tilt Monitor Mount, Atomos Shinobi 5.2" IPS Touchscreen Monitor, Atomos HDMI to HDMI Cable, Angelbird Match Pack

  • All Accessories (36)
  • Digital Cinema Lenses (6)
  • Lenses (8)
  • Memory & Storage (2)
  • Batteries & Power Supply (4)
  • Lens Adapters (5)
  • Camera Cages and Rigs (2)
  • Cables & Adapters (1)
  • Bags & Cases (2)
  • Monitor & Recorder (1)
  • Adapters & Mounts (2)
  • Lens Adapters & Converters (2)
  • Filter and Filter Kits (1)
Panasonic LUMIX G Vario 7-14mm f/4 Aspherical Lens for Micro Four Thirds
Panasonic LUMIX G Vario 7-14mm f/4 Aspherical Lens for Micro Four Thirds
$897.99
Recommended
Rokinon 50mm T1.5 Cine DS Lens for Micro Four Thirds
Rokinon 50mm T1.5 Cine DS Lens for Micro Four Thirds
$449.00
Venus Laowa 9mm f/2.8 Zero-D Prime Lens for Micro Four Thirds
Venus Laowa 9mm f/2.8 Zero-D Prime Lens for Micro Four Thirds
$399.00
Panasonic LUMIX G 25mm f/1.7 Aspherical Lens for Micro Four Thirds
Panasonic LUMIX G 25mm f/1.7 Aspherical Lens for Micro Four Thirds
$297.99
Panasonic LUMIX G 42.5mm f/1.7 Aspherical Lens for Micro Four Thirds
Panasonic LUMIX G 42.5mm f/1.7 Aspherical Lens for Micro Four Thirds
$497.99
SanDisk Extreme PRO 256GB CFast 2.0 Memory Card
SanDisk Extreme PRO 256GB CFast 2.0 Memory Card
$369.99
Green Extreme NP-F970 Battery Pack
Green Extreme NP-F970 Battery Pack
$54.95
Sony L Series Super Quick Twin-Charger Adapter
Sony L Series Super Quick Twin-Charger Adapter
$219.99
Yongnuo YN-750C Battery Charger for Sony L Series Camcorders
Yongnuo YN-750C Battery Charger for Sony L Series Camcorders
$19.99
Rode VC1 10 feet Stereo Mini Jack Extension Cable
Rode VC1 10 feet Stereo Mini Jack Extension Cable
$18.00
Think Tank Retrospective 10 V2.0 Medium Shoulder Bag, Pinestone Cotton Canvas
Think Tank Retrospective 10 V2.0 Medium Shoulder Bag, Pinestone Cotton Canvas
$199.75
Atomos 7" Shogun HDR Classic Monitor-Recorder-Switcher
Atomos 7" Shogun HDR Classic Monitor-Recorder-Switcher
$1,199.00

About Z CAM E-2 4K Cinematic Camera

Z Camera App (iOS & Android)
Z Camera is a mobile application for camera live preview and control through Wi-Fi / USB cable connection. It can control the camera to start/stop recording and adjust the camera settings, also it has advanced features on camera live preview. It can be downloaded from Apple App Store or Google Play Store by searching "Z Camera".

LUTs & Color Correction
Download our LUTs and color correction plug-in to color grade your video project. You can easily adjust the exposure and white balance and apply a vintage or cinematic look! Supported on both Windows PC and Mac OS.

Z CAM E-2 4K Cinematic Camera Features

  • 4K @160fps, 10-bit color
  • 4/3" WDR CMOS sensor
  • 13-15 stops dynamic range (16 stops with WDR enabled)
  • Apple ProRes certified
  • Gigabit Ethernet for data, control & live streaming
  • Multi-cam synchronization

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • E2 4K Cinematic Camera
  • LEMO Power Cable with D-TAP Plug
  • D-TAP Connector
  • AC/DC Power Adapter
  • Power Cables
  • Lens Mount Cap
  • Quick User Guide
  • Warranty Card
  • Tilta Full Camera Cage Gray
  • - SmallRig Swivel and Tilt Monitor Mount with Cold Shoe
  • Atomos Shinobi 5.2 " IPS Touchscreen Full HD H-DR Photo and Video Monitor
  • Atomos HDMI Full to HDMI Full Coiled Cable 30cm/12 " Coiled

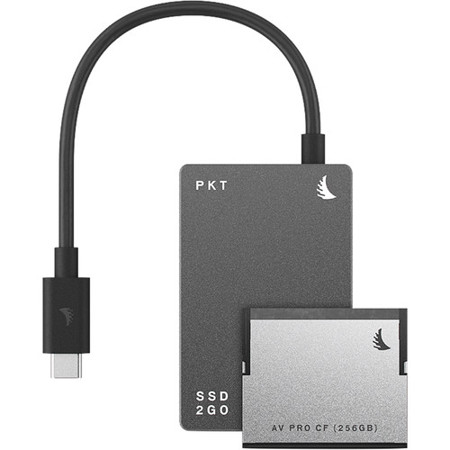

  • Angelbird Match Pack Includes 512GB SSD2GO PKT
  • 256GB AV PRO CF
