Z CAM E2-F8 Specifications

Camera Features

Camera Features

Jump to...
  • Sensor Type

    Full Frame CMOS Sensor

  • Sensor Size

    35.97 x 23.98 mm

  • Effective Pixels

    61M

  • Dynamic Range

    14 Stops

  • Lens Mount

    EF

  • Microphone

    Built-in Stereo Microphone

Recording

Jump to...
  • Resolution & Max Frame Rate

    8192x3456 @30fps (DCI 8K 2.4:1)
    7680x4320 @30fps (8K UHD)
    6144x3240 @30fps max (DCI 6K)
    5760x3240 @30fps max (6K UHD)
    3840x2160 @30fps max (4K UHD)

  • Max Bit Rate

    300 Mbps for all resolutions (H.265 & H.264)

  • Color Bit-depth

    10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)

  • Video Encoder

    H.265 main 10 profile / H.264 high profile

  • Audio Format

    24-bit 48 kHz

  • Audio Encoder

    AAC / PCM (for MOV only)

  • File Format

    MOV / MP4

  • Record Mode

    Video / Time Lapse Video

Settings

Jump to...
  • ISO

    Auto, Manual (400 - 125000), Dual Native ISO: 400 / 1250

  • Shutter

    Shutter Speed: Auto, Manual (up to 1/8000") or Shutter Angle: Auto, Manual (1 Degree - 360 Degree )

  • White Balance

    Auto, Preset, Manual (2300K - 7500K)

  • Focus Mode

    MF / AF / CAF

  • Image

    Brightness / Contrast / Saturation / Sharpness

  • Image Config

    Rec.709 / Z-Log2 / FLAT / HLG

  • Audio

    Audio In / Out Level

  • Time Code

    Current Time / Manual Input

Storage

Jump to...
  • Media

    CFAST 2.0

  • File System

    exFAT

Connectivity

Jump to...
  • HDMI

    HDMI 2.0 Type A (video output up to C4K @ 60fps, 10-bit 4:2:2)

  • USB

    USB 3.0 Type C for camera control & data transfer only

  • COM

    2 x Serial Port

  • Remote Control

    2.5 mm jack socket (Sony LANC compatible)

  • Audio-in

    3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)

  • Audio-out

    3.5 mm stereo jack socket

  • Wi-Fi

    5G, 802.11n with external antenna port

  • Ethernet

    Gigabit Ethernet port for control, setting & live streaming

  • Battery

    Sony NP-F series compatible (Battery not included)

  • Power Input

    DC 12V (2-pin LEMO socket), with LEMO connector

  • Power Output (AUX)

    DC 12V (2-pin LEMO socket)

Environment

Jump to...
  • Storage Temperature

    -4 to 140 Degree F (-20 to 60 Degree C)

  • Operation Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Physical

Jump to...
  • Material

    Aluminum Alloy

  • Dimensions (W x H x D)

    3.59 x 3.9 x 3.9" (91.2 x 99.2 x 99.1mm) (without lens)

  • UPC Code

    841687100412

56 Accessories for Z CAM E2-F8 Professional Full-Frame 8K Cinema Camera, EF Mount

  • All Accessories (56)
  • Lenses (29)
  • Memory & Storage (1)
  • Batteries & Power Supply (7)
  • Cables & Adapters (2)
  • Bags & Cases (2)
  • Monitor & Recorder (1)
  • Microphones & Audio (2)
  • Camera Cages and Rigs (1)
  • Digital Cinema Lenses (7)
  • Adapters & Mounts (2)
  • Lens Adapters & Converters (1)
  • Filter and Filter Kits (1)

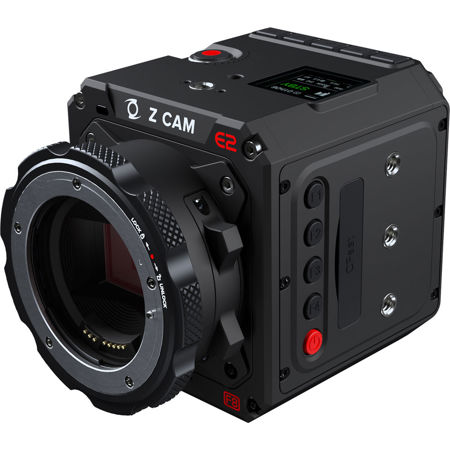

About Z CAM E2-F8

The Z CAM E2-F8 Full-Frame 8K Cinema Camera with Canon EF Mount enables you to shoot professional high-definition cinema footage. The camera's full-frame sensor with 10-bit 4:2:2 color support and nominal 14 stops of dynamic range supports timecode, shoots up to 8K at up to 30 fps, and records data up to 300 Mb/s onto CFast 2.0 media. Teh camrea supports multiple recording formats including ZRAW format, MOV and MP4 using H.265 for 10-bit recording, while H.264 supports 8-bit recording. Its HDMI 2.0 port supports 4K60, 10-bit 4:2:2 video output, and records audio in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only) through its 3.5mm stereo jack or via a separately available XLR connector using its 5-pin LEMO port. Firmware 0.88 allows the camera to record in the ZRAW format. The camera can record time-lapse, slow motion, and can even live stream via its Gigabit Ethernet port. You can also control it locally by the buttons along the side of the camera.

The E2-F8 features serial ports, a 2.5mm LANC connector, a USB Type-C port, Ethernet port. Additionally, it can be controlled via Wi-Fi through the Z Camera iOS app. The camera features a 12 VDC 2-pin LEMO power output to provide power to separately available accessories. Additionally, the camera can be powered by a separately available battery using the built-in L-series battery mount, or you can power the camera using a separately available power adapter using its 2-pin LEMO port.

Z CAM E2-F8 Features

  • 8K resolution
  • Full Frame CMOS sensor
  • Dual native ISO
  • ZRAW supported
  • EF lens mount
  • Gigabit Ethernet for data, control & live streaming

Product Documents

User Manual

Key Features

  • 8K resolution
  • Full Frame CMOS sensor
  • Dual native ISO
  • ZRAW supported
  • EF lens mount
  • Gigabit Ethernet for data, control & live streaming

What's in the box:

  • E2-F8 Professional Full-Frame 8K Cinema Camera (EF Mount)
  • LEMO Power Cable
  • AC/DC Power Adapter
  • Lens Mount Cap
  • Z CAM 1 Year Limited Warranty
