Zacuto Z-Finder Recoil Pro Rig for Sony Burano Camera

SKU: ZCSBRP2 MFR: Z-SBR-P2
Earn VIP Reward Points

Key Features

  • Enhance stability with this Zacuto rig, designed specifically for Sony Burano cameras.
  • Achieve perfect focus using the included Z-Finder Viewfinder, a must-have camera support.
  • Enjoy versatile accessory mounting with multiple 1/4"-20 and 3/8"-16 threads on this rig.
  • Quickly switch between tripod and shoulder mount with the VCT Pro Baseplate feature.
  • Experience exceptional durability with the aluminum and metal build of this camera rig.
  • Customize your setup using the adjustable side rails and tactical handle for comfort.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-08-31T08:27:08

Rated 3 out of 5

Its ok

Its ok and does ok

MARTIN S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Zacuto Recoil Pro Rig Specifications

VCT Pro Baseplate

VCT Pro Baseplate

Jump to...
  • Support Type

    Shoulder Support

  • Grip Type

    No

  • Camera Compatibility

    Universal

  • Rod Standard

    15mm LWS / 60mm Spacing

  • Included Rods

    2x 6.5" (16.5cm) 15mm Rod

  • Accessory Mounting

    Side: 3x 1/4"-20 Female Thread

  • Camera Mounting

    Quick Release Plate with 1/4"-20 Male Screw, 3/8"-16 Male Screw

  • Tripod Mounting

    1/4"-20 Female Thread, 3/8"-16 Female Thread, VCT-14

  • Rod Ports

    2x 15mm Rod Port

  • Rosettes

    Side: 1x ARRI Rosette w/ M6 Female Thread

  • Dimensions

    14.25 x 4.25 x 2" (36.2 x 10.8 x 5cm) (with Rods)

  • Weight

    2.1 lbs (0.96kg)

Z-Finder Viewfinder

Jump to...
  • Color

    Black

  • Compatibility

    Sony Burano Camera

  • Mounting

    1x Frame

Top Plate

Jump to...
  • Material

    Metal

  • Material

    Metal

  • Compatibility

    Zacuto Tactical Handle
    Sony Original Top Handle

  • Mounting

    Multiple x 15mm Rod Ports
    Multiple x Accessory Threads
    1x NATO Rail

Tactical Handle

Jump to...
  • Attachment Method

    Attaches via Rail Clamp

  • Rod Standard

    15mm Single Rod

  • Rod Ports

    1x 15mm Rod Port

  • Accessory Mounting

    Multiplex 1/4"-20 Thread
    Multiplex 3/8"-16 Thread

  • Shoe Mounting

    1x Built-In Cold Shoe Slot

  • Rosettes

    No

  • Rail Mounting

    1x NATO / Z-Rail Clamp

Side Rails

Jump to...
  • Color

    Black

  • Material

    Aluminum

  • Compatibility

    Zacuto VCT Baseplate for Sony Burano Camera / Top Plate for Sony Burano Camera

  • Mounting

    Multiple x 1/4"-20 Threads
    Multiple x 3/8"-16 Threads
    2x Rosette with M6 Thread

About Zacuto Recoil Pro Rig

It's time to elevate your photography experience with the Z-Finder Recoil Pro Rig, specifically designed for the Sony Burano camera. This next-generation Recoil rig is engineered for optimal balance and comfort, whether you're shooting from the shoulder or using a tripod.

The Recoil rig cleverly adjusts for the balance point, where the lens meets the camera body, and relocates focus, monitoring, and camera controls forward. This creates a lighter, shorter, and properly balanced rig, making it an essential tool for professional photographers.

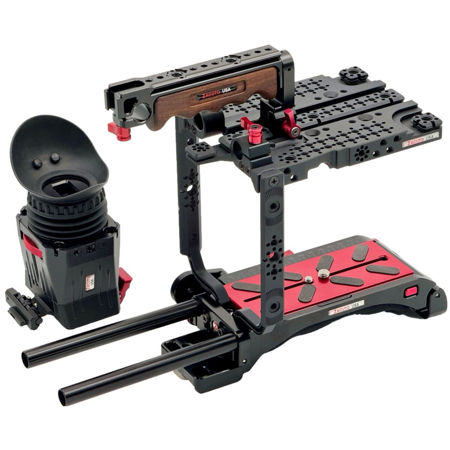

The Sony Burano Z-Finder Recoil shoulder-mounted rig includes a VCT Pro baseplate, the Burano Top Plate, Side Plates with Tactical Handle, and Burano Z-Finder. This configuration is perfect for shoulder mounting the Burano and utilizing the Sony LCD screen as a viewfinder.

The VCT Pro baseplate features a sliding top plate for quick camera removal or lens changes, a built-in, curved shoulder pad, a v-wedge tripod connector, and removable and extendable 6.5" iris rods. It also has rows of 1/4" 20 screw holes along the sides for accessories and quick release 15mm rod parts in the rear.

The Burano Top Plate and Side Plates come with a Tactical Handle, a top Plate with 15mm rod ports, integrated NATO Rail, and many mounting holes on the top and sides. The Zacuto wooden tactical top handle is lighter than the Sony handle and offers more mounting capabilities like a cold shoe, NATO Rail, and more.

The Sony Burano Z-Finder comes with a flip-up frame designed to slide into the Sony Burano hinge on the LCD. The Z-Finder magnifies the LCD screen by 2.5x and has a diopter for specific focus tuning. It cuts out any extraneous light and offers an initial point of stability by pressing your eye against the large, comfortable eyecup.

The VCT Pro camera baseplate is compatible with a wide range of cameras, including Canon EOS C-series, Sony FX6, FS7/FS7 Mark II, Sony FX9, AJA CION, BlackMagic, Panasonic EVA1, Panasonic Varicam LT, RED cameras, Arri Alexa, DSLRs, Mirrorless, and more.

The Z-Finder Viewfinder, specifically designed to work with the monitor included with the Sony Burano camera, replaces the Sony viewfinder piece, allowing you to quickly flip up the Z-Finder and use it as a monitor or EVF without the need to change the direction of the monitor.

The Top Plate, Tactical Handle, and Side Rails further enhance the functionality of the rig, offering multiple mounting options for accessories. The Sony Burano Side Rails Cage mount to the Burano Top Plate and VCT Baseplate, providing NATO rails for mounting handgrips and accessories.

In conclusion, the Z-Finder Recoil Pro Rig for Sony Burano Camera is a comprehensive solution for professional photographers, offering superior balance, comfort, and versatility.

Zacuto Recoil Pro Rig Features

  • VCT Pro Baseplate
  • One Arri M6 rosette on right side of VCT Pro
  • Two quick-release rod ports in the back
  • Wide gel-polymer shoulder pad
  • One 1/4"-20 & 3/8"-16 removable screws included
  • Lightweight adjustable rod mount
  • Over 10" of camera balance sliding range
  • Up to 25mm of vertical adjustment
  • Unique sliding top plate to quickly adjust for lens changes or to release the camera from your rig
  • Unique design creates more accessory rod capable area
  • V-wedge style tripod connector or directly mount your tripod plate via 1/4 20 & 3/8 16 screw holes
  • 1/4"-20 screw holes along the side for accessory mounting options
  • Z-Finder Viewfinder
  • Specifically designed to work with the monitor included with the Sony Burano camera
  • Replaces the Sony viewfinder piece for easy switching between monitor and EVF modes
  • Slides and locks into the Sony monitor mechanism with a hinge
  • Has a red lever to quickly flip up the Z-Finder without removing it from the frame
  • Magnifies the LCD screen by 2.5x with a 40mm Zacuto optical lens
  • Has a diopter for specific focus tuning and a large eyecup for stability and comfort
  • Comes with anti-fog coated protective covers and a mounting system designed for the Burano
  • Includes Z-Finder Extender Frames and drop in diopters for extra focal adjustment
  • Has an aluminum sun mask to protect the LCD screen from sunlight
  • Top Plate
  • Compatible with the Sony Burano camera and handle
  • 3 Mounting positions for the Sony handle for optimal placement
  • Integrated NATO rail on top for mounting the Tactical Handle
  • Can slide forward/back for balance adjustment
  • Coldshoe slots in the back for mounting accessories
  • Bi-directional NATO rail mounts for mounting Sony's LCD or other viewfinders
  • Has multiple screw holes and rod locks for mounting top rails
  • Tactical Handle
  • Can be used as a top handle, left hand grip, or right hand grip
  • A slim and ergonomic design that fits your hand
  • Z-Rail (NATO rail) with multiple screw holes, a coldshoe mount, and a 15mm rod port for mounting accessories
  • Z-Rail lock that can be oriented in different directions and a ratcheting lever for easy switching between modes
  • Works with the ACT Recoil Shoulder Rig and the Zacuto DSLM or DSLM Cage
  • Side Rails
  • Side Rails Cage mount to the Burano Top Plate and VCT Baseplate
  • Side Rails are NATO rails for mounting handgrips and accessories

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Enhance stability with this Zacuto rig, designed specifically for Sony Burano cameras.
  • Achieve perfect focus using the included Z-Finder Viewfinder, a must-have camera support.
  • Enjoy versatile accessory mounting with multiple 1/4"-20 and 3/8"-16 threads on this rig.
  • Quickly switch between tripod and shoulder mount with the VCT Pro Baseplate feature.
  • Experience exceptional durability with the aluminum and metal build of this camera rig.
  • Customize your setup using the adjustable side rails and tactical handle for comfort.

What's in the box:

  • VCT Pro Baseplate
  • Z-Finder Viewfinder
  • Top Plate
  • Tactical Handle
  • 2x Side Rails
  • Zacuto Lifetime Limited Warranty
