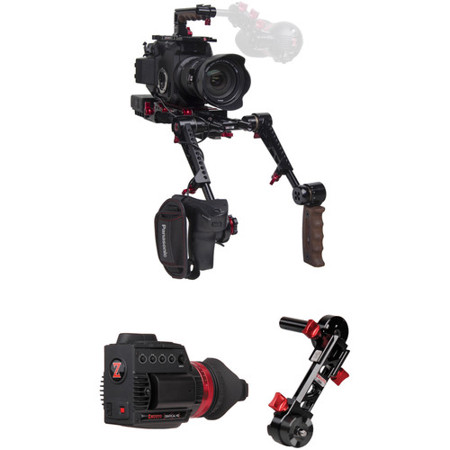

Zacuto EVA1 EVF Recoil Pro with Dual Trigger Grips Axis Mini & Gratical HD

The EVA1 EVF Recoil Pro with Dual Trigger Grips Gratical HD Bundle is a shoulder rig designed specifically for the Panasonic EVA1. This is a Next Generation Recoil rig designed for optimal balance and comfort when shoulder mounted or on a tripod. With lenses and cameras being similar weights, the balance point is where the lens meets the camera body. The Recoil rig adjusts for that balance point and relocates focus, monitoring and camera controls forward, creating a lighter, shorter and properly balanced rig.

The Gratical HD Micro OLED electronic viewfinder uses an extremely powerful FPGA dual core processor and the latest Micro-OLED displays to provide a hugely expanded contrast range. Our Micro-OLED display supports high pixel density with unparalleled resolution, true blacks, gamma and contrast range. The Gratical HD has 5.4 million pixels on a 0.61" diagonal screen no bigger than the size of your thumbnail.

The Gratical HD includes two HDMI and two SDI ports with cross conversion from HDMI to SDI. Weather resistant covers prevent moisture or debris from getting in open ports.

The Axis Mini is the most adjustable ENG style mount for rosette mounted EVFs, giving you full 360 Degree motion with four adjustment points.

VCT Pro - this baseplate has a sliding top plate for quickly removing the camera from the rig or fast len changes, a built-in, curved shoulder pad, a v-wedge tripod connector (with 1/4" 20 and 3/8" 16 screw option). It has removable and extendable 6.5" iris rods and rows of 1/4" 20 screw holes along the sides for accessories.

EVA1 Dual Trigger Grip- relocates the Panasonic EVA1 camera grip to a comfortable handgrip position for shoulder rigs. Flip it down for a low, rock-solid handgrip. Includes second wooden handgrip. Or quickly flip them both all the way up to set your camera flat on the ground or for storing in a case. The length of the handgrips can also adjust by loosening a red lever and pulling the grip out or pushing in.

Top Handle with 15mm Rod Lock - This slim Top Handle has multiple 1/4 20 and 3/8 16 screw holes for mounting various accessories. The 15mm Rod Lockgives a side facing rod port for mounting the Axis Mini or a Zamerican arm.

EVA1 Top plate - The EVA1 Top Plate has a built in Z-Rail perfect for adding the Zacuto Top Handle or Recoil Handle. Or if desired, you can reattach your Panasonic camera Handle to the plate. The top plate has a multitude of 1/4 20 and 3/8 16 screw holes for mounting various accessories. At the back of the plate is a 15mm rod port for a Zamerican arm or other 15mm accessory- perfect for relocating the Panasonic LCD on an articulating arm.
