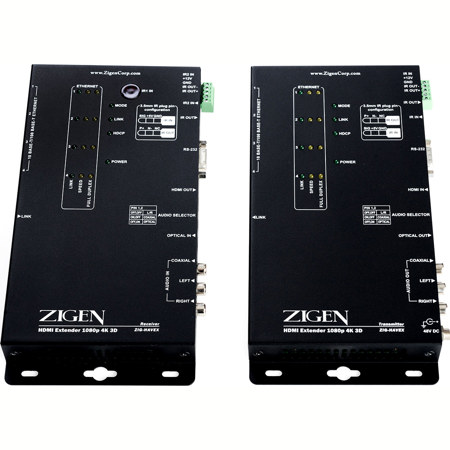

Zigen 100m HDbaseT HDMI Extender Set over Single Cat 5a/6/7, 1080p at 60Hz, 3D, 4Kx2K

The Zigen 100m HDbaseT HDMI Extender Set for long distance transmission of HDMI video, embedded audio, 4-port POE Ethernet switch, back channel analogue or digital audio plus bi-directional control signals over a single CAT - 6/7 type cable. It can be used as a point-to-point solution or integrated with matrix routing equipment to extend inputs or outputs to remote locations.

The transmitter and receiver kit supports simultaneous transmissions of digital or analogue audio back channel, simultaneous transmissions of full duplex 10 / 100 Ethernet and simultaneous transmission of bi-directional RS-232 and IR signals from a control system providing remote control to source equipment or displays. It comes equipped with dual voltage IR receiver / emitter ports for screw or 3.5mm in /out.
