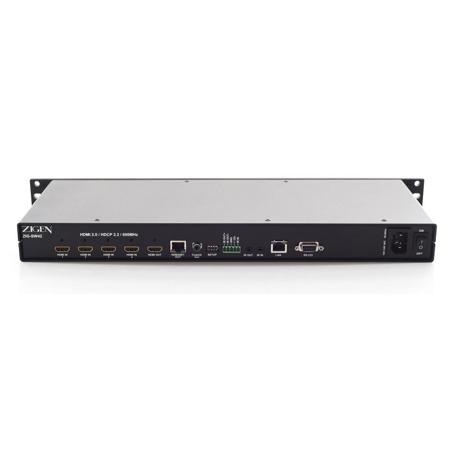

Zigen ZIG-SW42 HDMI 2.0 4x1 Switch with Mirrored HDBaseT Long Distance CAT

600 MHz HDMI switch designed for switching in home and commercial environments where switching of high-bandwidth UHD (2160P60 4:4:4) content is required - or just to be safe for future sources including the "new blu" coming this fall (2015). The SW42 features 4 HDMI 2.0 Inputs and 1 HDMI 2.0 output, digital audio de-embedding of active channel and an Ethernet port and WebOS for setup, switching, EDID management, firmware updates and remote reset. Additionally, the SW42 is controllable via built in IR receiver or RS-232. The SW42 also has a mirrored HDBaseT 100 meter port (single CAT5e of higher). SW42 also routes Ethernet and is compliant with the entire Zigen ecosystem of products by routing network commands and control in receiver nodes.

• HDMI 2.0 (600 MHz UHD) on all HDMI ports
• WebOS Interface
• Supports digital video formats up to 4K UHD (2160P60 at 4:4:4 pixel format)
• Supports digital video formats up to 4K UHD 2160P60 at 4:2:0 8-bit on HDBaseT port
• Advanced EDID management
• Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio and more.
• Built in IR sensor plus 3.5mm jack and remote control
• IR In and Out jacks plus locking style (phoenix) connector 3-12VDC - works with everything!
• Bi-directional RS-232 - Control switch or integrate 3rd party control
• SPDIF for audio de-embedding
• Dual Power Supply

Typical Applications
• Classrooms, Boardrooms, Conference rooms for switching UHD content sources via multiple control options (3rd party controllers, WebOS, simple remote or front panel buttons)
• High-end home theaters for showing UHD 2.0 content with HDCP 2.2 copy protection
• Long distance applications where the rack is up to 100 meters from the display
