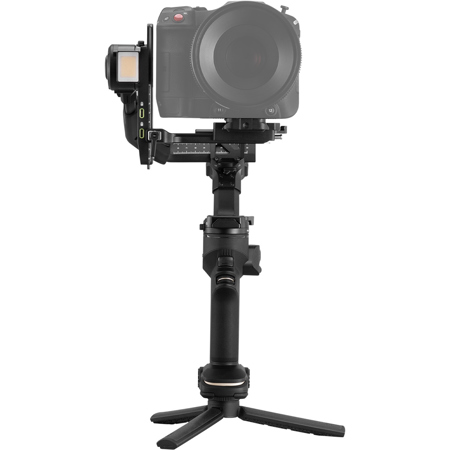

Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer Standard Kit

SKU: ZHC20128ABR1 MFR: C020128ABR1
Earn VIP Reward Points

Key Features

  • Capture smooth, professional video with the Zhiyun CRANE 4's enhanced stabilization system.
  • Enjoy extended shooting sessions with a 12-hour battery life on this handheld gimbal stabilizer.
  • The CRANE 4 supports various cameras, including DSLRs and mirrorless, up to 13.2 lbs (6kg).
  • Easily control settings via the intuitive touchscreen LCD for seamless video creation.
  • Compact and lightweight at 3.68 lbs, this 3-axis gimbal is great for travel and on-the-go filming.
  • Use the ZY Play app for remote control and firmware updates to maximize your gimbal's potential.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Zhiyun CRANE 4 Specifications

Grip Design

Grip Design

Jump to...
  • Grip Design

    Single Handgrip

  • Load Capacity

    13.2 lbs (6kg)

  • Number of Axes

    3-Axis (Pitch (Tilt), Roll, Yaw (Pan))

  • Rotation Range

    Mechanical Range:
    Pitch (Tilt): 214 Degree (-72 to 142 Degree)
    Roll: 322 Degree (-251 to 71 Degree)
    Yaw (Pan): 360 Degree

    Controllable Range:
    Pitch (Tilt): 207 Degree (-71 to 136 Degree)
    Roll: 70 Degree (-35 to 35 Degree)
    Yaw (Pan): 360 Degree Unlimited

Compatibility

Jump to...
  • Camera Control

    Sony:
    A1; A9; A9II; A9M2; A7M2; A7R2; A7S2; A7M3; A7M4; A7R3; A7S3; A7R4; A7R5; A7C; FX6; ILME-FX3

    Nikon:
    D850; D780; D810; D750; D610; D7500; D6; Z9; Z8; Z50; Z5; Z6; Z6II; Z7; Z7II

    Canon:
    1DX MARK III; IDX MARK II; 5DS; 5DS R; 5D MARK III; 5D MARK IV; 6D MARK II; 6D; 90D; 80D; 850D; 800D; 200D II; EOS R; R5; R6; R5C; R7; R8; R50; R10; RP; C70

  • Camera Control (Contd.)

    Panasonic:
    G9; GH5S; GH5; GH6; DC-BGH1; S5; S1; S1H

    Fujifilm:
    X-H1; X-T3; X-T4; X-T5; X-H2S

    ZCAM:
    E2C; E2; E2 F6

    SIGMA:
    FP

    BMPCC:
    4K; 6K; 6K PRO

  • Camera Mounting Screw

    3x 1/4"-20 Male

Connectivity

Jump to...
  • Inputs/Outputs

    1x USB-C (Power / Firmware Updates)
    1x USB-C (Control / Video)
    2x USB-C (Control)

  • Wireless Frequency

    2.4 GHz

  • Wireless Protocol

    Bluetooth 5.0

  • Mobile App Compatible

    Yes: Android & iOS
    App Name: ZY Play
    Functionality: Adjust Settings, Firmware Update, Remote Control, Setup

  • Operating Voltage

    11.0 to 16.8 VDC

  • Operating Current

    200 to 14500 mA

Environmental

Jump to...
  • Operating Temperature

    14 to 77 Degree F (-10 to 25 Degree C)

Battery

Jump to...
  • Battery Capacity

    2600 mAh

  • Battery Runtime

    12 Hours

  • Battery Charging Time

    1.5 Hours

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

General

Jump to...
  • Display Type

    Fixed Touchscreen LCD

  • Mounting

    4x 1/4"-20 Female

  • Dimensions

    13.4 x 11 x 2.8" (340 x 280 x 70mm)

  • Weight

    Without Tripod: 3.68 lbs (1.67kg)

  • UPC Code

    191493003507

Related Articles & Videos

Mastering Stability: Choosing the Right Gimbal Camera Stabilizer

Mastering Stability: Choosing the Right Gimbal Camera Stabilizer

Stability is key whether you're capturing breathtaking landscapes, filming fast-paced action scenes, or creating captivating vlogs. Shaky footage can detract from your final product. Gimbals are ingenious devices that provide smooth and steady motion, allowing you to achieve professional-looking sho...
Read more

Designed For Use With:

  • Medium Camcorder
  • DSLR
  • Mirrorless Cameras
  • Small Camcorder

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Zhiyun CRANE 4

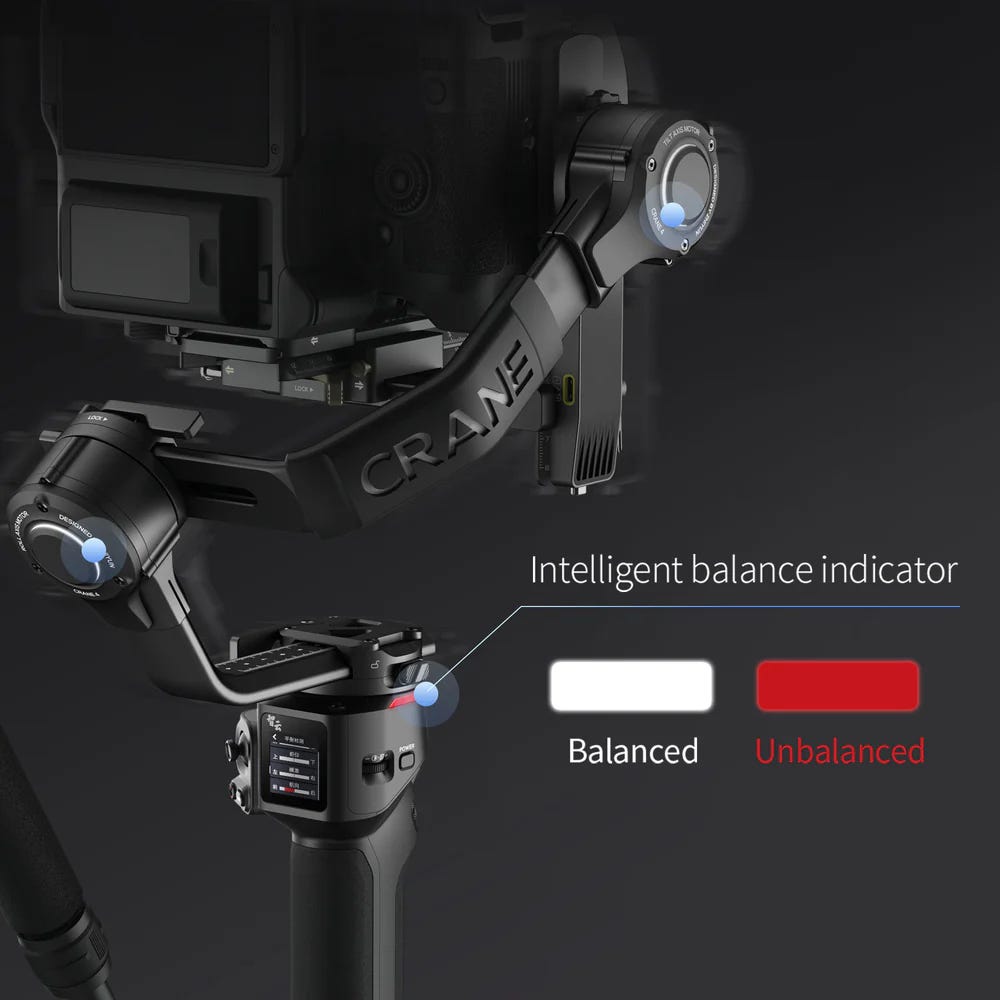

New intelligent Balance Indication

Balance indicator lights added to the motors provide a timely reminder for precise balance calibration. If it is not levelled, the corresponding shaft motor balance indicator will provide the corresponding reminder light effect.

New intelligent Balance Indication

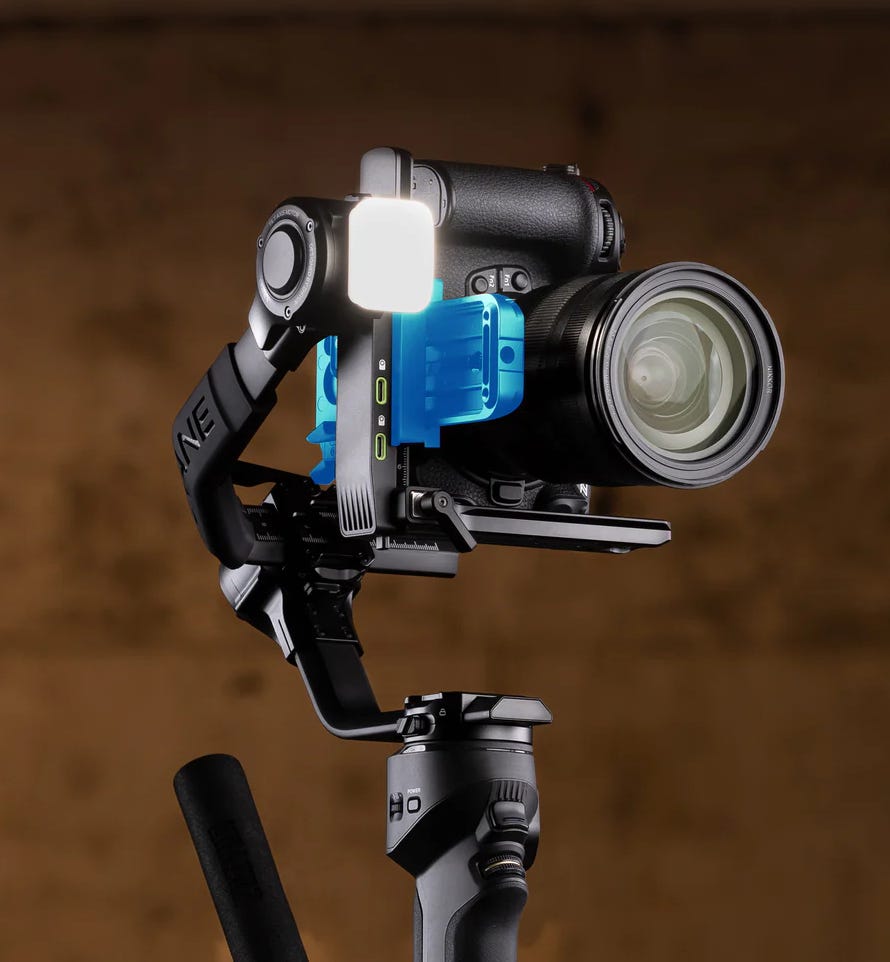

Freely Switch Between Horizontal & Vertical Shots

Boasts an innovative quick-release module that integrates horizontal and vertical lock structure, enabling effortless switching between native landscape and portrait shooting modes.

Freely Switch Between Horizontal & Vertical Shots

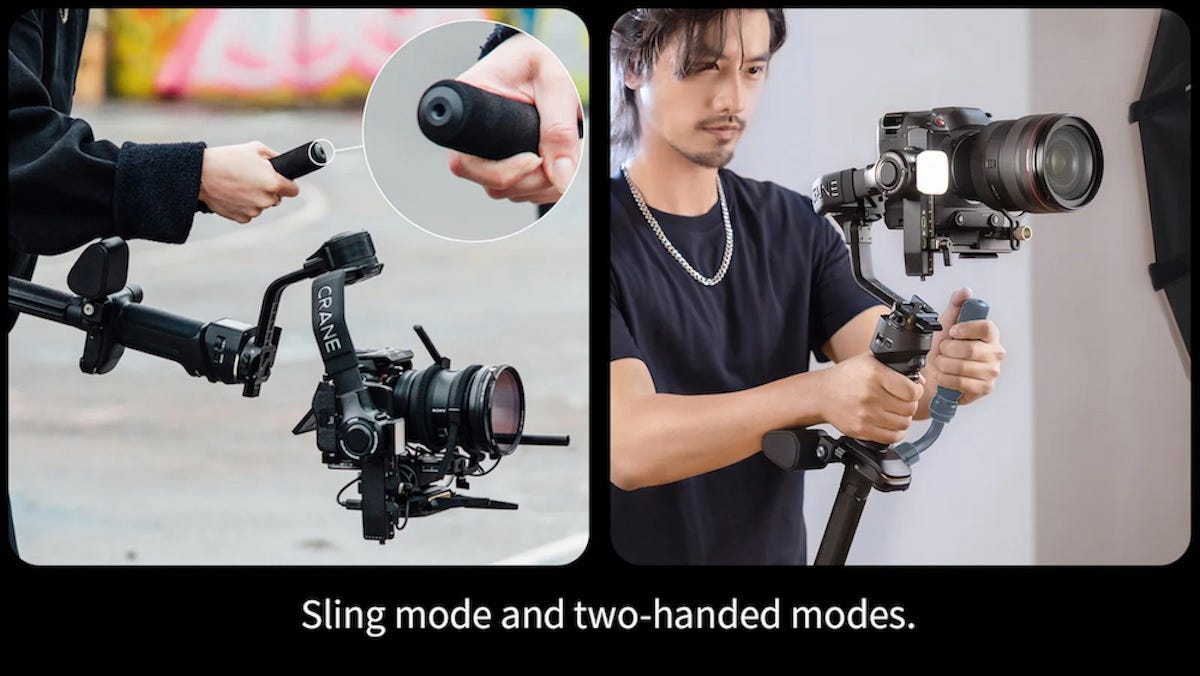

Versatile Sling Grip

The extendable sling grip can be adjusted to the gimbal's central axis, allowing for easy switching between sling mode and two-handed modes. The 1/4" screw hole on the grip unlocks more combination possibilities of lights and accessories.

Versatile Sling Grip

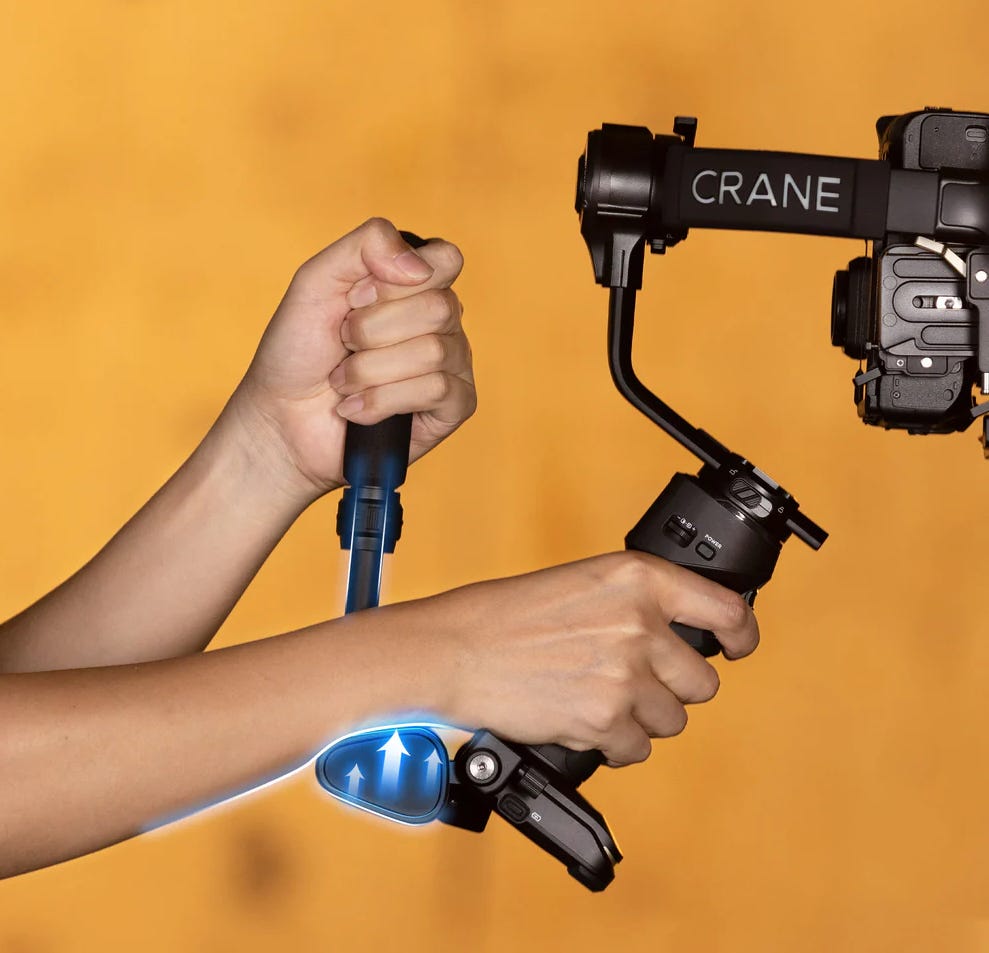

Upgraded Wrist Rest

The flexible wrist rest structure features energy-saving adjustment and skin-friendly texture, making creation effortless and comfortable.

Upgraded Wrist Rest

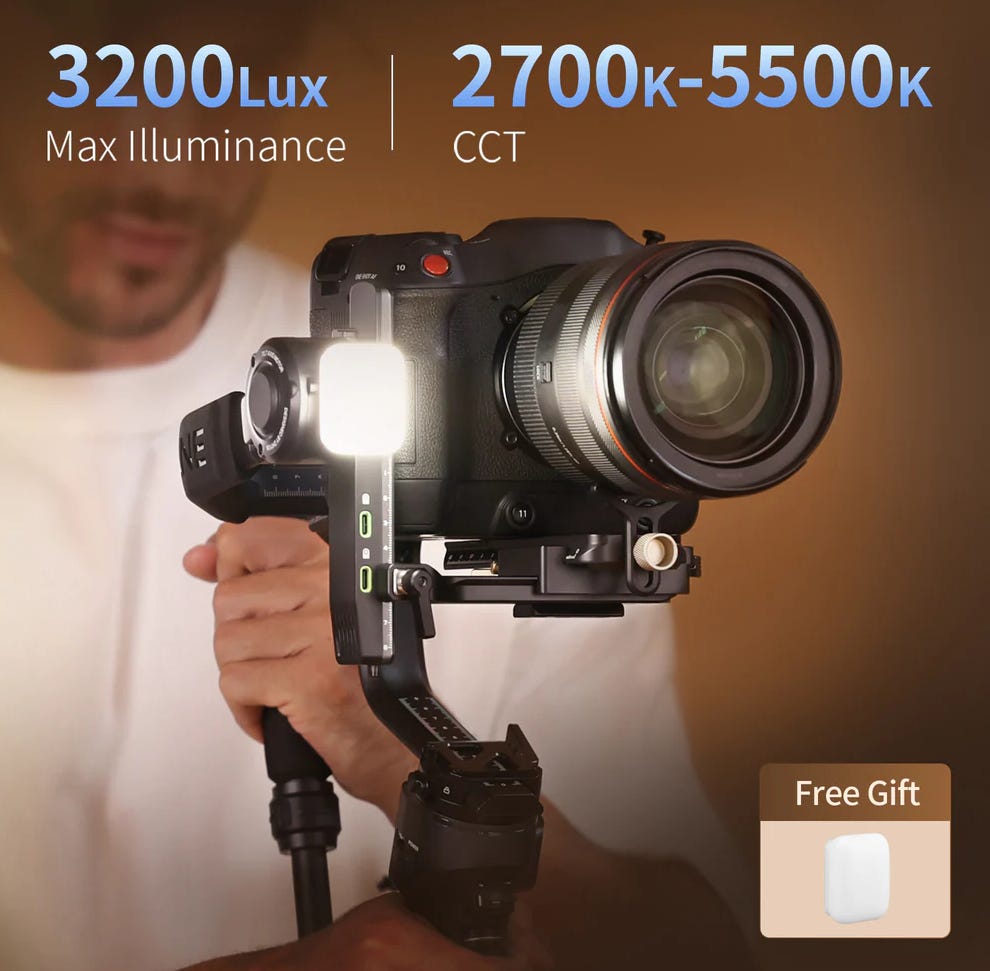

Built-in 10W Fill Light

The built-in 10W fill light adds to the portability of quality shooting, bringing you a lightweight experience than ever with pro LED lighting. Equipped with a light cover to provide ideal light effect for the creation of shooting environment.

Built-in 10W Fill Light

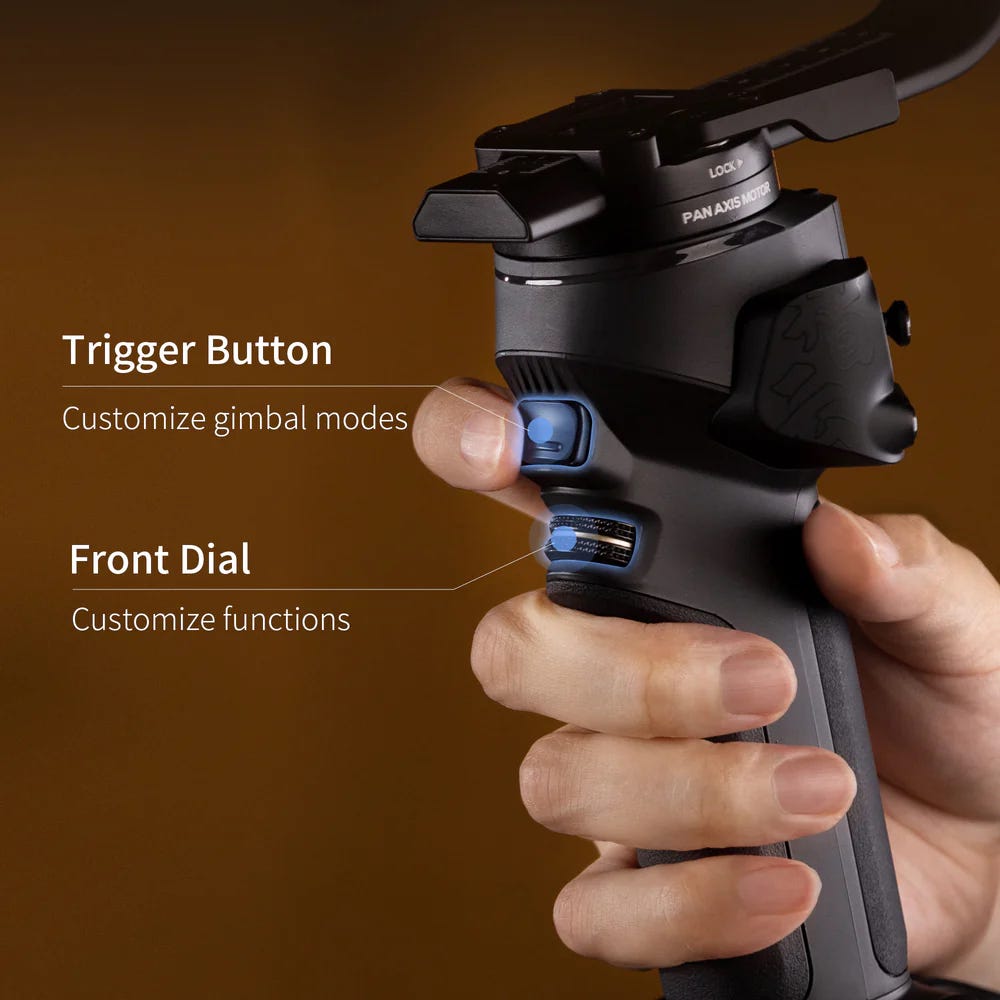

Customize Function Settings

The trigger button and front dial support customizable parameter adjustment, such as ISO, shutter and aperture, as well as focus motor and gimbal mode control, making the creative process more intuitive and convenient.

Customize Function Settings

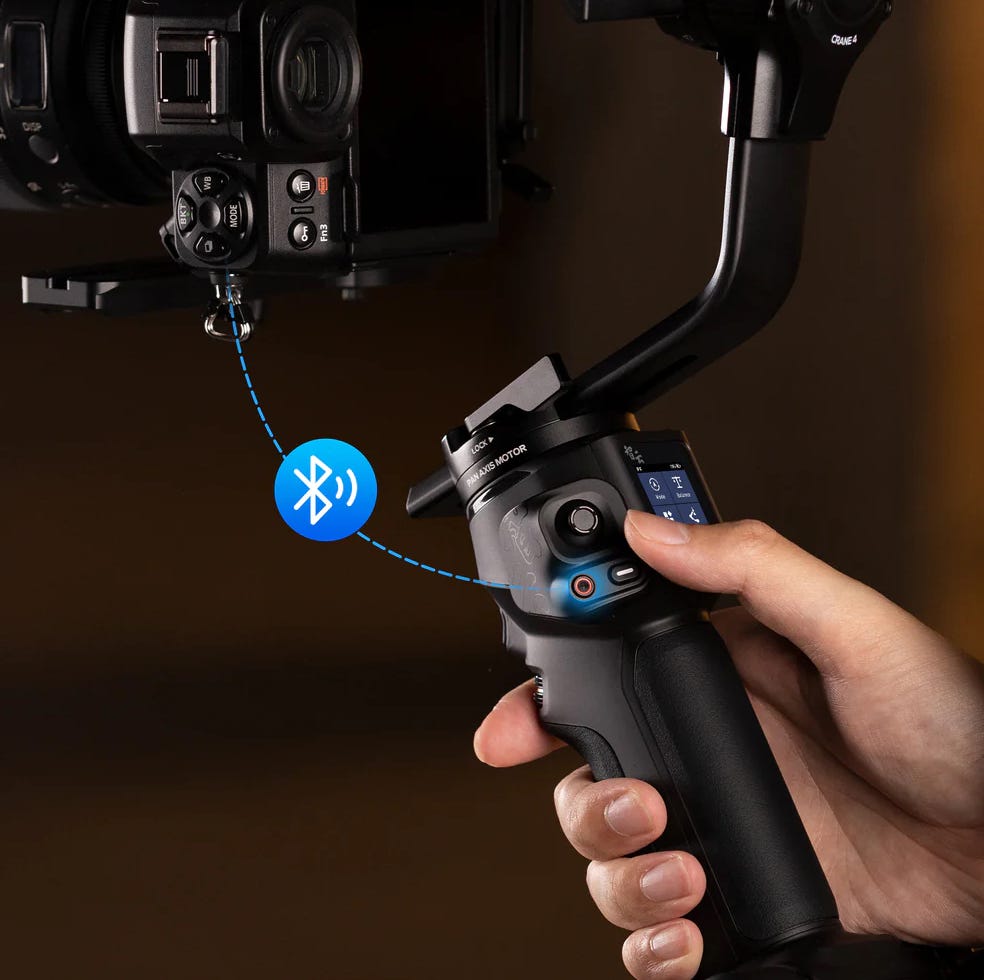

Upgraded Bluetooth Shutter Control

Crane 4 supports Bluetooth shutter control with mainstream cameras. You can start/stop recording or trigger photo-taking functions via the recording button, experiencing a seamless shooting like never before.

Upgraded Bluetooth Shutter Control

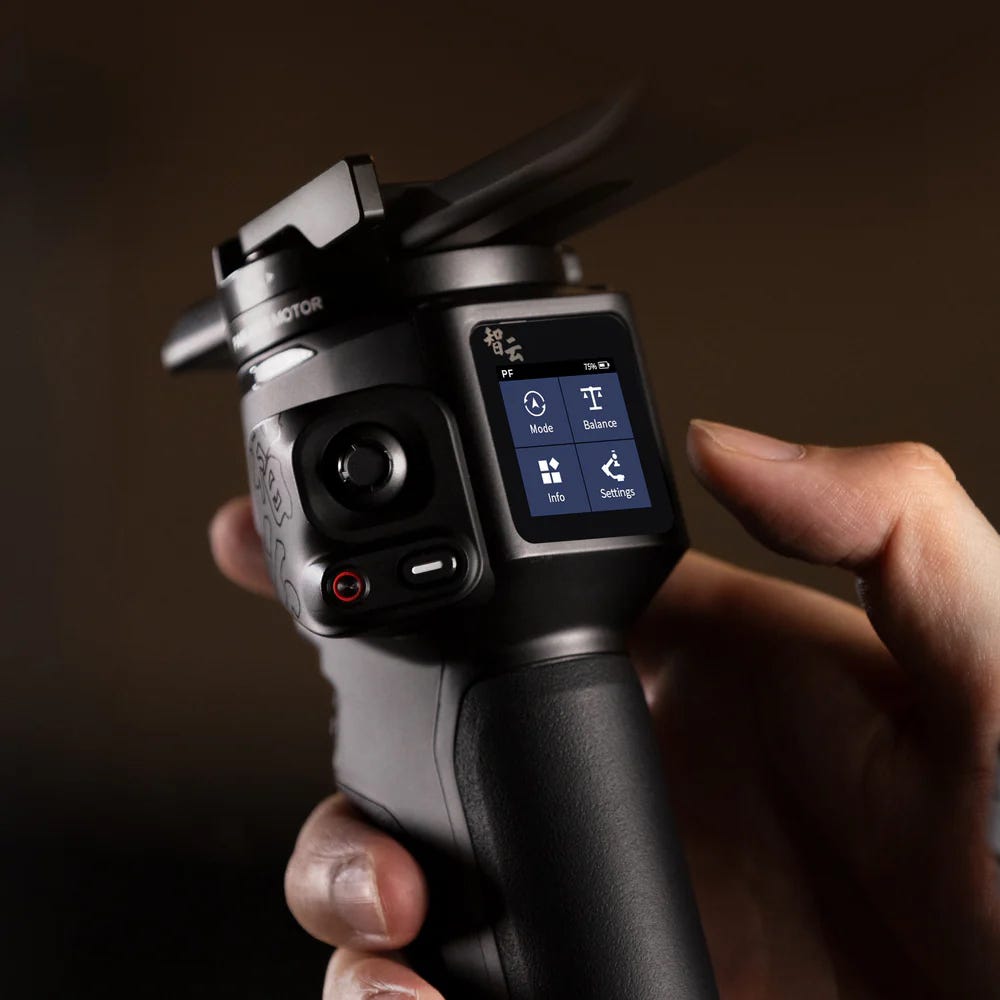

Efficient Color Screen

1.22 inch touch control Chinese and English color screen supports multiple functional adjustments, built-in motion timelapse and other functions.

Efficient Color Screen

Thoughtful Design

Built-in magnetic tightening wrench for easy disassembly and installation of auxiliary equipment. The shaft arm is equipped with a silicone protective cover to reduce wear and tear caused by carrying the gimbal.

Thoughtful Design

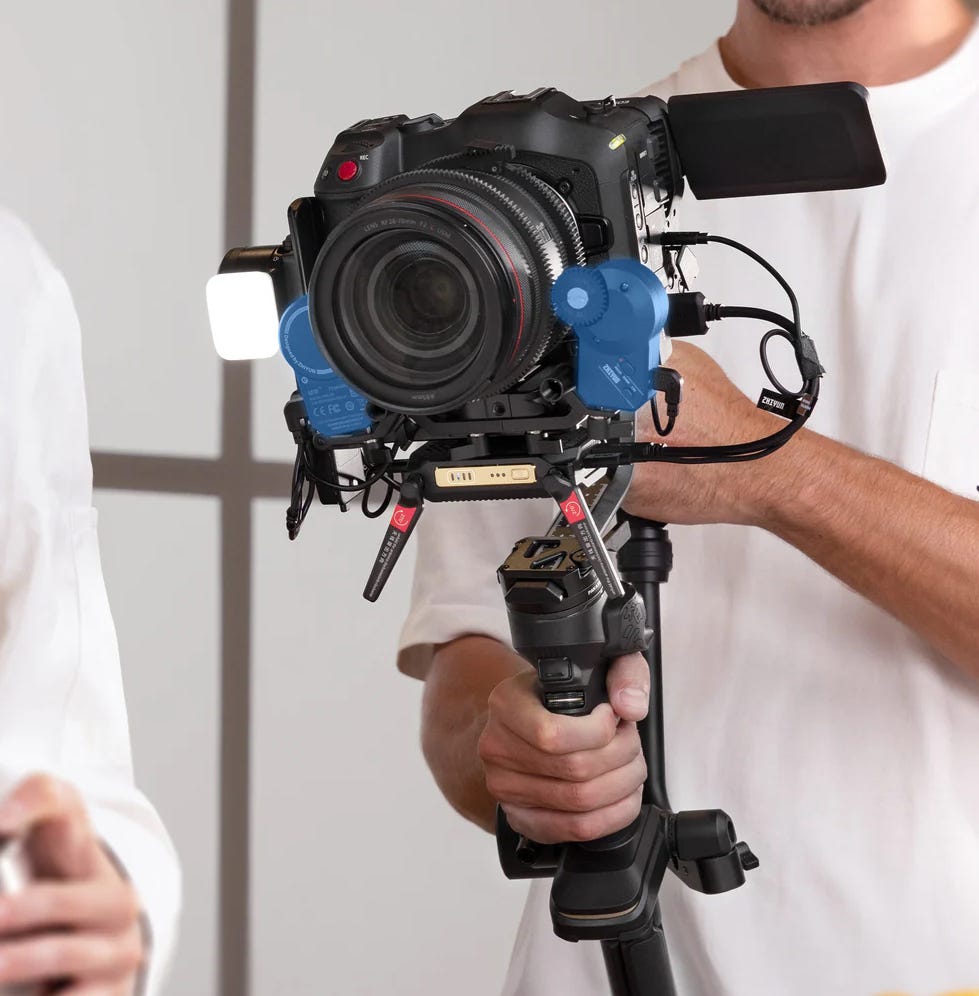

Excellent Focus Performance

With the built-in dual follow focus interface, Crane 4 can be paired with external dual servo focus controllers to provide a precise focusing experience.

Excellent Focus Performance

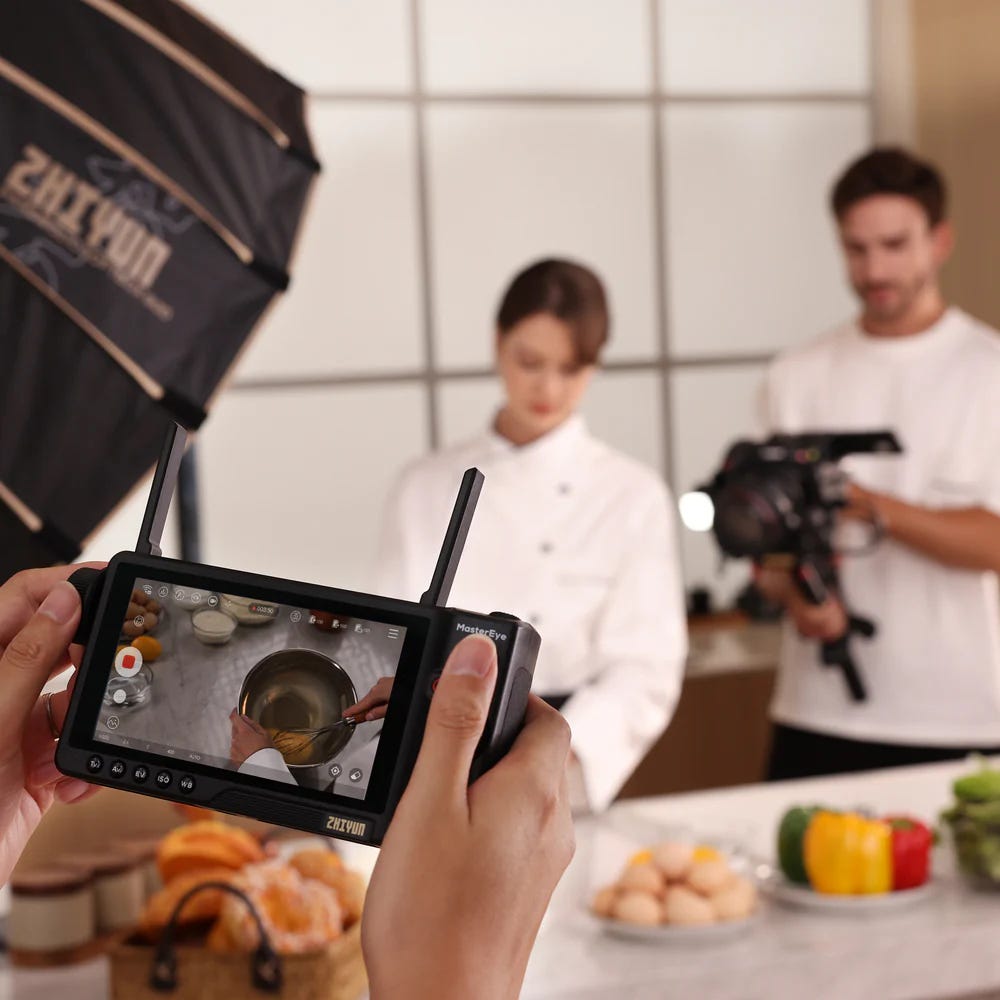

Wide Range of Professional Accessories

With the TransMount image transfer system, you can achieve excellent remote monitoring and collaborative authoring. It also supports matching and focal assembly to ensure that professional creation is not limited by equipment.

Wide Range of Professional Accessories

Strong Battery Life, Long Standby

Four 18650 batteries can meet the needs of high-intensity shooting for a day, and PD fast charge supports charging while using.

Strong Battery Life, Long Standby

After extensive research and development, ZHIYUN presents the CRANE 4 3-Axis Handheld Gimbal Stabilizer Standard Kit, a game-changer for professional photographers and videographers. This sturdy and durable gimbal is designed to offer an unmatched lightweight experience, superior stability, and an impressive payload capacity, pushing the boundaries of creative possibilities.

The CRANE 4 is meticulously crafted with ergonomic precision, boasting a lightweight design that ensures superb handling. Its versatility is evident in its innovative quick-release module that integrates a horizontal and vertical lock structure, allowing for effortless switching between landscape and portrait shooting modes.

The revolutionary Sling Mode offers more precise control, with an adjustable sling grip and a wrist rest that supports fine-tuning angle adjustment. This significantly reduces shooting fatigue while providing more precise movement control. The extendable sling grip can be adjusted to the gimbal's central axis, facilitating easy switching between sling mode and two-handed mode.

The CRANE 4 is compatible with a wide range of cameras, from full-frame DSLRs to compact cinema cameras, thanks to its longer arm length, stronger motors, and extended quick-release plate. It also features balance indicator lights on each motor for precise balance calibration.

The built-in 10W fill light enhances the quality of your shots, offering a lightweight experience with professional LED lighting. The 1.22-inch color touchscreen supports multiple adjustments and includes built-in features such as motion timelapse, elevating your creativity at your fingertips.

The CRANE 4 also supports Bluetooth shutter control with mainstream cameras, allowing you to start/stop recording or trigger photo-taking functions via the recording button for a seamless shooting experience.

The gimbal comes with a magnetic tightening wrench and a silicone protective sleeve to reduce wear and tear on the axis arms while carrying. The trigger button and front dial support customizable parameter adjustments, such as ISO, shutter speed, and aperture, as well as focus motor and gimbal mode control, making the creative process more intuitive and convenient.

The CRANE 4 can be paired with a variety of professional accessories, creating a comprehensive creative ecosystem that enables excellent remote monitoring and collaborative creation. The built-in dual follow focus ports allow for a precise focusing experience through external dual servo focus controllers.

With four 18650 batteries, the CRANE 4 ensures a whole day of shooting. You can charge and shoot simultaneously, enjoying a seamless and stable creative journey. The CRANE 4 3-Axis Handheld Gimbal Stabilizer Standard Kit is the perfect tool for those seeking to elevate their photography and videography to new heights.

Zhiyun CRANE 4 Features

  • Precise Balance Calibration: New intelligent balance indicator lights
  • Freely Switch: Horizontal and vertical lock structure
  • Energy-saving Adjustment: Flexible wrist rest & Extendable sling grip
  • Easier Control: Bluetooth shutter control
  • Intimate Detail Design: Built-in magnetic tightening wrench & protective cover

Product Documents

User Manual

Key Features

  • Capture smooth, professional video with the Zhiyun CRANE 4's enhanced stabilization system.
  • Enjoy extended shooting sessions with a 12-hour battery life on this handheld gimbal stabilizer.
  • The CRANE 4 supports various cameras, including DSLRs and mirrorless, up to 13.2 lbs (6kg).
  • Easily control settings via the intuitive touchscreen LCD for seamless video creation.
  • Compact and lightweight at 3.68 lbs, this 3-axis gimbal is great for travel and on-the-go filming.
  • Use the ZY Play app for remote control and firmware updates to maximize your gimbal's potential.

What's in the box:

  • Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer
  • Mini Tripod
  • Lower Quick Release Plate
  • Upper Quick Release Plate
  • Camera Quick Release Plate
  • Lens Support
  • USB-C to Sony Multi Control Cable
  • USB-C to Mini-USB Canon Control Cable
  • USB-C to Micro-USB Canon Control Cable
  • USB-C to USB-C Panasonic Control Cable
  • USB-C Charging Cable
  • Fill Light Diffuser
  • 3x 1/4"-20 Screw
  • 3/8"-16 Screw
  • Allen Key
  • Carrying Case
  • (Charger Not Included)
  • Zhiyun 1 Year Limited Warranty
