Zhiyun Z1-Rider V2 3-Axis Multi-Functional Motorized Gimbal
See all Zhiyun items

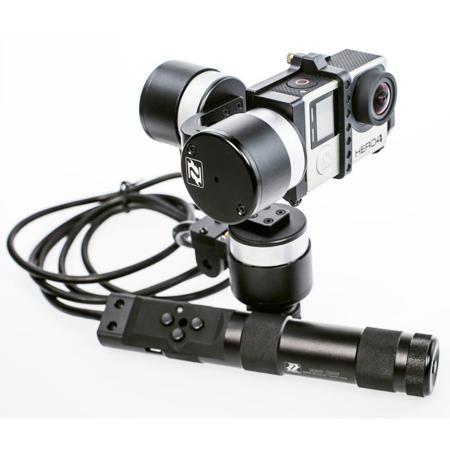

Zhiyun Z1-Rider V2 3-Axis Multi-Functional Motorized Gimbal for GoPro Hero Series Cameras

SKU: ZHZ1RIDERV2
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Zhiyun Z1-Rider V2 Specifications

  • Compatibility

    GoPro hero series camera
    SJ4000
    Maximum Size (H x W): 42.7 x 31mm / 1.68 x 1.22"

  • Operating voltage

    Minimum: 6.8V
    Standard: 8.4V
    Maximum: 12.6V

  • Operating current

    Minimum: 500mA
    Standard: 120mA
    Maximum: 2A

  • Static attitude tracking error

    Minimum: +/-0.01 deg.
    Maximum: +/-0.04 deg.

  • Dynamic attitude tracking error

    Minimum: +/-0.1 deg.
    Standard: +/- 0.02 deg.
    Maximum: +/-0.5 deg.

  • Pitch axis vertical movement range

    Minimum: -90 deg.
    Standard: 0 deg.
    Maximum: 180 deg.

  • Roll axis movement range

    Minimum: -45 deg.
    Standard: 0 deg.
    Maximum: 45 deg.

  • Pan axis vertical movement range

    Minimum: -135 deg.
    Standard: 0 deg.
    Maximum: 135 deg.

  • Pan axis horizontal movement range

    Minimum: -45 deg.
    Standard: 0 deg.
    Maximum: 45 deg.

  • Pitch axis following rate

    Minimum: 1 deg. /S
    Maximum: 50 deg. /S

  • Pan axis following rate

    Minimum: 1 deg. /S
    Maximum: 80 deg. /S

  • Battery

    2x 900mAH
    18350 Li-Po battery

  • Battery Charger

    Input: DC 5V/800mA
    Output: DC 4.2V/400mA x 2

  • Battery life

    At 25 deg.C:
    Minimum: 3h
    Standard: 4h
    Maximum: 5h

  • Firmware upgrade

    Micro USB

  • Operating Temperature

    Minimum: -20 deg. C/-4 deg. F
    Standard: 20 deg. C/68 deg. F
    Maximum: 45 deg. C/113 deg. F

  • Dimensions (L x W x H)

    With device and battery (L x W x H): 101 x 88.5 x 114mm / 3.98 x 3.48 x 4.49"
    Without device and battery (L x W): 150 x 26mm / 5.91 x 1.02"

  • Weight

    361g / 12.73oz (Without Camera & Battery)

  • UPC Code

    859574005955

About Zhiyun Z1-Rider V2

Rider2 is a multi-functional stabilizer specially made for sports camera to meet the need of GoPro enthusiast. It's very portable to be worn and the best auxiliary equipment for cameramen.

Can be Widely used on all kinds of photographic equipment
There has 1/4" screw port at the bottom and it's compatible with most accessories to photo-graphic equipment. The GoPro universal interface is compatible with all GoPro accessories. Realize a flexible usage.

A Perfect auxiliary equipment for cameraman
A 1/4" screw port, match to various photographic equipment. Mounted on camera hot shoe to use as an auxiliary equipment and provide back-up photography for cameraman.

Wide Compatibility and Application
Common connector to GoPro, support all GoPro accessories, realize a flexible usage and gain more interests.

Advanced control process
The second generation control process of ZhiYyun has been improved in control algorithm. Its torque is remarkably stronger and motors rotate more smoothly. Automatically calibrated in 10 seconds after power on. Easy to use and considerately smart designed for you.

Longer Battery Life with high Efficiency

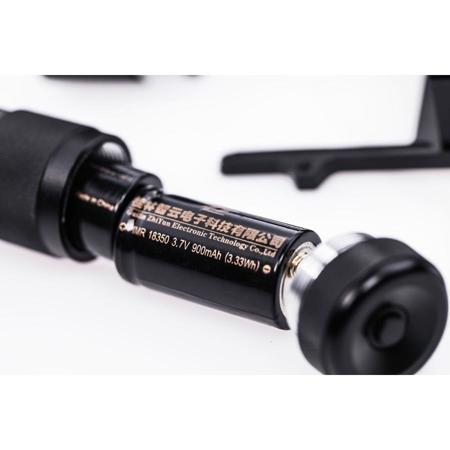

Two 18350 Li-Po batteries provide more than 4 house working time.

Specially power supply module to charge your sports camera at anytime, a perfect solution to solve short battery life. Classic control button (3 buttons) of Zhiyun - Adjusting shooting angle easily.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Zhiyun Z1-Rider V2 3-Axis Multi-Functional Motorized Gimbal
  • Micro USB cable
  • Instruction Manual
  • Zhiyun Warranty
