Zeiss CZ.2 PL Mount Zoom Lens Bundle Specifications

  • Additional Item Includes

    2075-923 Interchangeable Mount - 3x Cine Zoom Transport Case - 28-80mm Interchangeable Mount Set EF - 28-80mm Compact Zoom Lens Case Inlay - 70-200mm Interchangeable Mount Set EF - 70-200mm Compact Zoom Lens Case Inlay - Torx T6 Torque Wrench - Siemens Star Test Chart

  • 15-30mm Lens: Aperture Range

    T 2.9 to T 22

  • 15-30mm Lens: Focal range

    15 - 30mm

  • 15-30mm Lens: Zoom Ratio

    2:1

  • 15-30mm Lens: Close Focus Distance

    0.55m / 1.80'

  • 15-30mm Lens: Horizontal Angle of View

    Full Frame:
    36 x 24mm / 1.42 x 0.94"
    100 to 62 deg.
    APS-H:
    30.2 x 16.7mm / 1.19 x 0.66"
    90 to 54 deg.
    Super 35:
    24.9 x 18.7mm / 0.98 x 0.74"
    79 to 46 deg.
    Standard 35:
    22 x 16mm / 0.87 x 0.63"
    72 to 41 deg.
    APS-C:
    22.3 x 14.9mm / 0.88 x 0.59"
    73 to 42 deg.
    MFT:
    17.3 x 13mm / 0.68 x 0.51"
    59 to 33 deg.

  • 15-30mm Mount: Compatibility

    Compact Zoom CZ.2 15-30/T2.9 Lens

  • 15-30mm Case: Compatibility

    CZ.2 and LWZ.2 Lenses

  • 28-80mm Lens: Mount Type

    PL (interchangeable)

  • 28-80mm Lens: Focal Range

    28 - 80mm

  • 28-80mm Lens: Aperture Range

    T 2.9 to T 22

  • 28-80mm Lens: Close Focus Distance

    1.52m / 4.99'

  • 28-80mm Lens: Horizontal Angle of View

    Full-frame:
    1:1.5
    36 x 24mm / 1.42 x 0.94"
    25 - 66 deg.
    APS-H:
    1:1.81
    30.2 x 16.7mm / 1.19 x 0.66"
    21 - 57 deg.
    Super 35:
    1:1.33
    24.9 x 18.7mm / 0.98 x 0.74"
    18 - 48 deg.
    Normal 35:
    1:1.37
    22 x 16mm / 0.87 x 0.63"
    16 - 43 deg.
    APS-C:
    1:1.50
    22.3 x 14.9mm / 0.88 x 0.59"
    16 - 43 deg.
    MFT:
    1:1.33
    17.3 x 13mm / 0.68 x 0.51"
    12 - 34 deg.

  • 28-80mm Lens: Barrel Markings

    Imperial measurements

  • 28-80mm Mount: Type

    Canon EF

  • 28-80mm Mount: Compatibility

    Compact Zoom CZ.2 28-80mm T2.9 lenses

  • 28-80mm Mount: Shim Thickness

    Silver: 0.013mm
    Gold: 0.019mm
    Purple: 0.025mm
    Light blue: 0.032mm
    Red: 0.038mm
    Blue: 0.051mm
    White: 0.064mm
    Green: 0.076mm
    Orange: 0.102mm
    Light purple: 0.127mm
    Clear: 0.152mm

  • 28-80mm Case Inlay: Foam

    Cocoon protect PRIME foam, contains rubber

  • 28-80mm Case Inlay: Compatibility

    28-80mm Lens inside the Zeiss 2031-064 Compact Zoom Lens Case

  • 70-200mm Lens: Focal Range

    70 - 200mm

  • 70-200mm Lens: Aperture Range

    T 2.9 to T 22

  • 70-200mm Lens: Close Focus Distance

    0.83m / 2.72'

  • 70-200mm Lens: Horizontal Angle of View

    Full-frame:
    1:1.5
    36 x 24mm / 1.42 x 0.94"
    10 - 29 deg.
    APS-H:
    1:1.81
    30.2 x 16.7mm / 1.19 x 0.66"
    9 - 24 deg.
    Super 35:
    1:1.33
    24.9 x 18.7mm / 0.98 x 0.74"
    7 - 20 deg.
    Normal 35:
    1:1.37
    22 x 16mm / 0.87 x 0.63"
    6 - 18 deg.
    APS-C:
    1:1.50
    22.3 x 14.9mm / 0.88 x 0.59"
    6 - 18 deg.
    MFT:
    1:1.33
    17.3 x 13mm / 0.68 x 0.51"
    5 - 14 deg.

  • 70-200mm Lens: Barrel Markings

    Imperial measurements

  • 70-200mm Mount: Type

    Canon EF

  • 70-200mm Mount: Compatibility

    Compact Zoom CZ.2 70-200mm T2.9 lenses

  • 70-200mm Mount: Shim Thickness

    Silver: 0.013mm
    Gold: 0.019mm
    Purple: 0.025mm
    Light blue: 0.032mm
    Red: 0.038mm
    Blue: 0.051mm
    White: 0.064mm
    Green: 0.076mm
    Orange: 0.102mm
    Light purple: 0.127mm
    Clear: 0.152mm

  • 70-200mm Case Inlay: Foam

    Cocoon protectPRIME foam, contains rubber

  • 70-200mm Case Inlay: Compatibility

    70-200mm Lens inside the Zeiss Compact Zoom Lens Case

  • Dimensions (Front Dia. x L)

    15-30mm Lens: 4.49 x 9.92" / 114.05 x 251.97mm
    28-80mm Lens: 3.7 x 7.72" / 93.98 x 196.09mm
    70-200mm Lens: 3.7 x 9.84" / 93.98 x 249.94mm

  • Weight

    15-30mm Lens: 5.7lbs / 2.59kg
    28-80mm Lens: 5.5lbs / 2.49kg
    70-200mm Lens: 6.2lbs / 2.81kg

About Zeiss CZ.2 PL Mount Zoom Lens Bundle

Compact Zoom CZ.2 Lenses
Lightweight and compact zoom lenses featuring the Interchangeable Mount System (PL, EF, F, MFT, E)
The new Compact Zoom CZ.2 lenses are as versatile as they are powerful and incorporate features never seen before on lenses of this kind. They are handy, compact, ready for 4k and even offer full-frame coverage. With their zoom lengths of 28-80 and 70-200 mm, they give you a wide range of creative options. Their compact size and light weight make them the ideal companions for even the most ambitious applications, including handheld, Steadicam and projects in confined spaces. And thanks to their robust, cine-style housing (which also allows for the use of a follow-focus system), their full-frame coverage and interchangeable mounts, they will be reliable partners for years to come.

• Interchangeable mount
• No focus shift over the zoom range
• Circular shape of iris
• Calibrated focus scale
• Colormatched with all ZEISS Prime lenses.
• Full-frame coverage (36 x 24 mm)
• Robust cine-style housing
• Great flare suppression
• 4K capability

Application
The size and weight of the Compact Zoom CZ.2 make the lens perfect. Both Zoom Lenses are colormatched not just to each other, they fit perfectly to all ZEISS prime lenses. The Zoom lenses are ideal for top-quality movies, feature films productions and documentaries. With their outstanding color matching, typical for ZEISS, they make an optimal addition to the Master Prime, Ultra Prime and Compact Prime.

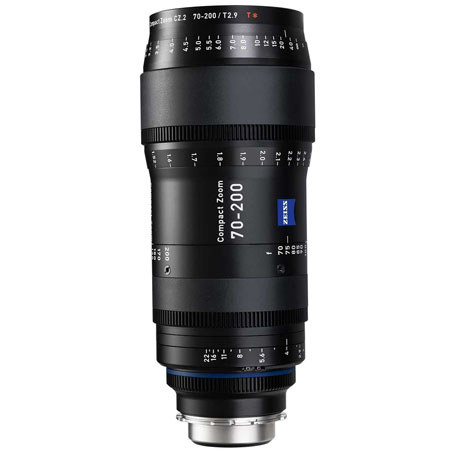

Why should I go for the Compact Zoom CZ.2 70-200mm T/2.9 or the CZ.2 28-80mm instead of a photo zoom lens
The Compact Zoom CZ.2 70-200mm T/2.9 comprises all the features of a cine-style lens. Extra-long focus throw, constant T-stop of 2.9 across the entire zoom range and easy-to-read markings. But the main difference to a regular photo zoom lens is a phenomenon called "focus shift". When zooming in on an object with a photo zoom lens you always have to adjust focus. As soon as you change the image frame the position of the sharp plane of focus changes as well. In still photography this is not a problem.

But in motion picture it is a big issue because your details might be out of focus. Your scene is ruined. A highly precise mechanical adjusting concept is used to compensate this negative effect with the Compact Zoom CZ.2 70-200mm T/2.9. The goal is to stabilize the image position while zooming. Three independent lens movements are necessary to achieve this. You have a sharp crisp image without refocusing.

What's in the box:

  • Zeiss 15-30mm CZ.2 Zoom Lens
  • 28-80mm CZ.2 Zoom Lens
  • 70-200mm CZ.2 Zoom Lens
  • 15-30mm Transport Case Inlay
  • Zeiss 1 Year Limited Warranty for 15-30mm CZ.2 Zoom Lens; 2075-923 Interchangeable Mount; 3x Cine Zoom Transport Case and 15-30mm Transport Case Inlay
  • Zeiss 2 Year Limited Warranty for 28-80mm CZ.2 Zoom Lens; 28-80mm Mount Set EF / 70-200mm CZ.2 Zoom Lens; 70-200mm Mount Set EF
  • Zeiss 1 Year Warranty for Torx T6 Torque Wrench
  • (See Specifications for More Included Items)
