Mono (Mic/Guitar): 1
Mono (Mic/Line In): 1
Stereo (TRS): 1
Stereo (Phones): 1
Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input Gain: +8 - +54 dB (Mic) / +8 - +54 dB (Guitar)
Input Impedance
XLR: 2 k Ohm (Mic)
TS: 1 M Ohm (Guitar)
Maximum input level
XLR: +0.6 dBu (Mic)
TS: +11 dBu (Guitar)
Phantom Power: +48V
Type: TRS phone jacks (impedance balanced)
Maximum output level: -2 dBu (at 0 dBFS)
Output impedance: 100 Ohm
Type: 3.5mm stereo mini jack 20 mW + 20 mW (32 Ohm load)
Output impedance: 10 Ohm
USB Type-C (audio interface function)
Use a USB cable that supports data transfer. USB bus power is supported.
USB Type-C (for power supply)
Type: 3.5mm stereo mini jack
Input impedance: 20 k Ohm
Maximum input level: +1.5 dBu
44.1 kHz: +0/-2 dB (20 Hz - 20 kHz)
96 kHz: +0/-3 dB (20 Hz - 40 kHz)
-120 dBu or less (IHF-A) at +54dB/150 Ohm input
Recording: 2 channels
Playback: 2 channels
96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
24-bit
USB 2.0
USB Audio Class 2.0
AC adapter (ZOOM AD-17): DC 5 V/1 A
USB bus power is supported
USB bus power / DC 5 V power supply: 170 mA
1.8W maximum
2.67 x 2.27 x 1.81" (68 x 57.7 x 46mm)
2.99 oz (85g)
884354025922
Record & Stream with Ease
AMS Audio Interfaces are designed for musicians who want to record music with their DAW or easily livestream on platforms like YouTube and Twitch, without all the typical complications.
2 Inputs and 2 Outputs

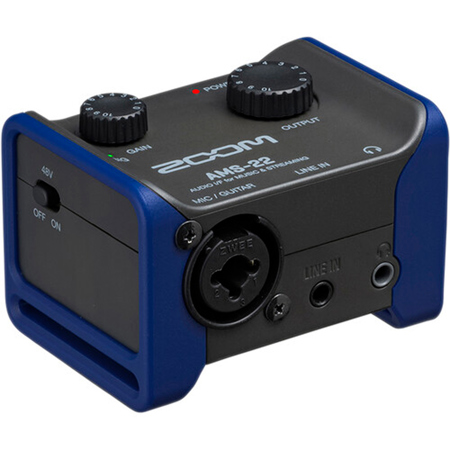

Perfect for mobile recording or streaming, the AMS-22 includes an XLR/TRS combo input, plus a stereo line in. It also includes a headphone output and 2 TRS outputs for external monitors.
Hardware Switches
Quick Control
With onboard hardware switches, the AMS-22 is designed to simplify common streaming challenges without the need for additional software.
Direct Monitoring Switch
Onboard Monitoring
Use the Direct Monitor Switch to directly send the input signal to your headphones while routing the same signal to your DAW or streaming software.
Loopback Switch
Loop It Back
The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.
Power Options
All three AMS interfaces can be powered from your PC or Mac via USB-C. Use external power when working from a tablet or mobile phone.
Plug It In
Use the AMS Series on any device thanks to its support for Mac and PC, along with iOS and Android devices.
