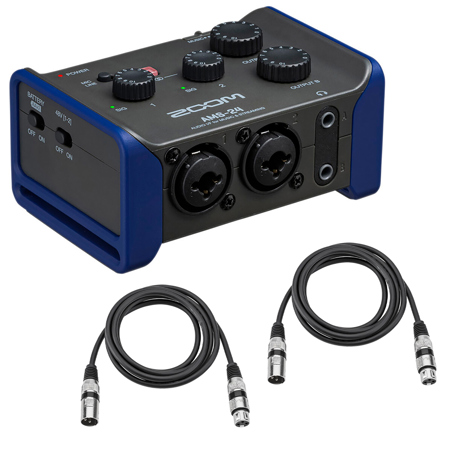

Zoom AMS-24 2x4 USB Audio Interface for Music and Streaming, Bundle with 2x 6' XLR M to F Microphone Cable

SKU: ZOAMS24A MFR: ZAMS24 A
$162.97
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Zoom AMS-24 2x4 USB Audio Interface for Music and Streaming
    Zoom AMS-24 2x4 USB Audio Interface for Music and Streaming
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 6'
    H&A Value Series XLR M to F Professional Microphone Cable - 6'

    Qty: 2

  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Experience crystal-clear audio quality for music and streaming with 24-bit/96 kHz resolution.
  • Connect your microphones and instruments effortlessly using the versatile XLR/TRS combo inputs.
  • Enjoy seamless integration with your computer via USB 2.0, ensuring reliable audio performance.
  • Monitor your sound with precision using dual headphone outputs, perfect for collaborative projects.
  • Power your sessions flexibly with USB bus power or optional AA batteries for on-the-go creativity.
  • Achieve professional-grade recordings and live streams with this compact and portable audio interface.
See More Product Details
Temporarily On Backorder?Expected Availability: 04/2026Request assistance or get notified
Free Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Zoom AMS-24 Specifications

Input and Output Channels

Input and Output Channels

Jump to...
  • Number of Input Channels

    Mono (Mic/LINE): 2

  • Number of Output Channels

    Stereo (TRS): 1
    Stereo (Phones): 2

Connectors

Jump to...
  • Input 1-2

    Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)

    Input Gain: -Infinite - +58 dB / -Infinite - +50 dB (when set to Guitar)

    Input Impedance
    XLR: 2.7 k Ohm
    TRS: 18 k Ohm / 330 k Ohm (when set to Guitar)

    Maximum input level
    XLR: +6 dBu
    TRS: +22 dBu / +8.5 dBu (when set to Guitar)

    Phantom Power: +48 V

  • Output A (Standard Phone Jacks)

    Type: TRS phone jacks (impedance balanced)
    Maximum output level: +10 dBu (at 0 dBFS)
    Output impedance: 100 Ohm

  • Output A-B (Headphone Jacks)

    Type: 3.5mm stereo mini jacks 30 mW + 30 mW (32 Ohm load)
    Output impedance: 10 Ohm

  • USB

    USB Type-C (audio interface function)
    Use a USB cable that supports data transfer. USB bus power is supported.

  • DC 5V

    USB Type-C (for power supply)

Frequency Response

Jump to...
  • Frequency Response

    44.1 kHz: +/-1 dB (20 Hz - 20 kHz)
    96 kHz: +/-1.5 dB (20 Hz - 40 kHz)

Equivalent Input Noise

Jump to...
  • Equivalent Input Noise

    -120 dBu or less (IHF-A) at +58dB/150 Ohm input

Audio Interface

Jump to...
  • Input and Output Channels

    Recording: 2 channels
    Playback: 4 channels

  • Sampling Frequencies

    96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz

  • Bit Depth

    24-bit

  • Interface

    USB 2.0

  • Class

    USB Audio Class 2.0

  • Power

    2 AA batteries (alkaline, lithium, or rechargeable NiMH)
    AC adapter (ZOOM AD-17): DC 5 V/1 A
    USB bus power is supported

Rated Current

Jump to...
  • Rated Current

    USB/AC adapter (5 V): 380 mA
    Batteries (2.4 V): 470 mA

Estimated Continuous Operation Time

Jump to...
  • Estimated Continuous Operation Time

    44.1 kHz, 48 V off, with 32 Ohm headphone load
    Alkaline batteries: about 4 hours
    NiMH batteries (1900 mAh): about 5.5 hours
    Lithium batteries: about 11 hours

Power Consumption

Jump to...
  • Power Consumption

    5W maximum

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

Physical

Jump to...
  • Dimensions (W x D x H)

    3.72 x 2.92 x 1.81" (94.5 x 74 x 46mm)

  • Weight

    4.72 oz (134g)
    With Battery: 6.34 oz (180g)

  • UPC Codes

    192223295377 | 884354025953 | 192223075467

About Zoom AMS-24

Enhance your music recording and live streaming experience with the AMS-24 2x4 USB Audio Interface, a compact and portable device designed for musicians and content creators. This high-quality audio interface from Adorama is engineered to simplify your recording and streaming process, eliminating the need for complex software.

The AMS-24 features an innovative Music/Streaming Switch, allowing you to effortlessly transition between recording music to your DAW and live streaming on popular platforms like YouTube and Twitch. In Music Mode, enjoy expanded input and output routing options for a more versatile recording experience. Switch to Streaming Mode to combine all inputs into a single signal, ideal for seamless streaming.

Equipped with two XLR/TRS combo inputs, the AMS-24 is perfect for both solo streams and multi-instrument sessions. Benefit from Zoom's low-noise preamps for a clear, high-quality sound. The interface also includes two headphone outputs and two TRS outputs for external monitors, providing ample connectivity options.

The AMS-24 stands out with its onboard hardware switches, designed to simplify common streaming challenges. The Music/Streaming Switch allows each input to act independently with individual gain control in Music mode, and combines all inputs into one signal in Streaming mode. The Direct Monitor Switch enables you to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.

The Loopback Switch combines the input audio with playback from your computer, routing it to your streaming software - perfect for adding background music to your stream or singing live with an instrumental track. The Mic/Line - Guitar Switch allows you to switch Input 1 from Mic or Line Level to Guitar Level (Hi-Z), while the Stereo Link connects two inputs for stereo recording or streaming.

The AMS-24 also provides 48V phantom power for condenser microphones and can be powered from your PC or Mac via USB-C, or with two AA batteries for on-the-go use. With support for Mac, PC, iOS, and Android devices, the AMS-24 USB Audio Interface is a versatile and user-friendly solution for all your music recording and streaming needs.

Zoom AMS-24 Features

  • Perfect for solo streams and multi-instrument sessions
  • Two XLR/TRS combo inputs along with Zoom's low-noise preamps
  • Two headphone outputs and two TRS outputs for external monitors
  • Music mode, each input acts independently with individual gain control
  • Streaming mode all inputs are combined into one signal to work seamlessly with your streaming software
  • Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software
  • Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software
  • Switch Input 1 from Mic or Line Level to Guitar Level (Hi-Z)
  • Provides 48V phantom power for condenser microphones
  • Can be powered from your PC or Mac via USB-C
  • Also use two AA batteries

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience crystal-clear audio quality for music and streaming with 24-bit/96 kHz resolution.
  • Connect your microphones and instruments effortlessly using the versatile XLR/TRS combo inputs.
  • Enjoy seamless integration with your computer via USB 2.0, ensuring reliable audio performance.
  • Monitor your sound with precision using dual headphone outputs, perfect for collaborative projects.
  • Power your sessions flexibly with USB bus power or optional AA batteries for on-the-go creativity.
  • Achieve professional-grade recordings and live streams with this compact and portable audio interface.

What's in the box:

  • Zoom AMS-24 2x4 USB Audio Interface
  • USB Type-C Cable
  • Quick Start Guide
  • Zoom 1 Year Limited Warranty
  • Bundle Includes:
  • 2x H&A 6' Value Series XLR M to F Professional Microphone Cable
