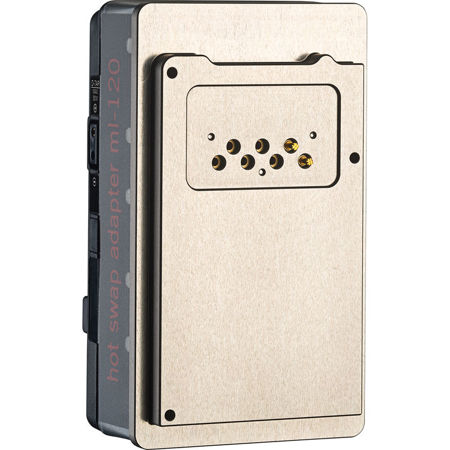

Bebob Engineering ML-120 V-Mount Hot Swap Adapter for ARRI Amira Camera

• Automatic switching by empty batteries to allow continuous powering of the ARRI Amira for 120s
• 2 Step empty battery-alarm
• 20Wh built-in power-buffer
• 12V (unreg.) D-Tap Port with self-resetting 5A Fuse
• Zero maintenance required
• Works only with V-Mount Lithium-Ion Battery (nominal voltage between 14.4V and 14.8V)
• Mounts only on the ARRI Amira

Charging
The ML-120AMIRA charges itself from the V-Mount battery
• At first charge or If completely empty, the ML-120AMIRA will be ready to use after 60 minutes
• While Charging the yellow "Charging" LED turns on
• When fully charged the green "Ready" LED turns on
• The ML-120AMIRA charges itself automatically when needed
• During charging The ML-120AMIRA keep monitoring the voltage of the battery and is ready to switch if needed

Battery Swap
• The ML-120AMIRA detects a battery as empty when the voltage drops below 12.5V
• The ML-120AMIRA instantly takes over powering the ARRI Amira and the D-Tap port for a maximum of 2 minutes and displays a red LED alarm
• The LED Alarm flashes for 90s, turns to solid for the last 30s
• After the empty battery has been replaced by a charged one (voltage under load of over 14.5V), powering of the ARRI Amira instantly reverts to the V-Mount battery
• The ML-120AMIRA switches up to 6 Times before running empty
• If the empty battery is not replaced within 2 minutes the ML-120AMIRA and the ARRI Amira will switch off

Alarm LED's brightness
• To allow the Alarm LED to be visible in bright environments (sunlight etc.) but not disturbingly over bright in darker environments (studio etc.), the ML-120 has automatic brightness adjust
• The brighter the environment the brighter the alarm LED will show
• The environment light detector is located at the top - middle of the ML-120 housing
• Covering the housing (with tape for instance) will switch off the automatic brightness adjust and the alarm LED will flash with minimum brightness
