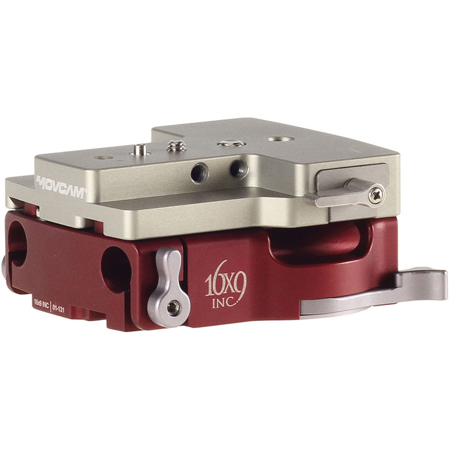

16x9 169-CBM15-FS700-1 Cine Base Mini 15 Kit for Sony FS700 Camcorder, Includes Cine Base M15 Support Base, Camera Top Spacer for Sony FS700

The 16x9 169-CBM15-FS700-1 Cine Base Mini 15 Kit for Sony FS700 Camcorder comes with the Cine Base Mini 15 Support Base and Movcam Camera Spacer. Machined out of solid aluminum, the Cine Base Mini 15 Support Base provides a solid build for tough environments. Built of quality materials and machined with precision, this support base is designed to stand the test of time. The Movcam Camera Spacer can be swiftly mounted onto the Cine Base M15 Support Base. A dual-locking mechanism securely locks industry-standard 15mm support rods (sold separately) onto the 15mm Cine Base. The individual lock levers make it possible to adjust the rods individually for fine tuning.

Located on the camera operator's side, a locking lever securely locks the 15mm Cine Base onto the compact dovetail or any industry-standard dovetail rails. The locking lever activates a spring-loaded brake-system, preventing the 15mm Cine Base from sliding on the dovetail rails. The 15mm Cine Base incorporates a safety lock mechanism that automatically and securely locks the camera support plate. When mounting the camera support plate onto the 15mm Cine Base, the safety lock automatically lowers itself on contact. Once in place, the camera support plate is secure. To release the camera support plate, you can simply press down on the safety lock and slide the camera support plate off.

Smooth sliding between the 15mm Cine Base and the dovetail is made possible by the addition of acetal homopolymer (polyacetal) on the bottom of the 15mm Cine Base. The added feature will allow you to smoothly slide and balance your camera without any binding movements. Designed to mount onto studio base plates from ARRI or Chrosziel, the 15mm Cine Base comes standard with 2 thread hole patterns. The first row features 1/4"-20 and 3/8"-16 female threads and the second row features 3/8"-16 female threads.
