Zoom H5 Recorder with Interchangeable Microphone System Bundled with Rycote Mini Windjammer
SKU: ZOH5A MFR: H5 A
Earn VIP Reward Points
Key Features
- Capture pristine audio with the Zoom H5 recorder, perfect for music or podcasts.
- Get crystal-clear sound with the H5's X/Y mic, ideal for interviews and field recording.
- Enjoy extended battery life for long recording sessions; great for lectures & events.
- Use this digital field recorder as a USB audio interface for seamless studio integration.
- Compact & portable, the Zoom H5 ensures top-notch audio capture wherever you go.
- Bundled with a Rycote Mini Windjammer, get clean audio even in windy conditions.
Free Shipping
See Options
Qty
1
Protect your gear with Adorama Protect.* Learn more
1 Year
$39.99
2 Year
$69.99
3 Year
$79.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Accessories
Learn
Specs
Protection
Q&A
About Zoom H5
FEATURED REVIEWS
Fantastic Recorder for a great price
When I first took the Zoom H5 out of the included hard shell case all I could say is "WOW" this thing feel fantastic in your hand. They gave it a slight curve to improve ergonomics compared to the standard square shape of most recorders. The build quality is Amazing. This thing feels very solid. It's mostly made of plastic that is covered in a soft touch rubber type coating that is very nice. The microphone capsule is made out of metal as well as the guard bars over the gain adjustment dial...
View full Review
Sound recorder
Adorama is an incredible company . They never fail to have the products I require. On occasions I have had to call customer service, there always helpful. Over the last several years I have been using Adorama Flash Point products I find them a professional grade and very affordable. Shipments to my doorstep have always been prompt. You can't go wrong with Adorama. Adorama is five star.
THE ZOOM H5 Evolved recording in more ways than one.
Our products are constantly evolving to meet the needs of the creators who use them. With the H5 Handy Recorder, the tradition continues. The H5 provides four tracks of simultaneous recording and, like our flagship H6, it can use all Zoom interchangeable input capsules, allowing you to choose the best microphone for every recording situation. The flexible and powerful H5 provides everything you need to create multitrack recordings, audio for video, and state-of-the-art podcasting, broadcasting and electronic newsgathering.
Louder. Closer. Cleaner.

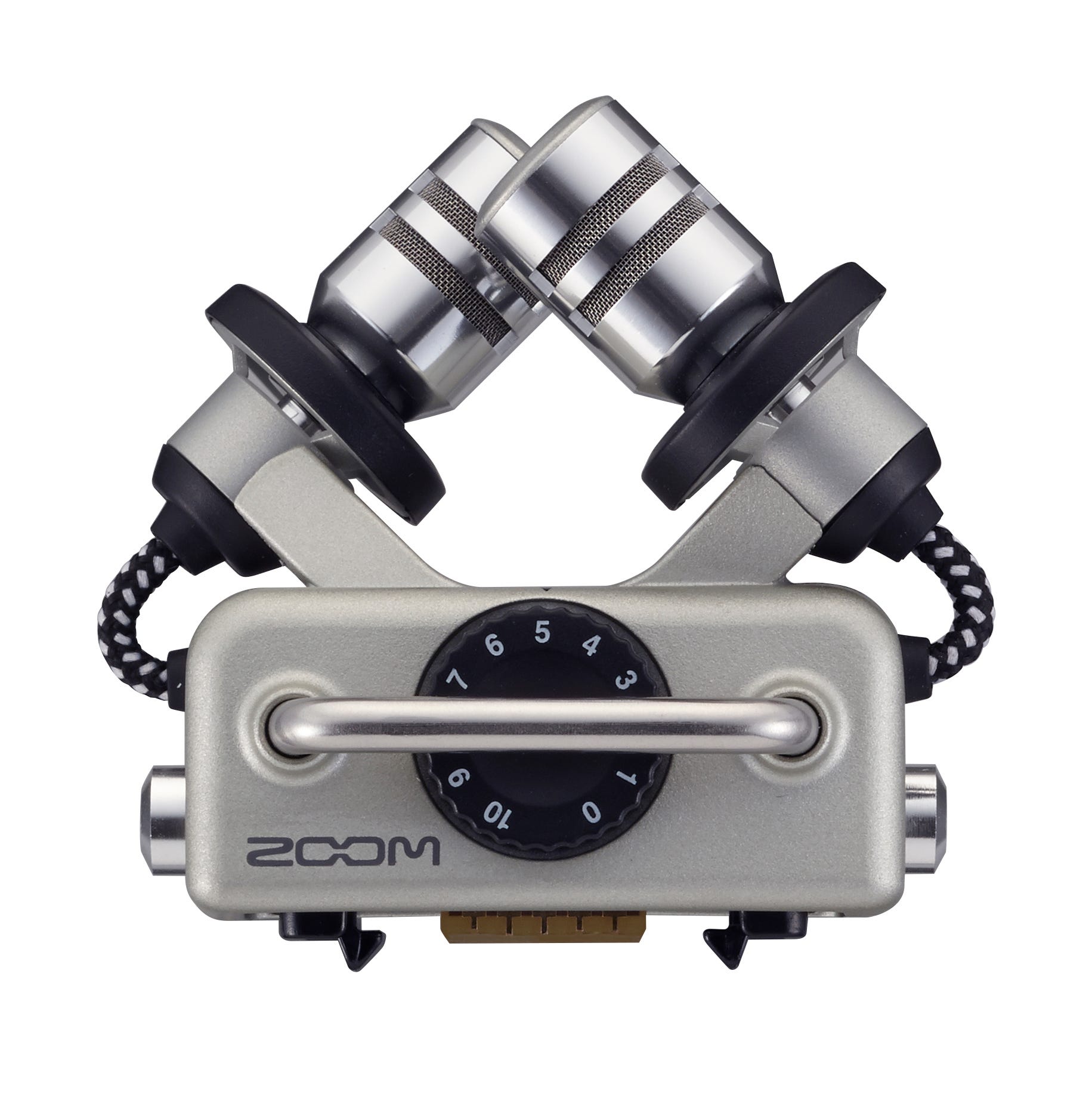

X/Y recording allows you to cover a wide area yet still capture sound sources in the center with clarity and definition, making it ideal for all types of live stereo recording. The XYH-5 X/Y microphone capsule included with the H5 provides two matched unidirectional condenser microphones set at a 90 degree angle. These are housed within an advanced shockmount that employs rugged external mic wires and rubberized material to isolate the unit from the H5 body and thus minimize vibration and handling noise. The design of the XYH-5 also allows the H5 to handle louder sounds than any other Handy Recorder model: 140 dB SPL, to be precise—equivalent to the sound of a jet aircraft from less than 200 feet away—enabling you to capture sounds louder, closer, and cleaner than you ever could before.
Use the Optimal Mic Every Time
The H5's modular design means that you can always use the best microphonefor every recording environment.For example, the Zoom XYH-6 large diaphragm X/Y mic capsule allows you to alter the angle of its microphones (choose 90 degrees for a more focused sound or 120 degrees for awider stereo image), making it a good choice for recording classical music and for capturing sound effects in the field.
Zoom's MSH-6 mid-side mic capsule is the perfect accessory for film and video work.In conjunction with the H5's built-in MS decoder, it enables you to alter the width of the stereo soundstage during recording or in postproduction, while still maintaining perfect mono compatibility.
Create audio that's as compelling as the story you're telling by plugging in an SGH-6 Shotgun capsule-a highly directional microphone designed for capturing sound at a distance, ideal for electronic newsgathering and for recording theatrical performances. Or connect an EXH-6 Dual XLR/TRS Combo capsule to give your H5 four discrete mic/line inputs, each with its own dedicated gain knob, allowing you to record the sound of four separate microphones simultaneously-great for everything from rehearsals to full-fledged music production.
You can also use dynamic, condenser or ribbon microphones with the H5. Phantom power of +12, +24 or +48 volts can be applied to each of the main inputs, as well as a 20dB pad for signal attenuation. Small condenser microphones requiring2.5 volts of Plug-In Power can be connected to the XYH-5's 1/8" Mic/Line In jack.
The Hardware
In addition to standard transport controls (stop, play/pause, record, rewind and fast-forward), the front panel of the H5 offers dedicated record arming buttons for each track, which double as mute switches during playback. A Hold switch disables all front panel buttons to prevent accidental operation during recording. The H5 can be attached to a camera strap or, with the use of our optional Hot Shoe mount, mounted directly to a DSLR or camcorder.
The H5 also provides everything you need to connect with the outside world. Dualcombo XLR/TRS inputs that can handle both mic- and line-level signals allow you to connect external microphones and line-level devices like mixers, portable music players, effects processors and electronic keyboards-even electric guitarsor basses equipped with active electronics.
Each H5 input has its own dedicated gain control knob, located beneath a protective bar that prevents accidental movement during handling. The supplied XYH-5 x/Y capsule also provides a secondary input for connecting stereo mic- or line-level signal via a ?" mini phone jack. The H5 supports a +4 dB (professional) input level and utilizes the same high-quality preamps as our flagship H6, ensuring great-sounding recordingsin all sonic environments.
There are lots of output options as well. A dedicated Line Out with adjustable volume allows you to send a stereo audio output from the H5 to the mic input of a video camera or other device without the need for an attenuator cable. In addition, there's a separate headphone output with a dedicated volume control. You can use both outputs simultaneously to route audio to your DSLR while monitoring over headphones.
There's also a Built-In Speaker for fast access playback, and a USB port which allows the H5 to be used as an audio interface for your computer or iPad. Just 2 AA batteries-either alkaline or rechargeable NiMH-are required for power. When using alkaline batteries, the H5 will operate for more than 15 hours, even while recording continuously. You can also use an optional AC adapter to power the H5 without batteries.
The H5 records directly to SD and SDHC cards up to 32 gigabytes. Maximum recording time is dependent upon the card size and file type; for example, the supplied 2GB SD card can hold approximately fourteen hours of stereo 320kbps MP3 files, three hours of stereo 16-bit / 44.1 kHz WAV files, or an hour of stereo 24-bit / 96kHz WAV files.
The Software
The H5 can operate in two different modes-choose stereo for two-track stereo recording, or multitrack for four-track recording (in either stereo pairs or individual mono tracks)-and it captures audio in the two most commonly used fileformats: WAV and MP3.
The WAV files recorded by the H5 can be 16- or 24-bit, with sampling rates of 44.1, 48, or 96kHz*. They are automatically time-stamped and thus Broadcast WaveFormat (BWF) compliant, allowing for precise synchronization in video post-production.
MP3 files, while slightly lower in fidelity, are much smaller than WAV files andare thus easier to email and post on social networking sites-allowing you to quickly and easily share your creations around the world. (* 96kHz sampling rate available in stereo mode only) The H5's onboard effects allow you to add polish to your recordings. Compressionand limiting compensate for fluctuations in input level, while a low-cut filter helps eliminate wind noise, blowing, and other kinds of low frequency rumble. There's even an onboard metronome and chromatic/guitar/bass tuner.
But the list of H5 features doesn't end there. There's playback looping, pitch change and variable playback speed (without pitch change) to help with phrase training. A pre-record function that keeps the H5 continuously recording in the background, keeping the previous two seconds before you hit RECORD.
There's an Auto-Record function that allows recording to begin automatically when a certain level of sound is detected and an equivalent Auto-Stop function that ends recording when the sound drops below a user-designated level, either immediately or up to 5 seconds later. And then there's Backup-Record-the ultimate safety net.* It enables the H5 to automatically record a duplicate set of stereo tracks with 12dB less input gain. Even if your original track is distorted, chances are the Backup version will be fine!
You can even use your H5 as an audio interface, complete with a Loop Back function that makes it easy to add narration to music playback. Simply connect the H5 to your computer or iPad** via USB, launch your favorite DAW or use the included Wavelab LE software, and start creating a masterpiece.
(* 44.1 and 48kHz WAV files only.) ( ** Apple Camera Connection Kit required. )
Zoom H5 Features

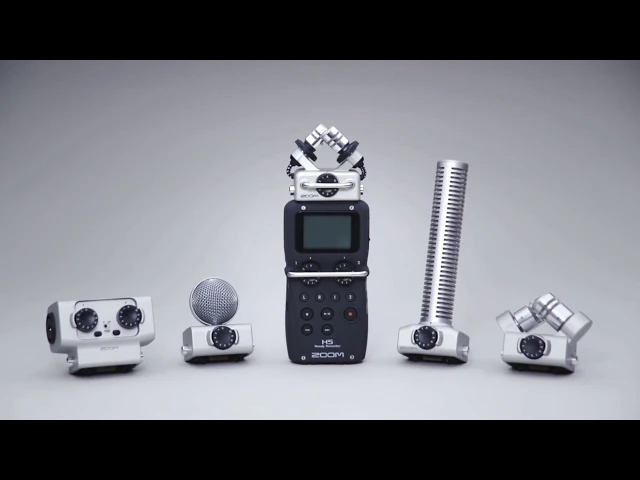

- Uses a system of interchangeable input capsules that can be swapped out as easily as the lens of a camera
- Includes detachable X/Y capsule (XYH-5) with extended signal capacity and shockmounted mics for reduced handling noise
- Compatible with all Zoom input capsules
- Four-track simultaneous recording
- Large backlit LCD display
- Records directly to SD and SDHC cards up to 32GB
- Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Two mic/line inputs with XLR/TRS combo connectors
- Analog-style gain controls for each input
- Protective "roll-bar" type covers prevent accidental movement of gain controls
- Hold switch disables front panel buttons to prevent accidental operation during recording
- Selectable phantom power for either or both main inputs: +12/+24/+48V
- Plug-in power (2.5 volts)
- Built-in effects, including low-cut filtering, compression and limiting
- Chromatic tuner and metronome
- Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
- MS decoding
- 20dB pads for either or both main inputs
- Multitrack to stereo internal mixdown
- Unique mono mix function to eliminate shifts in perspective during live recording
- Normalize, Divide and Trim editing
- Voice memo and up to 99 marks per recording
- A/B loop playback
- Variable playback speed, from 50% to 150%
- Variable pitch without affecting playback speed
- Multichannel and stereo USB audio interface for PC/Mac/iPad
- Loop Back operation for combining live audio input with computer playback
- USB port for SD card reader function and data exchange to and from computer
- Mountable directly to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
- Uses two standard AA alkaline or NiMH rechargeable batteries
- Over 15 hours of operation with alkaline batteries
- Optional AC adapter, wired remote control and hairy windscreen
Join VIP PRO
2 Day Delivery on thousands of items!
Request a Callback
Chat one-on-one with an expert
Sell or Trade your Gear
Get started in 3 easy steps
Product Documents
User ManualKey Features
- Capture pristine audio with the Zoom H5 recorder, perfect for music or podcasts.
- Get crystal-clear sound with the H5's X/Y mic, ideal for interviews and field recording.
- Enjoy extended battery life for long recording sessions; great for lectures & events.
- Use this digital field recorder as a USB audio interface for seamless studio integration.
- Compact & portable, the Zoom H5 ensures top-notch audio capture wherever you go.
- Bundled with a Rycote Mini Windjammer, get clean audio even in windy conditions.
What's in the box:
- Zoom H5 Recorder
- Operation manual
- XYH-5 X/Y mic capsule
- SD card (2GB)
- (2AA size (LR6) battery Not Included)
- USB cable
- Foam windscreen
- Case
- Steinberg Wavelab LE software download
- Rycote Mini Windjammer for Zoom H5
