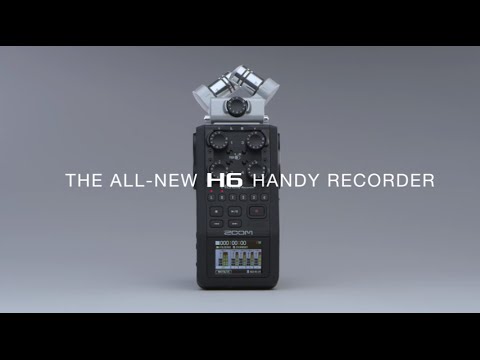

Zoom H6 Handy Recorder with Interchangeable Microphone System

The most versatile portable recorder ever.
Four interchangeable input capsules – X/Y, MS, Shotgun, and Dual XLR/TRS Combo – make the H6 the ultimate chameleon of the audio world, and its advanced preamps make it the best-sounding one too. Whatever your application – live recording, professional film/video work, live broadcast or electronic news gathering – the H6 can handle it with ease.

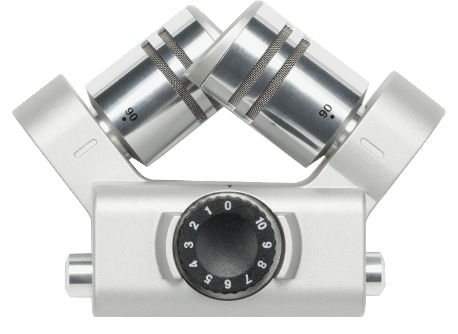

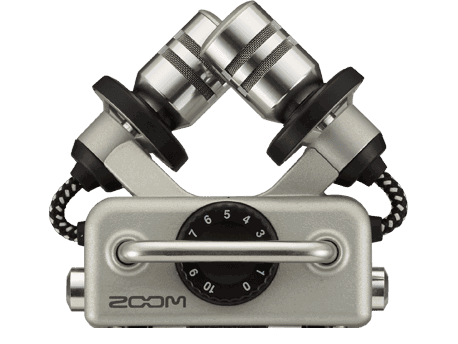

XYH-6 X/Y CAPSULE
A little X, a little Y, a whole lotta stereo.

The X/Y miking technique is optimal when you want to cover a wide area and still capture sound sources in the center with clarity and definition, making it great for all types of live stereo recording.

The XYH-6 X/Y capsule comes standard with the H6.

The capsule adds two matched high-quality unidirectional microphones to your H6 or H5. This kind of microphone is most sensitive to signal coming from directly in front, and less sensitive to signal coming from behind or from the sides; in technical terms, they are said to utilize a cardioid polar pattern.

Playing back stereo X/Y tracks in mono results in a fuller sound than you would get with one microphone, but if mono compatibility is critical (for example, in television production), the Mid-Side (MS) mic technique can be a better choice.

In this example, the XYH-6 X/Y capsule is being used to capture the overall performance in stereo. In addition, a stereo feed from the mixer is being sent to Inputs 1 and 2 in order to record the signal coming from the board, and a pair of external mics is connected to Inputs 3 and 4 to pick up the room and audience sound.

LOCATION VIDEOGRAPHY. Get the sound that completes the scene.

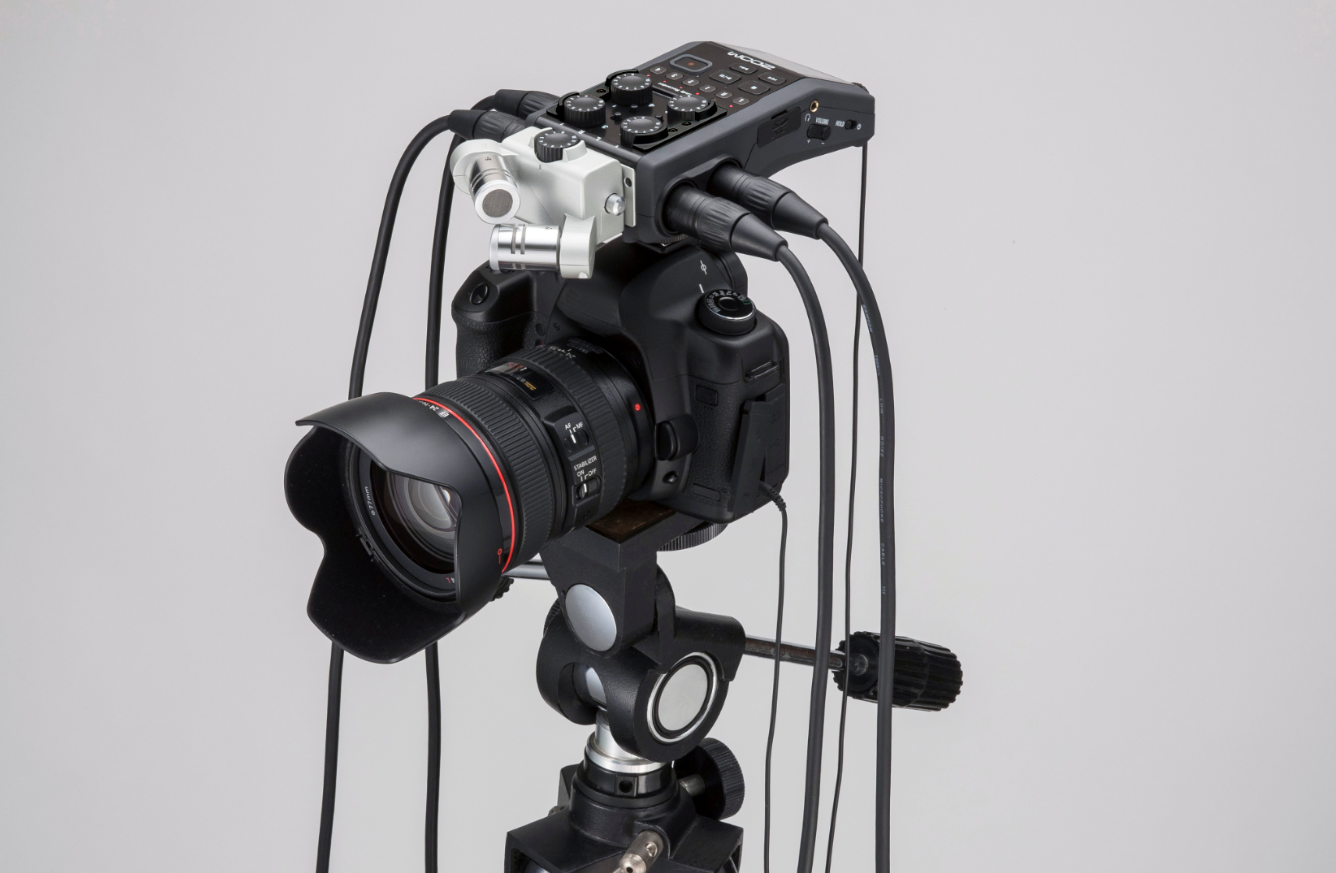

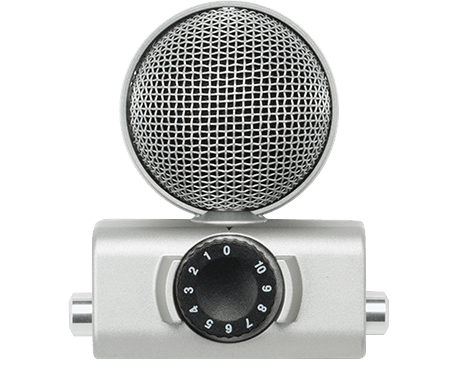

Whether you slide it onto your camera strap or attach it directly to your DSLR with our Hot Shoe mount, the H6 is the essential audio recorder for location videography. Its supplied MSH-6 mic capsule and onboard MS decoding, plus the ability to record up to 6 tracks simultaneously, gives you plenty of options in post-production.

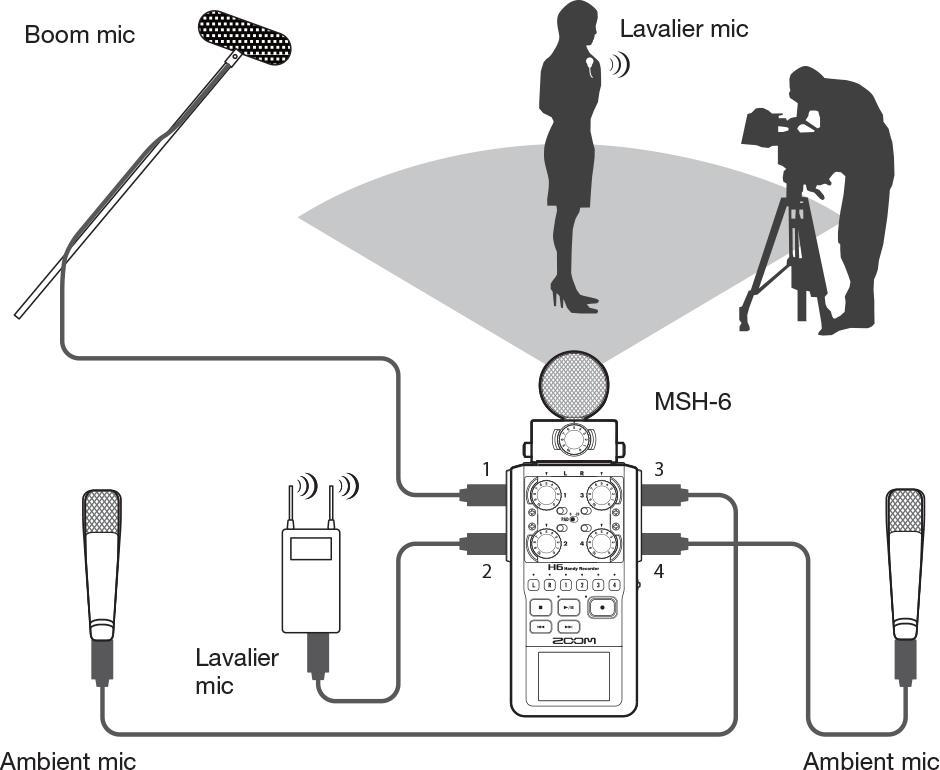

In this example, the MSH-6 MS capsule is being used to capture the main sound source in stereo, with external boom and lavalier mics (connected to Inputs 1 and 2) focused on the talent providing narration. Another pair of external mics is connected to Inputs 3 and 4 and are being used to record a second stereo image, this one of the other performers in the scene. By using the MS capsule, you can later use the H6's onboard MS decoder to adjust the width of the main stereo image in post-production.

ELECTRONIC NEWSGATHERING. Deliver the full story, down to the last detail.

Extend your range with the optional SGH-6 Shotgun mic. Get every word of that headline-making interview. Capture breaking news with maximum impact, then mix and prepare the audio for broadcast while still in the field.

In this example, the SGH-6 Shotgun mic capsule is being used to capture the news event itself, recorded on the L/R tracks. Two external handheld mics for the interviewer and interview subject are connected to Inputs 1 and 3, with backup external lavaliers connected to Inputs 2 and 4. The H6’s low-cut filter can be used to reduce wind noise and its compressor/limiter employed to condense the dynamic range and thus make the audio more television-friendly. The six recorded tracks can then be mixed down internally to a stereo MP3 file for microwave or satellite transmission to the broadcast facility.

MAKING MUSIC. Make every chord, every note, every riff really sing.

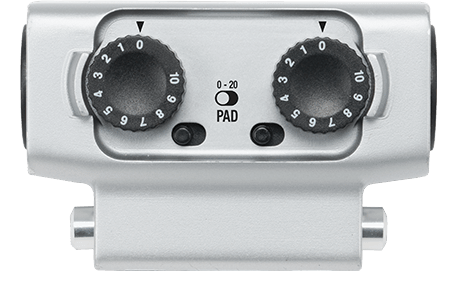

Plug in the optional EXH-6 Dual XLR/TRS capsule and your H6 becomes a personal 6-track studio with six discrete line- or mic-level inputs, each with its own volume control and pad. Record and overdub up to 99 takes in high-resolution audio, then mix down to a stereo MP3 for posting to your favorite website.

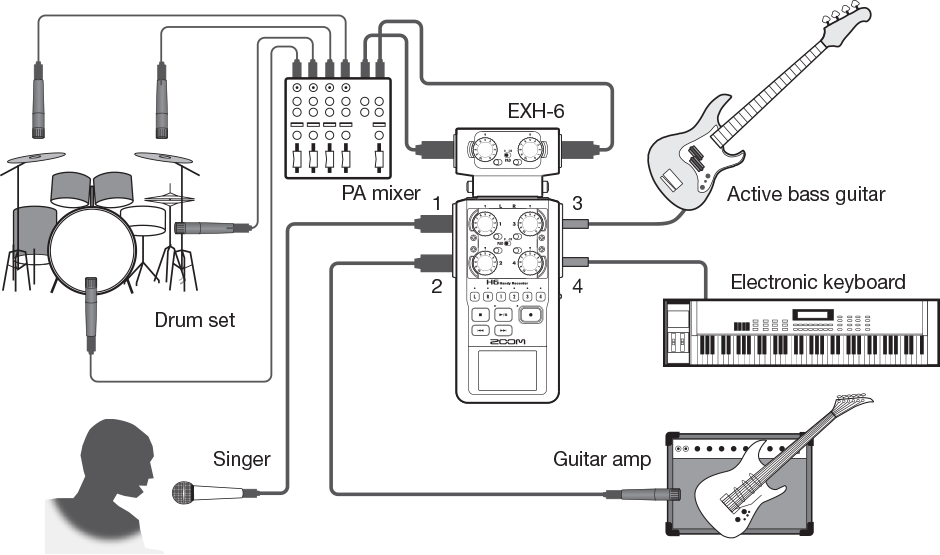

In this example, a stereo submix of the mics covering the drum kit is being fed from a PA mixer to the L/R inputs of the H6 via an EXH-6 Dual XLR/TRS Combo capsule. The four main H6 inputs are used as follows: the lead singer's mic is connected to Input 1; a microphone positioned in front of the guitar amp is connected to Input 2; a direct signal from the bass player's active electric bass is connected to Input 3; and an electronic keyboard is connected to Input 4. Thus, each instrument and vocal is receiving a track of its own (or, in the case of the drums, two tracks). The H6's built-in tuner ensures that everyone in the band stays perfectly in tune, and its metronome will help keep even the unsteadiest drummer on the beat.

Inputs

The H6 offers four main inputs (1-4), plus two additional inputs (L, R) that are derived from whichever capsule (X/Y, MS, Shotgun, or Dual XLR/TRS Combo) is plugged into the unit. The supplied XYH-6 X/Y capsule also provides a secondary input for connecting an external mic- or line-level signal via a stereo ⅛” Mic/Line In mini phone jack. When a connection is made to that jack, signal from the X/Y microphones is muted.

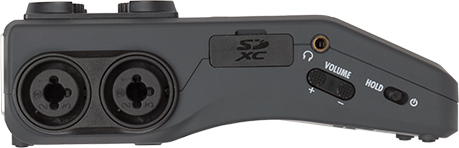

All four main H6 inputs (inputs 1-4) are combo connectors that can accept either XLR or ¼” balanced or unbalanced phone cables. They can handle both mic- and line-level signals, which means that you can connect either external microphones or line-level devices like mixers, portable music players, electronic keyboards, or electric guitars or basses with active electronics (passive electric guitars or basses can also be connected with the use of a mixer or effects device). Internal switching contacts automatically detect the circuit of choice.

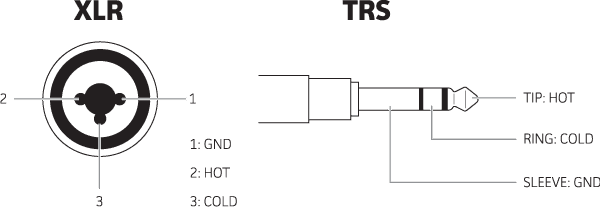

On the H6, all connectors use the industry standard Pin 2 hot on XLR connectors and Tip hot on TRS connectors, as shown here:

Each of the six inputs (that is, 1-4 as well L, R) have a dedicated gain control knob as well as a -20dB pad, allowing you to prevent distortion even when high-level signals are introduced. In fact, with the use of the Pad switch, the H6 can input a signal 30dB louder and 14dB softer than any other Handy Recorder model. In addition, all capsules utilize higher voltage preamps (5 volts instead of the more commonly used 3 volts) for distortion free recording, even at high volumes. A built-in instrumentation amp allows signals to be transmitted with minimal noise even when long cables are used.

If you’re using high-quality condenser (powered) microphones with the H6, no problem—a simple menu option allows the unit to provide Phantom Power (either +12, +24, or +48 volts) to any or all of the main inputs (inputs 1-4). Inexpensive condenser microphones requiring Plug-In Power (2.5 volts) can be connected to the X/Y capsule’s stereo 1/8” Line In jack.

Outputs

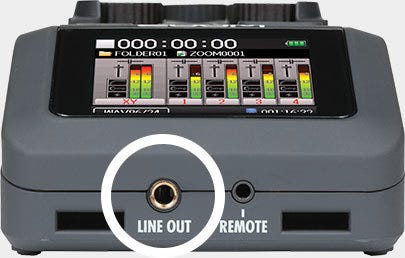

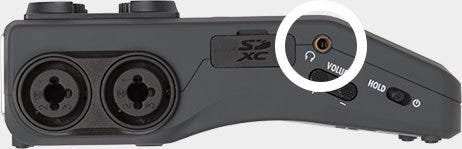

The H6 Line Out is an unbalanced stereo 1/8” phone jack, located on the bottom of the H6, beneath the LCD display. It carries the analog stereo output signal, as determined by the H6’s internal mixer.

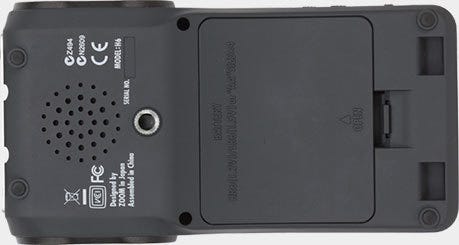

The H6 even has a built-in speaker, located on the underside of the unit, for fast monophonic monitoring of the recorded signal without the need to make any connections whatsoever. This speaker is automatically disconnected when connection is made to either the Line Out or Headphone output.

The H6 provides an arsenal of effects that allows you to add polish to your recordings and compensate for any problems or limitations in the acoustics of the recording environment.

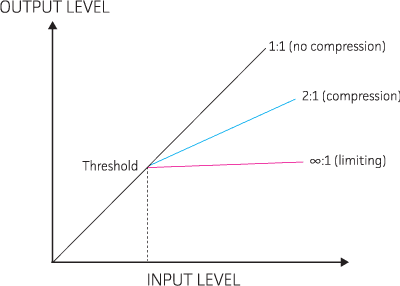

Compression and limiting compensate for fluctuations in level; in essence, they act like an automatic volume control, reducing the level of louder sounds (that is, the sounds above a threshold point). The main difference between the two is that a limiter reduces louder sounds more severely.

A low-cut filter allows you to remove signal below a certain user-designated frequency (called a cutoff frequency). This is useful for eliminating pops, wind noise, blowing, transmitted resonance from an onstage mic stand and other kinds of low frequency rumble.

In addition, there’s an onboard metronome and chromatic / guitar / bass tuner—both handy tools when recording musical content.

The H6 allows you to choose from three compressor settings and three limiter settings. The two “General” settings (Comp1 and Limiter1) are all-purpose settings that will work well on most kinds of program material. The Comp2 and Comp3 presets are optimized for use with vocals and drums, respectively, while the Limiter2 and Limiter3 presets are optimized for use in live concert recording and small room “studio” recording, respectively.

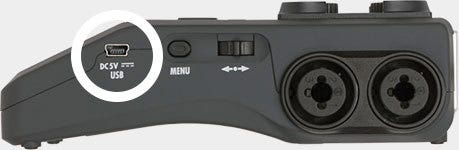

The H6’s USB port allows it to send and receive digital data. Connect the H6 to your laptop or desktop computer via USB, launch your favorite DAW or use the included Cubase LE software, and start laying down your tracks. You can even connect the H6 to an iPad (camera connection kit required).

When the H6 is set to “Stereo Mix” in the USB menu, it acts as a 2-input / 2-output interface; when set to “Multi Track,” it acts as a 6-input / 2-output interface. The H6’s onboard INPUT&OUTPUT mixer allows you to create a custom stereo or six-track mix for output via USB, with independent control over the level and panning of each track, as well as access to effects like low-cut filtering, compression and limiting. In addition, signal that is input to the H6 can be monitored directly before it passes through the connected computer or iPad for zero latency (that is, without any delay). There’s also a handy Loop Back mode that allows you to blend stereo signal coming from the computer or iPad with signal coming into the H6 inputs, useful for live streaming via the Internet or for adding narration to a musical backing track.

• Interchangeable input capsules that can be swapped out as easily as the lens of a camera
• Six-track simultaneous recording
• Four mic/line inputs with XLR/TRS combo connectors
• Gain controls (real knobs!) and -20dB pads for each input
• Phantom power for all main inputs: +12/+24/+48V
• Large full-color LCD display, angled so it’s easy to read in all environments
• Records directly to SD, SDHC and SDXC cards up to 128GB
• Up to 24-bit /96kHz audio in BWF-compliant WAV or a variety of MP3 formats
• Auto-record, Pre-record and Backup-record functions mean that you’ll never miss that perfect take
• Multitrack to stereo internal mixdown
• Independent monitor and playback mixes
• Virtual VU meters
• Voice memo and up to 99 marks per recording
• Overdubbing, up to 99 takes
• Built-in effects, including low-cut filtering, compression and limiting
• Onboard MS decoding
• Normalize, Divide and Trim editing
• Chromatic tuner and metronome
• A/B loop playback
• Variable playback speed, from 50% to 150%
• Variable pitch per track without affecting playback speed
• USB port for data exchange to and from computer
• Multichannel and stereo USB audio interface for PC/Mac/iPad
• Camera strap mounts
• Mountable directly to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
• Accepts standard AA alkaline or NiMH rechargeable batteries
• Over 20 hours of operation with 4 AA alkaline batteries
