Just Reduced

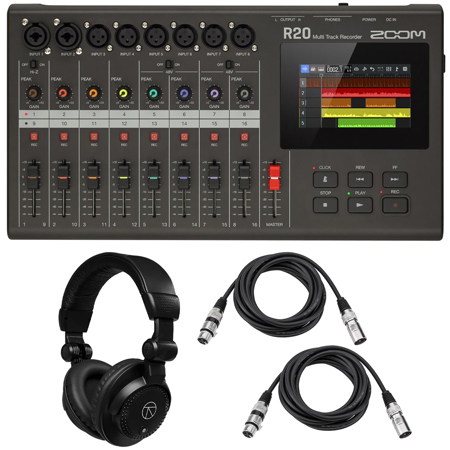

Zoom R20 Portable Multitrack Recorder, Bundle with TAPH100 Monitor Headphones and 2x 10' XLR M to F Microphone Cable

SKU: ZOR20A MFR: ZR20 A
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Zoom R20 Portable Multitrack Recorder
    Zoom R20 Portable Multitrack Recorder
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 10'
    H&A Value Series XLR M to F Professional Microphone Cable - 10'

    Qty: 2

  • +
  • Show more

Key Features

  • Capture pristine audio with 8-track simultaneous recording, perfect for musicians and podcasters.
  • Enjoy crystal-clear sound quality with 24-bit recording, bringing your projects to life.
  • Experience ultimate portability with this compact digital field recorder, ideal for on-the-go creators.
  • Benefit from extended battery life, ensuring your recording sessions are never cut short.
  • Rely on the robust durability of this recorder, built to withstand demanding field environments.
  • Effortlessly navigate features with the intuitive 4.3" color touchscreen, enhancing ease of use.
See More Product Details
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2024-01-19T12:55:20

Rated 5 out of 5

Great mixer for a great price!

I absolutely love it! It does exactly what I need it to, and the sound quality is great. I love the effects processor, and the tones I can get with my guitar.

JEREMY L.

2022-07-03T08:25:39

Rated 4 out of 5

R20

Does the job, not bad for the price

Markel A.

Zoom R20 Specifications

Inputs/Outputs

Inputs/Outputs

Jump to...
  • Mic/Line (Mono)

    8x

  • Master Out

    1x

Inputs: Mic/Line (Mono)

Jump to...
  • Phones

    1x

  • Connectors

    XLR/TRS combo jacks x 2
    XLR x 6
    (XLR: 2 HOT/TRS: TIP HOT ¼-

  • Input gain

    -3 - +40 dB

  • Input impedance

    XLR: 3.9 k Ohm
    TRS: 5.3 k Ohm/1 M Ohm (when Hi-Z is ON, for INPUT 1 only)

  • Maximum input level

    +4 dBu (@0 dBFS)

  • Phantom power

    +48 V (INPUTS 5-8, switchable in pairs)

  • Equivalent input noise

    -121 dBu or less (IHF-A) with +40dB/150 Ohm input

  • Frequency response

    -1.0 dB: 20 Hz - 20 kHz

Outputs: Master Out

Jump to...
  • Connectors

    2 TRS phone jacks (balanced)

  • Maximum output level

    +14 dBu

  • Output impedance

    200 Ohm

Outputs: Phones

Jump to...
  • Connector

    1x standard stereo phone jack

  • Maximum output level

    20 mW + 20 mW (into 32 Ohm load)

  • Output impedance

    33 Ohm

Track Settings

Jump to...
  • EQ

    High: 10 kHz, +/-12 dB, shelving
    Middle: 2.5 kHz, +/-12 dB, peaking
    Low: 100 Hz, +/-12 dB, shelving

Recorder

Jump to...
  • Max. simultaneous recording tracks

    8x

  • Max. simultaneous playback tracks

    16x

  • Recording format

    44.1kHz, 16/24-bit, mono/stereo WAV

  • Recording media

    4-32GB cards compatible with the SDHC specification
    64-512GB cards compatible with the SDXC specification

Effects

Jump to...
  • Max. number of simultaneous effects

    3 effects
    One insert effect on one channel or one send effect available to all tracks

  • Patch memories

    50

  • Tuner

    Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD

Metronome

Jump to...
  • Time signatures

    3/4, 4/4, 6/8

  • Tempo range

    40.0-250.0 BPM

Rhythm Loops

Jump to...
  • Sound source format

    PCM

  • Number of loops

    150 or more

  • Polyphony

    8x

  • Sound source format

    FM

  • Number of sound types

    18 (including PCM drum kit)

Display

Jump to...
  • Display

    4.3" (480 x272) full-color touchscreen LCD

USB: Connector

Jump to...
  • Connector

    USB Type-C
    Use a USB cable that supports data transfer
    USB bus power is not supported

USB: Audio Interface Operation

Jump to...
  • Stereo mix

    USB 2.0 Full Speed
    44.1kHz, 24-bit
    2-in/2-out

  • Multitrack

    USB 2.0 High Speed
    44.1 kHz, 16/24-bit
    8-in/4-out

USB: Mass Storage Operation

Jump to...
  • Host/Device

    USB 2.0 High Speed (5V/500mA power supplied when host)

USB: Guitar Lab Connection

Jump to...
  • Guitar Lab Connection

    USB 1.1 Full Speed

USB: MIDI Keyboard Connection

Jump to...
  • USB MIDI Keyboard Connection

    USB 1.1 Full Speed (5V/500mA power supplied)

USB: Daw Connection

Jump to...
  • DAW Connection (control surface)

    USB 1.1 Full Speed

  • Remote

    Dedicated wireless adapter (ZOOM BTA-1)

  • Power Requirements

    AC adapter (ZOOM ZAD-1220): 12 V/2.0 A

  • Power Consumption

    11 W maximum

Physical

Jump to...
  • Dimensions (W x D x H)

    External: 14.8 x 8.11 x 2.28" (378 x 206 x 58mm)

  • Weight

    2.93 lbs (1.33kg)

  • UPC Codes

    192223295360 | 884354025892 | 192223227576 | 192223075474

6 Accessories for Zoom R20 Portable Multitrack Recorder, Bundle with TAPH100 Monitor Headphones and 2x 10' XLR M to F Microphone Cable

  • All Accessories (6)
  • Memory & Storage (3)
  • Bluetooth Accessories (1)
  • Cables & Adapters (1)
  • Microphones & Audio (1)

About Zoom R20

FEATURED REVIEWS

Great mixer for a great price!

By JEREMY L.

I absolutely love it! It does exactly what I need it to, and the sound quality is great. I love the effects processor, and the tones I can get with my guitar.

A groundbreaking innovation in the world of music production, the R20 Portable Multitrack Recorder is a compact, solid-state device that offers unparalleled ease of use and superior sound quality. Designed for musicians, producers, and other audio professionals, this device is equipped with an intuitive touchscreen interface that simplifies tracking, editing, and mixing, allowing you to concentrate on creating exceptional music.

The R20 stands out with its advanced preamps and the lowest noise floor of any multitrack recorder in Zoom's portfolio. It boasts six XLR inputs, two combo inputs, and the capacity to record on 16 tracks simultaneously, making it an ideal choice for a range of users, from solo artists to full bands.

The 4.3-inch color LCD touchscreen interface of the R20 offers seamless navigation and editing. Color-coded faders, gain dials, and touchscreen track regions enhance your workflow by ensuring you're always adjusting the correct channel.

The R20's interface also supports intuitive editing, allowing you to cut, copy, combine, and loop with ease. It comes with a full MFX processor compatible with Guitar Lab software, offering professional effects such as EQ and compression to refine your tracks and mixes.

With 30 genres, 150 rhythm patterns, and song form variations, the R20 is as versatile as a live drummer. It also features 18 built-in synth sounds, allowing you to add rich sonic textures using a MIDI keyboard via USB-C or the touchscreen.

The R20 also supports the import and playback of standard MIDI files, enabling you to incorporate bass lines, melodies, piano parts, and more into your tracks. It records directly to SDHC or SDXC cards up to 1TB, providing ample space for your music projects.

For monitoring and playback, the R20 includes a headphone jack and dedicated outputs for mixing on your preferred monitors. It also features a locking AC adapter for secure connection, a fully adjustable click track, and a wireless control app for iOS devices.

As the first multitrack recorder to offer accessibility for the visually impaired, the R20 app features VoiceOver and VoiceOver Gestures. With its comprehensive range of features and advanced technology, the R20 Portable Multitrack Recorder is a game-changer in the music production industry.

Zoom R20 Features

  • 4.3" Full-color LCD touchscreen display
  • Easy-to-use DAW-inspired interface
  • Record up to 16 tracks (8 simultaneously)
  • Eight XLR mic preamps, including two mic/line/instrument combo jacks
  • Hi-Z available on input 1 and 48V phantom power available on inputs 5-8
  • Color-coded volume faders, gain knobs and tracks
  • Onboard editing and built-in effects
  • Pre-loaded drum loops
  • Optional BTA-1 Bluetooth enables wireless control via the R20 Control App
  • USB-C audio interface up to 8-in / 4-out
  • Records directly to SDHC cards up to 32GB and SDXC cards up to 1TB
  • New locking-type AC adapter (ZAD-1220)
  • Up to 24-bit /44.1kHz audio in BWF-compliant WAV
  • Compatible with Guitar Lab software for Mac/Windows PC

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture pristine audio with 8-track simultaneous recording, perfect for musicians and podcasters.
  • Enjoy crystal-clear sound quality with 24-bit recording, bringing your projects to life.
  • Experience ultimate portability with this compact digital field recorder, ideal for on-the-go creators.
  • Benefit from extended battery life, ensuring your recording sessions are never cut short.
  • Rely on the robust durability of this recorder, built to withstand demanding field environments.
  • Effortlessly navigate features with the intuitive 4.3" color touchscreen, enhancing ease of use.

What's in the box:

  • Zoom R20 Portable Multitrack Recorder
  • AC Adapter (ZAD-1220)
  • Steinberg Cubase LE Software
  • Quick Start Guide
  • Zoom 1 Year Limited Warranty
  • Bundle Includes:
  • 2x H&A 10' Value Series XLR M to F Professional Microphone Cable
