Zoom ARQ AR-48 Aero RhythmTrak All-In-One Production and Performance Instrument

SKU: ZOZAR48 MFR: AR48
Earn VIP Reward Points

Key Features

  • Unleash your creativity with the ARQ AR-48, a complete production and performance instrument.
  • Explore endless sound design options with the AR-48's versatile ring controller and base station.
  • Seamlessly integrate with your favorite DAW using USB MIDI connectivity for enhanced workflow.
  • Craft intricate sequences effortlessly with the intuitive sequencer, perfect for live performances.
  • Experience robust build quality ensuring your Aero RhythmTrak stands up to rigorous use.
  • Modular design allows for flexible configurations, adapting to your unique music production needs.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$79.99

5 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Zoom AR-48 Specifications

  • Base Station: Input

    Audio Input:
    Connector type Stereo mini jack (unbalanced)
    Input gain +10 to -65 dB
    Input impedance 10 kOhms

  • Base Station: Outputs

    Output L/R:
    Connector type Standard mono phone jacks (unbalanced)
    Output impedance 100 Ohms

    Phones:
    Connector type Stereo mini jack (20mW x into 32 Ohms load)
    Output impedance 10 Ohms

  • Base Station: Dynamic Range

    Analog IN (AD): 92 dB typ (IHF-A)
    Phone OUT (DA): 102 dB typ (IHF-A)
    Main OUT (DA): 106 dB typ (IHF-A)

  • Base Station: Recording Media

    16MB-2GB SD cards, 4GB-32GB SDHC cards, 64GB-512GB SDXC cards

  • Base Station: MIDI IN/OUT

    MIDI OUT (5-pin DIN jack) and USB MIDI

  • Base Station: Power

    5V 1A AC adapter (AD-14)

  • Base Station: Power Consumption

    Base Station: 2 W maximum
    When powering Ring Controller: 3 W maximum

  • Base Station: Displays

    128x32 dot-matrix LCD x 2

  • Base Station: Interface

    Type B:
    USB 2.0 MIDI class/mass storage class operation

    Supported operating systems:
    Windows 7 (SP1 or later), Windows 8 (including 8.1) or later, Windows 10, Mac OS X 10.8 or later

    Minimum Specifications:
    Chipset that includes USB 2.0 as standard, Intel Core i3 or faster CPU

    Type A:
    USB 2.0 MIDI class operation
    For Ring Controller connection

  • Ring Controller: Sensors

    PAD pressure sensors, 3-axis accelerometer

  • Ring Controller: Power

    USB bus power

  • Ring Controller: Batteries

    2 AA alkaline or rechargeable nickel-metal hydride (NiMH) batteries

  • Ring Controller: Battery operation time

    About 8 hours (when BTA-1 installed)

  • Ring Controller: Power consumption

    1W maximum

  • Ring Controller: Trigger pads

    Number of pads: 16
    Velocity curves: 4 types

  • Ring Controller: Interface

    Type B:
    USB 2.0 MIDI class/ mass storage class operation

    Supported operating systems:
    Windows 7 (SP1 or later), Windows 8 (including 8.1) or later, Windows 10, Mac OS X 10.8 or later

    Type A:
    USB 2.0 MIDI class operation
    For Ring Controller connection

  • Dimensions (DxWxH)

    Base Station: 259 x 257.6 x 63mm (10.20 x 10.14 x 2.48")
    Ring Controller: 280.2 x 278.8 x 29.7mm (11.03 x 10.98 x 1.17")

  • Weight

    Base Station: 1123g (39.61 oz) (main unit only)
    Ring Controller: 416g (14.67 oz) (main unit only)

  • UPC Code

    884354017934

2 Accessories for Zoom ARQ AR-48 Aero RhythmTrak All-In-One Production and Performance Instrument

  • All Accessories (2)
  • Stands (1)
  • Keyboard Benches (1)

About Zoom AR-48

A FUN NEW WAY TO CREATE ELECTRONIC MUSIC THE ARQ AR‑48

Making music should be fun, easy, and freeing. With the Zoom ARQ AR-48, it can be that and so much more.
The AR-48 lets you craft music you can be proud of. Use its 460 built-in sounds or use your own samples to create innovative beats and sequences. And its unique design gives you the freedom to perform in brand new ways.

Create Your Own Music
You can load your own samples into ARQ or choose from its 460 drum, instrument,and vocal sounds. Explore a variety of genres—from hip hop and house to techno and dubstep—to craft the music you want.

Get Ready to Sequence

Capture what you’re playing in real-time by hitting record. Or use the dedicated step-input buttons to quickly program a beat. Start with a kick and snare, then add hi-hats and toms. With the AR-48’s unique design, it’s easy to see your sequence as a true loop.

A New Way to Produce

The ARQ offers a variety of fun and exciting ways to produce and perform your music. You can play and remix your music live. You can also play over your patterns in real-time using the Ring Controller or use the MIDI out to control external instruments.

Sample Tracks and Play

With the AR-48's audio capture function, you can sample your favorite tracks and create beats around them to your liking.

Accelerate Your Performance

To create more expressive performances, remove the Ring from the Base Station and trigger delay, reverb and filters effects with the accelerometer. You've never performed quite like this!

Craft new music with all hands on deck

Craft new music with all hands on deck.

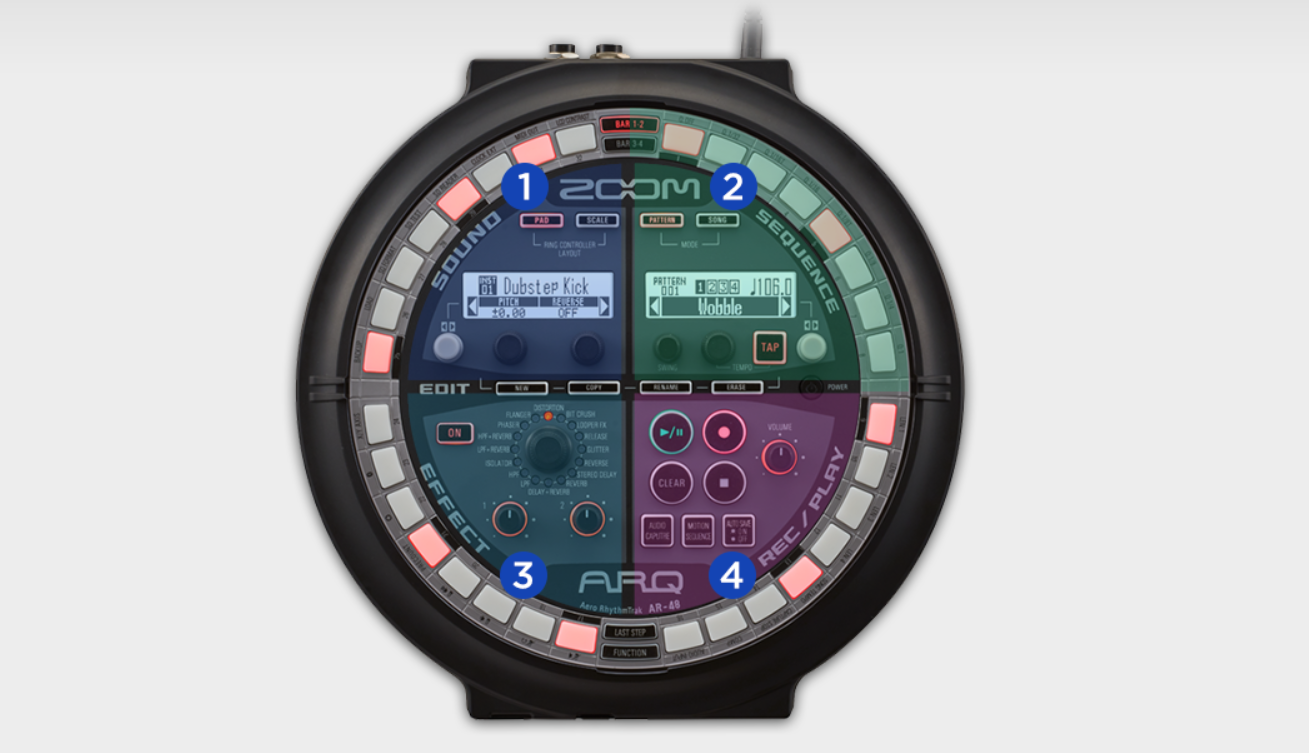

The Base Station is the control center of the AR-48. Let's explore how it works:

Sound ( 1 )
The Sound section features 460 customizable instrument sounds and a synthesizer with three sub-oscillators. Sound parameters can be changed instantly and are easily visible on the section’s dedicated LCD screen.

Sequence ( 2 )
In the Sequence section, you can access and edit Songs or Pattern sequences, as well as save up to 384 patterns and 99 songs. Using the backlit LED buttons on the built-in 32-step loop sequencer, you can create musical patterns in real-time or add Swing or Tempo to any sequence of your choice.

Effect ( 3 )
The Effects section offers 16 Master Effects, including reverb, high- and low-pass filters, delay, bit crush, and more. Use them during song and pattern playback, in the studio, or during live performances.

Rec/Play ( 4 )
Record and save your music in seconds in the Rec/Play section. You can also use audio capture mode, record motion sequences, and save your work automatically

Put an all-new spin on your music.

Put an all-new spin on your music.

The AR-48’s Ring Controller lets your personality shine through. Have a look at its features:

16 Programmable Pads
The ARQ features 16 pressure-sensitive pads with programmable LEDs that allow you to play instrument sounds, trigger samples, and record sequences.

3-Axis Accelerometer
With the 3-axis accelerometer, you can use movement to trigger effects like delay and reverb. Each axis can be assigned to adjust any of your chosen effects parameters.

Easy Controls
Dedicated buttons let you play/pause tracks, solo and mute sections, as well as split, arpeggiate, and change effects. You can also switch between PAD and SCALE layout using the Ring’s dedicated buttons. The Grip Mode button prevents you from accidentally triggering pads when you pick up the Ring.

Optional Bluetooth Adapter
An optional BTA-1 Bluetooth adapter lets you use the Ring Controller wirelessly during live performances.

Create More with Ableton

Create More with Ableton
Includes Ableton Live 9 Lite With ARQ AR-48 and Ableton Live 9 Lite, you have everything a modern music creator needs. Record your tracks quickly and intuitively, enhancing them with studio-quality effects like EQ, compression, reverb, delay, chorus, filter and more. Plus, Ableton's performance workflows let you take your music to the stage where you can mix and record live.

Inputs and Outputs

Inputs and Outputs

The AR-48 features two ¼” stereo outputs, a 3.5 mm audio output, a 3.5 mm audio input, and a MIDI out. Additionally there’s an SD card slot, an optional BTA-1 Bluetooth connector, and a USB port. You can assign parameters to the MIDI Out (via the USB-MIDI port) to integrate the AR-48 with a computer for recording with Ableton.

With the AR-48, you've got everything you need to create music that's fun, original and freeing

Features

Zoom ARQ AR‑48 Features

• All-in-one drum machine, sequencer, synthesizer, looper, clip launcher, MIDI controller and live performance instrument
• Includes 460 drum machine, synth and instruments sounds
• Import WAV files into the internal synth engine's oscillator
• 16 adjustable Master Effects, including reverb, filters, delay and more
• Use the Ring Controller as a handheld aerial instrument
• Onboard 32-step loop sequencer for creating individual patterns or complete songs
• Programmable synthesizer engine with three sub-oscillators
• 16 velocity and pressure-sensitive pads with programmable color LEDs
• Grip Detection automatically prevents accidental note triggering
• Built-in 3-axis accelerometer for triggering arpeggiator sounds and effects
• Dedicated buttons for record/play/pause, solo, mute, split, arpeggiate and change effects
• 3.5 mm mini stereo input for phrase recording and loop creation
• Audio capture from patterns and songs, from SD card or from incoming audio signal
• Play sounds chromatically or choose from dozens of preset scales in any key
• Dual 1/4" line outputs, separate 3.5 mm mini stereo headphone output with dedicated volume control and MIDI output
• USB port for computer integration and SD card slot

Product Documents

User Manual

Key Features

  • Unleash your creativity with the ARQ AR-48, a complete production and performance instrument.
  • Explore endless sound design options with the AR-48's versatile ring controller and base station.
  • Seamlessly integrate with your favorite DAW using USB MIDI connectivity for enhanced workflow.
  • Craft intricate sequences effortlessly with the intuitive sequencer, perfect for live performances.
  • Experience robust build quality ensuring your Aero RhythmTrak stands up to rigorous use.
  • Modular design allows for flexible configurations, adapting to your unique music production needs.

What's in the box:

  • Zoom AR-48 Base Station
  • AR-48c Ring Controller
  • AD-14 AC Adapter
  • Ableton Live 9 Lite Download Card
  • Zoom 1 Year Limited Warranty
