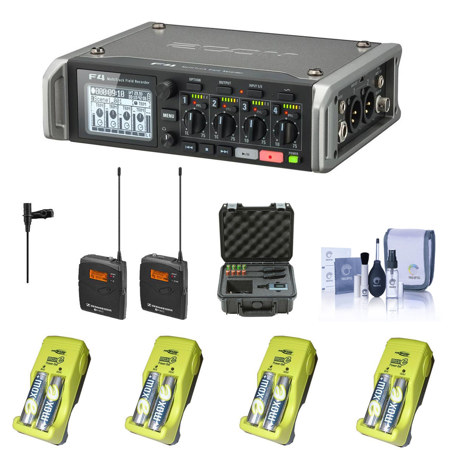

Zoom F4 Multitrack Field Recorder with Timecode - Bundle With Sennheiser ew 112-p G3-A Wireless Kit EK 100 G3, 8x AA Ni-MH Batteries With Charger, SKB iSeries Sennheiser SW Mic Case, Cleaning Kit

SKU: ZOZF4D

This item is no longer available.

Overview
Compare
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2019-02-10T17:25:15

Rated 5 out of 5

Best 6 channel field recorder out there!

Nice little unit. But not so little. I bought the EXH-6 module to make it a 6 channel unit! This unit fits my needs! Taking my productions to the next level.

ken f.

2018-03-27T15:31:10

Rated 5 out of 5

Absolutely excellent

For this price, you really can't do any better. Pre-amps are quiet af. Would buy again.

Leonel M.

2017-07-24T05:08:37

Rated 5 out of 5

Nearly perfect

Really great quality audio and enough inputs to satisfy my needs.

Dustin S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

About Zoom F4

FEATURED REVIEWS

Best 6 channel field recorder out there!

By ken f.

Nice little unit. But not so little. I bought the EXH-6 module to make it a 6 channel unit! This unit fits my needs! Taking my productions to the next level.

Absolutely excellent

By Leonel M.

For this price, you really can't do any better. Pre-amps are quiet af. Would buy again.

HOLLYWOOD SOUND GOES INDIE

THE ZOOM F4Professional Field Recording Has Never Been So Accessible.

Creators are making more waves in film than ever before. Thanks to affordable technology and distribution channels like YouTube, we’re ushering in a new era of creativity…and it’s only just begun.
The Zoom F4 propels your film's sound to a whole new level. With 6-input/8-track recording, super-low-noise mic preamps, and time code with pinpoint accuracy, the F4 offers Hollywood sound at an indie budget.

The Essentials For Professional Recording

Super-low-noise microphone preamps

Super-low-noise microphone preamps
The F4 is equipped with our highest-quality mic preamps. Like the F8, the F4’s mic preamps enable pristine recording and playback at resolutions up to 24-bit/192 kHz. Its impressive audio specs include an extremely low noise floor (-127 dBu EIN) and high gain (up to 75 dB), with +4 dB line-level inputs.

TCXO Time Code

TCXO Time Code
For precise audio/video syncing, the F4 utilizes a Temperature Compensated Crystal Oscillator (TCXO) that generates time code at 0.2 ppm accuracy—a first for this price point. The F4 supports all standard drop frame and non-drop formats, and can jam sync to time code provided by external devices. Standard BNC connectors enable easy integration into any rig.

Advanced onboard limiters

Advanced onboard limiters
Advanced onboard limiters provide overload protection which lets you capture audio in a wide range of dynamic sound environments. Limiting can be applied to all four channels simultaneously at full resolution, with 10 dB of headroom and controls for setting threshold, attack, and release.

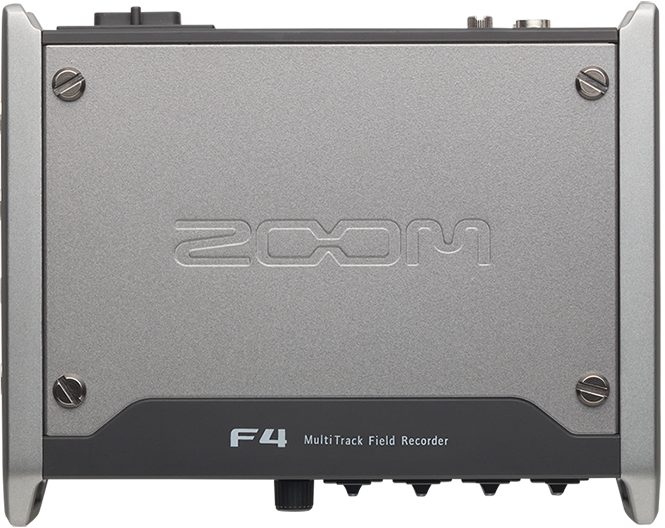

Rock-solid build and lightweight design

Rock-solid build and lightweight design
A compact metal chassis makes the F4 both rugged and durable, and keeps its weight down to just 2.27 pounds without batteries.

Recording Features

Recording Features

Multi-track recording
With four XLR/TRS combo inputs, a 3.5mm stereo input, and a Zoom mic capsule input, the F4 can record up to six discrete tracks with an additional stereo mix track—all at resolutions up to 24-bit/192 kHz.

Camera return
Input 5/6 can be used as a camera return for monitoring only. This allows you to monitor audio being sent to the camera for confidence checks.

Dual SD card recording
A dual SD card recording feature lets you record simultaneously on two SD/SDHC/SDXC cards* (up to 512 GB each). This means you can instantly back up or split recordings. For example, you can save eight tracks on one card and a stereo mix on another.

* View a list of confirmed compatible SD cards

File protection
The F4 periodically saves files while recording, providing an extra level of protection from unexpected file interruptions like power loss or sudden SD card removal.

Zoom cable

Dual-channel recording
Dual-channel recording mode lets you create safety tracks for inputs 1 and 2, each with independent level, limiting, delay, phase inversion, and high-pass filtering.

Shortcuts
Built-in shortcuts allow easy access to important menus and features. Hold the front panel OPTION button for access to TC Jam, Trim Link, Clear Clip and other important shortcuts.

Three power sources
Power up your F4 with 8 AA batteries or an external DC battery pack with a converter cable connector. The F4 also includes a Zoom AD-19 power supply and a DC-HIROSE adapter which serves as a third power option.

Add Two Additional Mic/Line Inputs

Add Two Additional Mic/Line Inputs

The F4 is outfitted with a 10-pin Zoom mic capsule input to expand your recording capabilities even further. Connecting the optional EXH-6 XLR/TRS Combo Input Capsule adds two extra mic/line inputs to your F4, giving you a total of six discrete XLR/TRS combo inputs.

Zoom Interchangeable Mic Capsules

Use the proprietary Zoom capsule input to connect any of the available Zoom mic capsules—such as the SGH-6 Shotgun Mic Capsule or the XYH-6 Stereo X/Y Mic Capsule—to add an on-board microphone to your F4. The optional ECM extension cable allows for remote positioning of all capsules.

The Best Connections

The Best Connections

Inputs

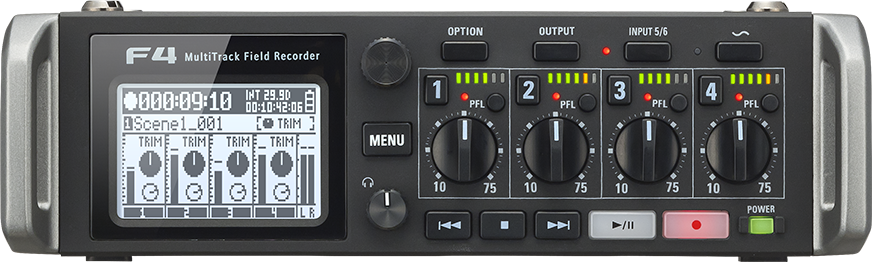

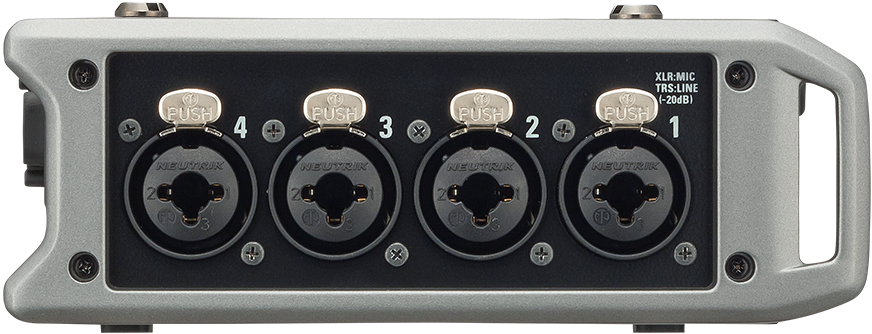

The F4 features four discrete inputs with locking Neutrik XLR/TRS combo connectors. Each input provides a dedicated preamp with gain control knob, phantom power, a six-segment LED level meter, and a Record Ready and PFL switch. The 1/8" stereo input or the Zoom mic capsule input can provide input for tracks 5 and 6. The F4 also includes a variable-frequency slate tone generator to confirm levels.

Outputs

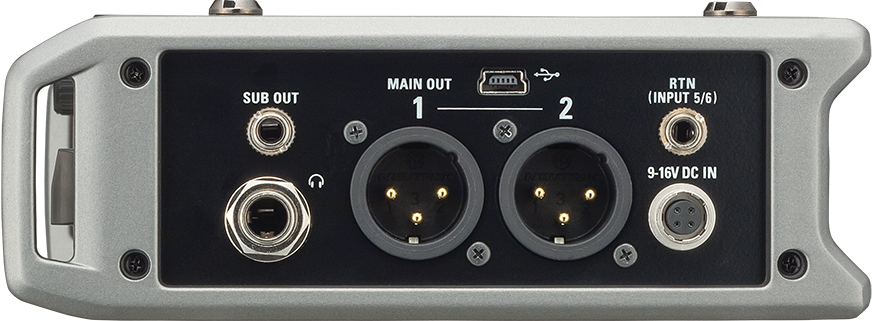

In addition to the 1/4” headphone jack with dedicated volume control, the F4 provides four other outputs. Two Main Outs (on balanced XLR jacks) let you connect to external mixers and processing devices. Two Sub Outs (on a single unbalanced 1/8" stereo mini-jack) enable easy connection to a camera. The front panel OUTPUT button allows easy access to output levels and routing.

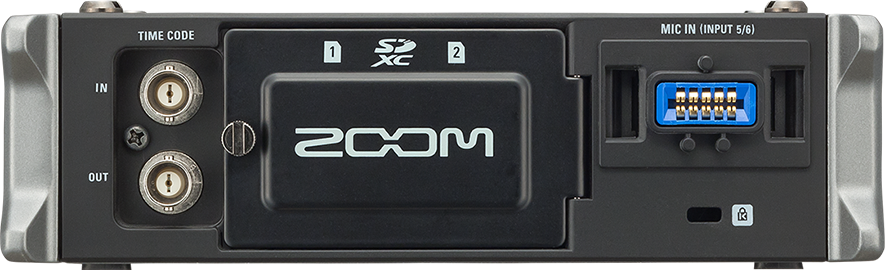

Time code and USB connections
Time code I/O is provided on BNC connectors. The USB port facilitates firmware updates and file transfer. It also allows the F4 to be used as a 6-in/4-out USB audio interface with sample rates up to 96 kHz.

An LCD For All Lighting Conditions

An easy-to-read 1.9-inch white backlit monochromatic LCD display makes the F4 suitable for all lighting environments— from low light to direct sunlight. It also performs well in harsh conditions, like dusty and hard-to-see environments.

Monitor Your Recordings

Flexible options help you easily monitor recordings in the field. A built-in 100 mW headphone amplifier provides plenty of volume for noisy environments. You can even set headphone alert tones for low battery, recording start/stop.

Onboard Mixer And Effects

Onboard Mixer and Effects
An onboard mixer allows for flexible signal routing from all inputs to all outputs (pre- or post-fader) with user-adjustable level, pan, and input/output delay. Built-in limiters can be applied to all channels and tracks simultaneously. The F4 also includes built-in high-pass filtering to reduce the sound of wind and other noise, plus phase inversion and Mid-Side decoding.

The Nitty Gritty
The F4 records in BWF-compatible WAV format at 16-bit or 24-bit resolution, and at any standard sample rate up to 192 kHz. When recording MP3 files, you can choose bit rates of 128, 192, or 320 kbps.

The VR Audio Dream Team

Pair your F4 with the Sennheiser AMBEO VR Microphone* for a complete VR audio production experience. With the F4’s gain linking capability, you can evenly adjust the gain on all four capsules of the AMBEO mic in one fell swoop.
Lightweight, portable, and easy to mount, the F4 and AMBEO mic combination lets you capture 360-degree audio anywhere.

NOTE: To experience the VR audio and video fully, we recommend Google Chrome to desktop users and the YouTube app for tablet and smartphone users.

Zoom F4 Features

  • 6-input/8-track multitrack field recorder with integrated mixer
  • 6 discrete inputs, including with 4 locking Neutrik XLR/TRS combo connectors, a stereo 3.5mm input, and Zoom mic capsule input
  • Input 5/6 can be used as a camera return for monitoring only
  • Compact and lightweight metal chassis, weighing just 2 pounds (without batteries)
  • High-quality mic preamps with up to 75 dB gain, less than -127 dBu EIN, and +4dB line inputs
  • Support for up to 24-bit/192 kHz recording as well as 96 kHz, 88.2 kHz, 48 kHz, and 44.1 kHz, plus 47.952 kHz/48.048 kHz for HD video compatibility; 16-/24-bit resolution
  • Accurate time code (0.2 ppm) I/O on standard BNC connectors; drop frame/non-drop formats with Jam Sync
  • Three different power supply options: 8x AA batteries, external DC battery pack with 4-pin HIROSE connector, and Zoom AD-19 12V AC Adapter with DC-HIROSE cable (included)
  • Dedicated gain control knob, 6-segment LED level meter, and PFL/Solo switch for each channel
  • Phantom power (+48V/+24V) on every preamp
  • High pass filter, phase invert, and Mid-Side decoder
  • Advanced onboard limiters for input and output
  • Input delay of up to 30 msec per channel / output delay of up to 10 frames per output
  • Compatible with all Zoom mic capsules; optional ECM extender cable enables re-mote positioning
  • Dedicated headphone output (100 mW) with front panel volume control
  • Dual XLR balanced Main Outs plus 1/8" stereo mini-jack Sub Out
  • Front panel OPTION button gives quick access to important shortcuts
  • 1.9" white, backlit monochrome LCD
  • Dual SD/SDHC/SDXC card slots, up to 512 GB each
  • Support for extensive metadata (BWF and iXML); input time, date, project, scene num-ber, etc.
  • Built-in tripod mount; camera mount adapter also included
  • Use as a 6-in/4-out USB audio interface (@ 96 kHz)







What's in the box:

  • Zoom F4 Multitrack Field Recorder
  • Camera Mount Adapter
  • Zoom AD-19 12V AC Adapter
  • DHC-1 DC-HIROSE Cable
  • Cubase LE and WaveLab LE Download Codes
  • Operation Manual
  • (8 AA Batteries Not Included)
  • Zoom 1 Year Warranty
  • Bundle includes:
  • SKB iSeries Military Standard Waterproof Sennheiser SW Wireless Mic Case
  • Cleaning Kit
