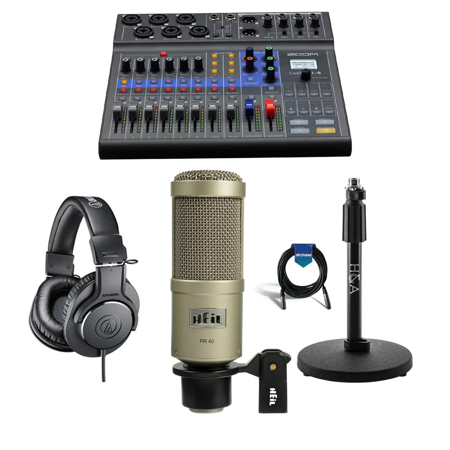

Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder - Bundle With Heil Sound PR40 Cardioid Studio Mic Champagne, AT ATH-M20x Pro Monitor Headphones, H&A Tabletop Mic Stand, Cable

SKU: ZOZL8J

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

Can the Zoom LiveTrak L-8 be used for live streaming?

Yes, the L-8 can be used for live streaming while simultaneously recording to your computer and SD card.

How long can the Zoom LiveTrak L-8 operate on battery power?

The L-8 can run for up to 2.5 hours using four AA batteries or can be powered via a USB battery.

Does the Zoom LiveTrak L-8 support remote interviews?

Yes, the L-8 supports remote interviews with its Mix-Minus function, which prevents echo and feedback during phone or USB connections.

What is the recording resolution of the Zoom LiveTrak L-8?

The L-8 can record up to 10 discrete tracks at a resolution of 24-bit/96 kHz directly to an SD card.

How many custom monitor mixes does the Zoom LiveTrak L-8 offer?

The L-8 provides three custom monitor mixes, allowing precise audio monitoring on stage.

Reviews about this item

Review Summary

2020-09-01T08:03:19

Rated 3 out of 5

Not what I hoped for

The good: It did something very few other devices offer right now, at this price level. The bad: it’s driver crashed my machine, badly. It’s audio port mapping to the computer was confusing, and I ultimately had to use another piece of software to make sense of it.

RICHARD P.

2020-08-10T08:56:14

Rated 5 out of 5

Simply the best for its price

Very very good.

Rudys R.

2020-07-13T08:07:28

Rated 4 out of 5

Loving it, no issues

Iv had a the zoom l8 for a month and it does just as advertised! No issues with it at all, currently using it in my livestream setup. Plan on using for the podcast I’m starting as well. I’m sure it will be up to that task. Originally wanted the Rodecaster pro with it not being in stock and me not wanting to wait I picked the Zoom L8 definitely a nice alternative.

VICTOR P.

2020-03-04T07:47:54

Rated 5 out of 5

Amazing sound quality! I am impressed Thank you LiveTrak, outstanding product!

I have used the Peavey Unity Series mixers for the last 20+ years for video production primarily because they produce very little line noise. So I was a little apprehensive switching brands when it was time for an upgrade. WOW... not only does the L-8 LiveTrak produce almost no line noise whatsoever, but the sound quality is rich and full. These guys really did their homework when they designed this one. The SD recording feature decreased my workflow and increased my productivity.

JAY R.

2020-02-11T10:30:06

Rated 5 out of 5

Just Amazing!

We've been using a ZOOM H4N for our podcasting, but have quickly grown into needed more inputs and more control. We have recorded two podcasts with the L-8 and loving it! It's a beast of a board in such a small package.

Bryce A.

2020-02-05T07:26:19

Rated 5 out of 5

Well built and designed portable mixer/recorder.

Well built and designed portable mixer/recorder with some great features. It makes recording easy with great quality.

Kevin S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Zoom L-8 Specifications

  • Inputs

    2x XLR-1/4" TRS Combo Balanced/Unbalanced Mic/Line/Hi-Z Inputs
    4x XLR-1/4" TRS Combo Balanced Mic/Line Inputs
    2x 1/4" TS Unbalanced Line Inputs
    1x 1/8" / 3.5 mm TRRS Unbalanced Smartphone I/O

  • Outputs

    2x 3-Pin XLR Male Balanced Line Outputs
    4x 1/4" TRS Female Unbalanced Headphone Outputs

  • Input Gain

    Mic/Line Inputs: +10 to +54 dB

  • Input Impedance

    XLR: 3 Kilohms
    1/4" TRS/TS Line: 3 Kilohms
    1/4" TS Hi-Z: 510 Kilohms
    3.5 mm TRRS: 3 Kilohms

  • Maximum Input Level

    Mic/Line Inputs (Pad Off): -2 dBu at 0 dBFS
    Mic/Line Inputs (Pad On): +24 dBu at 0 dBFS
    1/4" TS Line Inputs: +4 dBu
    3.5 mm TRRS: +4 dBu

  • Phantom Power

    +48 VDC

  • Output Impedance

    XLR: 100 Ohms
    1/4" TRS: 10 Ohms

  • Maximum Output Level

    XLR: +14.5 dBu
    1/4" TRS: 10 mW per Channel (60-Ohm Load)

  • Buses

    Master: 1
    Monitor: 3
    Send EFX: 1

  • Channel Control

    Low-Cut Filter: 75 Hz at 12 dB/Octave
    High EQ (Shelving): +/-15 dB at 10 kHz
    Mid EQ (Peaking): +/-15 dB at 2.5 kHz
    Low EQ (Shelving): +/-15 dB at 100 Hz

  • Level Meters

    12 x 9-Segment LEDs

  • Effects

    8 Types

  • Recorder

    Maximum Simultaneous Recording Tracks: 12
    Maximum Simultaneous Playback Tracks: 10
    Format: WAV
    Bit Depth: 16-Bit or 24-Bit
    Sample Rate: 44.1, 48, or 96 kHz

  • Supported Media Card Types

    SDHC: 4 to 32 GB (Class 10 or Higher)
    SDXC: 64 to 512 GB (Class 10 or Higher)

  • Audio Interface

    Recording: 12 Channels
    Playback: 4 Channels
    Bit Depth: 24-Bit
    Sample Rate: 44.1 or 48 kHz
    Interface: USB 2.0

  • Card Reader

    Class: Mass Storage USB 2.0 High Speed

  • Frequency Response

    20 Hz to 20 kHz -1 dB at 44.1 kHz
    20 Hz to 40 kHz -3 dB at 96 kHz

  • Equivalent Input Noise

    121 dB EIN (IHF-A) at +54 dB, 150-Ohm Input

  • Display

    96 x 64 Backlit LCD

  • Power Requirements

    Battery: 4 x AA Batteries (Alkaline, NiMH, or Lithium)
    AC: Zoom AD-17 AC Adapter
    DC: 5 V, 1 A
    USB Bus Power

  • Battery Life

    Alkaline: Up to 2 Hours (Battery Save On, Phantom Power Off)
    NiMH: Up to 3 Hours (Battery Save On, Phantom Power Off)

  • Power Consumption

    5 W

  • Dimensions (W x D x H)

    10.55 x 11.1 x 2.91" (268 x 282 x 74mm)

  • Weight

    3.43 lb (1.56kg)

  • UPC Codes

    192223142800 | 884354021146 | 810100410322 | 4961310125400 | 192223075481 | 192223105867

About Zoom L-8

FEATURED REVIEWS

Simply the best for its price

By Rudys R.

Very very good.

Amazing sound quality! I am impressed Thank you LiveTrak, outstanding product!

By JAY R.

I have used the Peavey Unity Series mixers for the last 20+ years for video production primarily because they produce very little line noise. So I was a little apprehensive switching brands when it was time for an upgrade. WOW... not only does the L-8 LiveTrak produce almost no line noise whatsoever, but the sound quality is rich and full. These guys really did their homework when they designed this one. The SD recording feature decreased my workflow and increased my productivity.

Because creators are constantly evolving, the Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder is designed to meet their dynamic needs. This versatile device simplifies the process of mixing, monitoring, and recording professional-quality podcasts and music performances, all in a compact and affordable package.

Power to the Podcast

Podcast creators demand a unique set of audio features and the flexibility of a professional mixing console. The LiveTrak L-8 merges Zoom's renowned audio performance with podcast-specific features. With six easily-assignable Sound Pads, you can effortlessly play intros, outros, jingles, ads, and sound effects at the touch of a button.

Seamless Remote Interviews

Conducting remote interviews is straightforward with the L-8. Connect your phone using the included TRRS cable, and the Mix-Minus function will automatically eliminate echo and feedback. Alternatively, use the USB connection to integrate audio from platforms like Skype, Facetime, Hangouts, and Slack.

Exceptional Audio Clarity

Zoom's preamps are celebrated for their transparency, power, and reliability. The L-8 includes six independent preamps, capable of capturing everything from a whisper to a lively debate. With four headphone outputs, each participant can clearly hear the conversation, ensuring seamless communication.

Flexible Multitrack Recording

Professionals understand the importance of recording each participant on a separate track for superior sound quality and editing flexibility. The L-8 records individual tracks directly to an SD card, allowing for detailed post-production editing. Additionally, it can function as an audio interface, recording full episodes to your computer and SD card simultaneously, and even supports live streaming.

Portable and Convenient

The Zoom LiveTrak L-8 offers up to 2.5 hours of operation on just four AA batteries or can be powered via a USB battery, making it perfect for on-the-go podcasting. Save time by storing up to seven show "scenes" that can be instantly recalled with the press of a button.

Ideal for Musicians

For singer-songwriters and small bands, the L-8 is an ideal mixer and recorder. Despite its compact size, it delivers big sound with six high-performance preamps featuring phantom power, a low noise floor (-121dBU EIN), and a maximum input gain of +54dB. It also includes two Hi-Z, line-level, and USB inputs, with EQ and onboard effects for fine-tuning each channel.

True Multi-Track Recording

Record up to 10 discrete tracks plus a stereo mix directly to an SD card at resolutions up to 24-bit/96 kHz. Easily punch-in and overdub, then transfer your work to your preferred DAW for further refinement. Note that effects, EQ, overdub, and audio interface features are not available at 96 kHz.

Custom Monitor Mixes

The L-8 provides three custom monitor mixes, ensuring that no matter where you are on stage, you hear exactly what you need. As a 12-in/4-out audio interface, it allows you to track directly into your favorite DAW or use the USB return to run backing tracks from your computer.

The Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder is a powerful tool for creators, offering unmatched flexibility and professional audio quality in a portable format.

Zoom L-8 Features

  • 8-channel mixer (6 combo, plus 2 TS)
  • 12-track simultaneous recording, 10-track playback
  • Mix-Minus function preventing audio feedback from dial-in guests
  • TRRS connection and included TRRS cable for phone connectivity
  • 6 assignable Sound Pads, with 13 preset sounds
  • 4 headphone outputs, consisting of 3 custom monitor mixes, plus one main mix
  • 3-band EQ and a low-cut function
  • 7 scene memories for storing mixes
  • 12-in / 4-out USB audio interface
  • Class-compliant mode (for iOS compatibility)
  • Battery operated with four AA batteries or a USB power supply
  • Record up to 24-bit/96kHz, record up to 48kHZ to computer and SD card simultaneously

Key Features

  • Create podcasts or music demos easily with this portable multitrack recorder.
  • Achieve pristine sound quality with the included Heil Sound PR40 studio microphone.
  • Enjoy versatile connectivity with multiple XLR and TRS inputs on this digital mixer.
  • Monitor your audio precisely with the Audio-Technica ATH-M20x professional headphones.
  • Record up to 12 tracks simultaneously for complex audio projects using this recorder.
  • Use the H&A tabletop mic stand for stable, convenient placement during recording sessions.

What's in the box:

  • LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
  • 3.5mm TRRS Cable
  • USB Cable
  • AD-17 AC Adapter
  • Quick Guide
  • Zoom 1 Year Limited Warranty
  • Heil Sound PR40 Large Diameter Dynamic Cardioid Studio Microphone
  • Champagne
  • Audio-Technica ATH-M20x Professional Monitor Headphones
  • - 20' 6mm Rubber XLR Microphone Cable
  • H&A Telescoping Tabletop Microphone Stand
