Zoom LiveTrak L-8 Portable 8-Channel Mixer and Multitrack Recorder, Bundle with Electro-Voice RE320 Variable-D Dynamic Microphone, TAPH500 Pro Closed-Back Studio Headphones

SKU: ZOZL8K MFR: ZL8 K
Earn VIP Reward Points

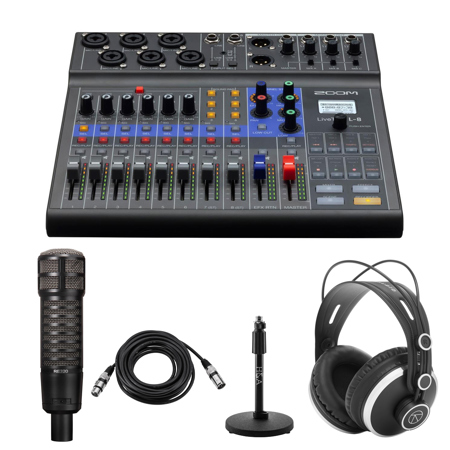

PACKAGE INCLUDES:

  • Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
    Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
  • +
  • Electro-Voice RE320 Variable-D Dynamic Microphone
    Electro-Voice RE320 Variable-D Dynamic Microphone
  • +
  • Turnstile Audio Passenger TAPH500 Pro Closed-Back Studio Monitoring Headphones
    Turnstile Audio Passenger TAPH500 Pro Closed-Back Studio Monitoring Headphones
  • +
  • 2 more

Key Features

  • Create professional podcasts with the Zoom LiveTrak L-8's multitrack recorder function.
  • Achieve pristine audio quality for music recordings using this portable 8-channel mixer.
  • Easily record remote interviews with smartphone connectivity and dedicated TRRS cable.
  • Enjoy crystal-clear sound with the included Electro-Voice RE320 dynamic microphone.
  • Monitor your audio precisely with the TAPH500 Pro closed-back studio monitoring headphones.
  • Power your creativity anywhere with versatile battery options for field recording sessions.
See More Product Details
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-09-01T08:03:19

Rated 3 out of 5

Not what I hoped for

The good: It did something very few other devices offer right now, at this price level. The bad: it’s driver crashed my machine, badly. It’s audio port mapping to the computer was confusing, and I ultimately had to use another piece of software to make sense of it.

RICHARD P.

2020-08-10T08:56:14

Rated 5 out of 5

Simply the best for its price

Very very good.

Rudys R.

2020-07-13T08:07:28

Rated 4 out of 5

Loving it, no issues

Iv had a the zoom l8 for a month and it does just as advertised! No issues with it at all, currently using it in my livestream setup. Plan on using for the podcast I’m starting as well. I’m sure it will be up to that task. Originally wanted the Rodecaster pro with it not being in stock and me not wanting to wait I picked the Zoom L8 definitely a nice alternative.

VICTOR P.

2020-03-04T07:47:54

Rated 5 out of 5

Amazing sound quality! I am impressed Thank you LiveTrak, outstanding product!

I have used the Peavey Unity Series mixers for the last 20+ years for video production primarily because they produce very little line noise. So I was a little apprehensive switching brands when it was time for an upgrade. WOW... not only does the L-8 LiveTrak produce almost no line noise whatsoever, but the sound quality is rich and full. These guys really did their homework when they designed this one. The SD recording feature decreased my workflow and increased my productivity.

JAY R.

2020-02-11T10:30:06

Rated 5 out of 5

Just Amazing!

We've been using a ZOOM H4N for our podcasting, but have quickly grown into needed more inputs and more control. We have recorded two podcasts with the L-8 and loving it! It's a beast of a board in such a small package.

Steffen H.

2020-02-05T07:26:19

Rated 5 out of 5

Well built and designed portable mixer/recorder.

Well built and designed portable mixer/recorder with some great features. It makes recording easy with great quality.

Kevin S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Zoom L-8 Specifications

Input Channels

Input Channels

Jump to...
  • Mic/Line

    6 Channels

  • Line

    2 Channels

Output Channels

Jump to...
  • Master Out

    1 Channel

  • Master Out (Phones)

    1 Channel

  • Monitor Out (Phones)

    3 Channel

Mic/Line Inputs

Jump to...
  • Type

    XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)

  • Input gain

    +10 - +54 dB/-3 - +41 dB (when Hi-Z ON)

  • Input impedance

    XLR: 3 k Ohm
    TRS: 3 k Ohm/1 M Ohm (when Hi-Z ON)

  • Maximum input level

    -2 dBu when -26dB switch OFF (at 0 dBFS)
    +24 dBu when -26dB switch ON (at 0 dBFS)

  • Phantom power

    +48 V

Line Inputs

Jump to...
  • Type

    TS phone jack

  • Input impedance

    10 k Ohm

  • Maximum input level

    +3 dBu

Smartphone Connection Jack Inputs

Jump to...
  • Type

    TRRS mini jack (4-contacts/TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)

  • Input impedance

    10 k Ohm

  • Maximum input level

    +3 dBu

Master Output

Jump to...
  • Type

    XLR jacks (balanced)

  • Maximum output level

    +14.5 dBu

  • Output impedance

    100 Ohm

Master Output (Phones)

Jump to...
  • Type

    Standard stereo phone jack

  • Maximum output level

    10 mW + 10 mW (60 Ohm load)

  • Output impedance

    10 Ohm

Monitor Output (Phones)

Jump to...
  • Type

    Standard stereo phone jack

  • Maximum output level

    10 mW + 10 mW (60 Ohm load)

  • Output impedance

    10 Ohm

  • Master

    1

  • Monitor

    3

  • Send EFX

    1

Channel Strip

Jump to...
  • Low Cut

    75 Hz, 12 dB/OCT

  • EQ

    High: 10 kHz, +/-15 dB, shelving
    Mid: 2.5 kHz, +/-15 dB, peaking
    Low: 100 Hz, +/-15 dB, shelving

  • Level Meter

    9 Segments

  • Send Effects

    8 Types

Recorder

Jump to...
  • Maximum Simultaneous Recording Tracks

    12 at 44.1/48/96 kHz

  • Maximum Simultaneous Playback Tracks

    10

  • Recording Format

    WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo

  • Recording Media

    4GB - 32GB SDHC-compliant cards (Class 10 or higher)
    64GB - 1TB SDXC-compliant cards (Class 10 or higher)

Audio Interface

Jump to...
  • 44.1/48 KHz

    Recording: 12 channels
    Playback: 4 channels

  • Bit Depth

    24-bit

  • Interface

    USB 2.0

System Requirements

Jump to...
  • Windows

    OS: Windows 8.1/10/11 (32bit/64bit)
    CPU: Intel Core i3 or faster
    USB: USB 3.0/USB 2.0

  • Mac

    OS: macOS 10.12 - 13
    CPU: Intel Core i3 or faster
    USB: USB 3.0/USB 2.0

  • iPhone/ipad

    OS: iOS 10 - 16, iPadOS 15 - 16

Card Reader

Jump to...
  • Class

    Mass storage USB 2.0 High Speed

General

Jump to...
  • Sampling Frequency

    44.1/48/96 kHz

  • Frequency Response

    20 Hz - 20 kHz: -1 dB at 44.1 kHz
    20 Hz - 40 kHz: -3 dB at 96 kHz (when GAIN at 3 o'clock)

  • Equivalent Input Noise

    -121 dBu or less (IHF-A) at +54dB/150 Ohm input

  • Display

    LCD with backlight (96 x64 resolution)

  • Power

    4 AA batteries (alkaline, lithium, or rechargeable NiMH)
    AC adapter (ZOOM AD-17): DC 5V/1A
    Supports USB bus power

  • Estimated Continuous Recording Time

    (Using Batteries)Recording 44.1kHz/16-bit/4ch audio to SD card (when 48V is OFF, LCD BACKLIGHT is 15sec, BATTERY SAVING is ON and headphone impedance is 62 Ohm)
    Alkaline batteries: about 1.5 hours
    NiMH batteries (1900 mAh): about 3 hours
    Lithium batteries: about 5 hours

  • Power Consumption

    5W

Battery

Jump to...
  • Battery Info

    Optional, Not Included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    4

Physical

Jump to...
  • Dimensions (W x D x H)

    External: 10.55 x 11.10 x 2.91" (268 x 282 x 74mm)

  • Weight

    3.44 lbs (1.56kg)

  • UPC Codes

    192223142817, 701001084807, 192223105867, 192223075498, 192223199606, 884354021146

About Zoom L-8

FEATURED REVIEWS

Simply the best for its price

By Rudys R.

Very very good.

Amazing sound quality! I am impressed Thank you LiveTrak, outstanding product!

By JAY R.

I have used the Peavey Unity Series mixers for the last 20+ years for video production primarily because they produce very little line noise. So I was a little apprehensive switching brands when it was time for an upgrade. WOW... not only does the L-8 LiveTrak produce almost no line noise whatsoever, but the sound quality is rich and full. These guys really did their homework when they designed this one. The SD recording feature decreased my workflow and increased my productivity.

For podcasters, musicians, and content creators seeking superior audio quality and versatility, the Zoom LiveTrak L-8 Portable 8-Channel Mixer and Multitrack Recorder is an exceptional choice. This compact, portable device is designed to simplify the process of mixing, monitoring, and recording professional-grade podcasts and music performances.

The LiveTrak L-8 is equipped with Zoom's renowned audio performance technology, tailored specifically for podcast creators. It features six easily-assignable Sound Pads, enabling you to effortlessly play intros, outros, jingles, ads, and sound effects at the touch of a button.

Remote interviews are seamless with the LiveTrak L-8. Connect your phone using the included TRRS cable and utilize the Mix-Minus function to automatically prevent echo and feedback. Alternatively, use the USB connection to route audio from Skype, Facetime, Hangouts, Slack, and more.

The device boasts six independent Zoom preamps, known for their transparency, power, and reliability. These preamps can handle a wide range of audio levels, from whispers to loud debates. The LiveTrak L-8 also offers multi-track recording, allowing you to record each participant on their own separate track directly to an SD card for easier editing later.

Designed with user convenience in mind, the LiveTrak L-8 features four headphone outputs, ensuring each participant can clearly hear the ongoing conversation. It's also highly portable, capable of running up to 1.5 hours on just four AA batteries or a USB battery, making it ideal for podcasting on the go.

The LiveTrak L-8 doubles as an audio interface, enabling you to record full episodes directly to your computer and an SD card simultaneously. It also supports live streaming while recording. With the ability to save up to 7 show "scenes", you can instantly recall your saved settings at the press of a button.

For musicians, the LiveTrak L-8 offers high-performance preamps with phantom power, a low noise floor, and maximum input gain. It also allows for fine-tuning each channel with EQ and onboard effects. The device supports recording up to 10 discrete tracks plus a stereo mix directly to an SD card at resolutions up to 24-bit/96 kHz.

The LiveTrak L-8 is not only a top-tier mixer and recorder but also a 12-in/4-out audio interface. You can track directly into your favorite DAW or use the USB return to run backing tracks from your computer. Whether you're a podcaster, a musician, or a content creator, the Zoom LiveTrak L-8 Portable 8-Channel Mixer and Multitrack Recorder offers a comprehensive solution for all your audio recording needs.

Zoom L-8 Features

  • 8-channel mixer (6 combo, plus 2 TS)
  • 12-track simultaneous recording, 10-track playback
  • Mix-Minus function preventing audio feedback from dial-in guests
  • TRRS connection and included TRRS cable for phone connectivity
  • 6 assignable Sound Pads, with 13 preset sounds
  • 4 headphone outputs, consisting of 3 custom monitor mixes, plus one main mix
  • 3-band EQ and a low-cut function
  • 7 scene memories for storing mixes
  • 12-in / 4-out USB audio interface
  • Class-compliant mode (for iOS compatibility)
  • Battery operated with four AA batteries or a USB power supply
  • Record up to 24-bit/96kHz, record up to 48kHZ to computer and SD card simultaneously

Product Documents

User Manual

Key Features

  • Create professional podcasts with the Zoom LiveTrak L-8's multitrack recorder function.
  • Achieve pristine audio quality for music recordings using this portable 8-channel mixer.
  • Easily record remote interviews with smartphone connectivity and dedicated TRRS cable.
  • Enjoy crystal-clear sound with the included Electro-Voice RE320 dynamic microphone.
  • Monitor your audio precisely with the TAPH500 Pro closed-back studio monitoring headphones.
  • Power your creativity anywhere with versatile battery options for field recording sessions.

What's in the box:

  • Zoom LiveTrak L-8 Portable 8-Channel Mixer and Multitrack Recorder
  • TRRS Cable
  • USB Cable
  • AD-17 AC Adapter
  • Quick Start Guide
  • Zoom 1 Year Limited Warranty
  • Bundle Includes:
  • Electro-Voice RE320 Variable-D Dynamic Microphone
  • Turnstile Audio Passenger TAPH500 Pro Closed-Back Studio Monitoring Headphones
  • H&A Value Series 25' XLR Male to Female Professional Microphone Cable
  • H&A Telescoping Tabletop Microphone Stand
