Kit Savings

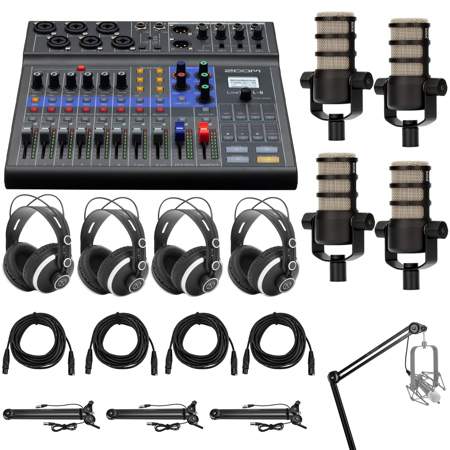

Zoom LiveTrak L-8 Portable 8-Channel Mixer Recorder Bundle with 4x Rode PodMic Dynamic Podcasting, 4x TAPH500 Headphones, 4x Cable, 4x Broadcast Arm with Cable

SKU: ZOZL8M MFR: ZL8 M
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
    Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
  • +
  • Rode PodMic Dynamic Podcasting Microphone Black
    Rode PodMic Dynamic Podcasting Microphone Black

    Qty: 4

  • +
  • Turnstile Audio Passenger TAPH500 Pro Closed-Back Studio Monitoring Headphones
    Turnstile Audio Passenger TAPH500 Pro Closed-Back Studio Monitoring Headphones

    Qty: 4

  • +
  • 3 more

Key Features

  • Create professional podcasts with the Zoom LiveTrak L-8 digital recorder and included Rode PodMics.
  • Achieve pristine audio quality with this portable mixer's high-resolution recording capabilities.
  • Effortlessly record music, interviews, or live events using the multitrack recorder feature.
  • Enjoy crystal-clear sound monitoring with the included TAPH500 headphones for perfect audio.
  • Streamline your workflow with integrated broadcast arms, keeping your setup tidy and efficient.
  • Utilize versatile connectivity options for seamless integration with smartphones & other devices.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ISRAEL C : Not Now. Not until I receive my product and start using it. them I'll give my oppinionJACOB H : Looks good. Advanced mixer. High quality mics. Everything needed to start a podcast.

Reviews about this item

Review Summary

2020-09-01T08:03:19

Rated 3 out of 5

Not what I hoped for

The good: It did something very few other devices offer right now, at this price level. The bad: it’s driver crashed my machine, badly. It’s audio port mapping to the computer was confusing, and I ultimately had to use another piece of software to make sense of it.

RICHARD P.

2020-08-10T08:56:14

Rated 5 out of 5

Simply the best for its price

Very very good.

Rudys R.

2020-07-13T08:07:28

Rated 4 out of 5

Loving it, no issues

Iv had a the zoom l8 for a month and it does just as advertised! No issues with it at all, currently using it in my livestream setup. Plan on using for the podcast I’m starting as well. I’m sure it will be up to that task. Originally wanted the Rodecaster pro with it not being in stock and me not wanting to wait I picked the Zoom L8 definitely a nice alternative.

VICTOR P.

2020-03-04T07:47:54

Rated 5 out of 5

Amazing sound quality! I am impressed Thank you LiveTrak, outstanding product!

I have used the Peavey Unity Series mixers for the last 20+ years for video production primarily because they produce very little line noise. So I was a little apprehensive switching brands when it was time for an upgrade. WOW... not only does the L-8 LiveTrak produce almost no line noise whatsoever, but the sound quality is rich and full. These guys really did their homework when they designed this one. The SD recording feature decreased my workflow and increased my productivity.

JAY R.

2020-02-11T10:30:06

Rated 5 out of 5

Just Amazing!

We've been using a ZOOM H4N for our podcasting, but have quickly grown into needed more inputs and more control. We have recorded two podcasts with the L-8 and loving it! It's a beast of a board in such a small package.

Steffen H.

2020-02-05T07:26:19

Rated 5 out of 5

Well built and designed portable mixer/recorder.

Well built and designed portable mixer/recorder with some great features. It makes recording easy with great quality.

Kevin S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Zoom L-8 Specifications

  • Inputs

    2x XLR-1/4" TRS Combo Balanced/Unbalanced Mic/Line/Hi-Z Inputs
    4x XLR-1/4" TRS Combo Balanced Mic/Line Inputs
    2x 1/4" TS Unbalanced Line Inputs
    1x 1/8" / 3.5 mm TRRS Unbalanced Smartphone I/O

  • Outputs

    2x 3-Pin XLR Male Balanced Line Outputs
    4x 1/4" TRS Female Unbalanced Headphone Outputs

  • Input Gain

    Mic/Line Inputs: +10 to +54 dB

  • Input Impedance

    XLR: 3 Kilohms
    1/4" TRS/TS Line: 3 Kilohms
    1/4" TS Hi-Z: 510 Kilohms
    3.5 mm TRRS: 3 Kilohms

  • Maximum Input Level

    Mic/Line Inputs (Pad Off): -2 dBu at 0 dBFS
    Mic/Line Inputs (Pad On): +24 dBu at 0 dBFS
    1/4" TS Line Inputs: +4 dBu
    3.5 mm TRRS: +4 dBu

  • Phantom Power

    +48 VDC

  • Output Impedance

    XLR: 100 Ohms
    1/4" TRS: 10 Ohms

  • Maximum Output Level

    XLR: +14.5 dBu
    1/4" TRS: 10 mW per Channel (60-Ohm Load)

  • Buses

    Master: 1
    Monitor: 3
    Send EFX: 1

  • Channel Control

    Low-Cut Filter: 75 Hz at 12 dB/Octave
    High EQ (Shelving): +/-15 dB at 10 kHz
    Mid EQ (Peaking): +/-15 dB at 2.5 kHz
    Low EQ (Shelving): +/-15 dB at 100 Hz

  • Level Meters

    12 x 9-Segment LEDs

  • Effects

    8 Types

  • Recorder

    Maximum Simultaneous Recording Tracks: 12
    Maximum Simultaneous Playback Tracks: 10
    Format: WAV
    Bit Depth: 16-Bit or 24-Bit
    Sample Rate: 44.1, 48, or 96 kHz

  • Supported Media Card Types

    SDHC: 4 to 32 GB (Class 10 or Higher)
    SDXC: 64 to 512 GB (Class 10 or Higher)

  • Audio Interface

    Recording: 12 Channels
    Playback: 4 Channels
    Bit Depth: 24-Bit
    Sample Rate: 44.1 or 48 kHz
    Interface: USB 2.0

  • Card Reader

    Class: Mass Storage USB 2.0 High Speed

  • Frequency Response

    20 Hz to 20 kHz -1 dB at 44.1 kHz
    20 Hz to 40 kHz -3 dB at 96 kHz

  • Equivalent Input Noise

    121 dB EIN (IHF-A) at +54 dB, 150-Ohm Input

  • Display

    96 x 64 Backlit LCD

  • Power Requirements

    Battery: 4 x AA Batteries (Alkaline, NiMH, or Lithium)
    AC: Zoom AD-17 AC Adapter
    DC: 5 V, 1 A
    USB Bus Power

  • Battery Life

    Alkaline: Up to 2 Hours (Battery Save On, Phantom Power Off)
    NiMH: Up to 3 Hours (Battery Save On, Phantom Power Off)

  • Power Consumption

    5 W

  • Dimensions (W x D x H)

    10.55 x 11.1 x 2.91" (268 x 282 x 74mm)

  • Weight

    3.43 lb (1.56kg)

  • UPC Codes

    192223142893, 192223105935, 192223075474, 192223075498, 698813005574, 192223199606, 884354021146

About Zoom L-8

FEATURED REVIEWS

Simply the best for its price

By Rudys R.

Very very good.

Amazing sound quality! I am impressed Thank you LiveTrak, outstanding product!

By JAY R.

I have used the Peavey Unity Series mixers for the last 20+ years for video production primarily because they produce very little line noise. So I was a little apprehensive switching brands when it was time for an upgrade. WOW... not only does the L-8 LiveTrak produce almost no line noise whatsoever, but the sound quality is rich and full. These guys really did their homework when they designed this one. The SD recording feature decreased my workflow and increased my productivity.

Creators are evolving-and so are we. Zoom LiveTrak L-8 makes it easier than ever to mix, monitor and record professional-sounding podcasts and music performances in one portable, affordable package.

Podcasts

Power to the Podcast
Podcast creators are a special breed. They require a unique set of audio features, along with the flexibility of a proper mixing console. The LiveTrak L-8 combines Zoom's famous audio performance with features made for podcasters.

Sound Pad Magic
Just press a button to play intros, outros, jingles, ads and sound effects. With 6 easily-assignable Sound Pads, the right sound is at your fingertips.

First-Time Caller, Long-Time Listener
Remote interviews are a snap with the L-8; just connect your phone via the provided TRRS cable. The Mix-Minus function automatically prevents echo and feedback to and from the caller. Or use the USB connection to route audio from Skype, Facetime, Hangouts, Slack and more.

Freedom of Speech
Zoom's preamps are famous for a good reason: they're transparent, powerful and ultra-reliable. The L-8 features six independent Zoom preamps, built to handle anything from a whisper to a raucous debate.

Hear Yourself Talk
If you can't hear yourself, how are you supposed to speak your mind The L-8 is equipped with four headphone outputs, so that each participant can clearly hear what is going on.

A Track for Everyone
The pros know that when you record everyone on their own separate track it just sounds better and provides more flexibility in the edit. The L-8 records separate tracks directly to your SD card, enabling you to edit them later.

On Air, On the Move
The Zoom LiveTrak L-8 can run up to 2 1/2 hours with just four AA batteries, or on a USB battery, so you can podcast from anywhere.

Record Twice, Once
Used as an audio interface, the L-8 can record full episodes directly to your computer and an SD card simultaneously. You can also live stream while recording.

Note: L-8 is class compliant, enabling connection with iOS devices. Apple Lightning to USB Camera Adapter required.

Save Settings. Save Time.
Once you've dialed in your mix...save it! The L-8 lets you save up to 7 show "scenes" that can be saved and instantly recalled at the press of a button.

Music

Small in Size Big on Sound
From singer-songwriters to small bands, the L-8 is the ideal mixer and recorder for musicians who may be small in number, but big on sound.

Coming Through Loud & Clear
The L-8 features six high performance preamps each with phantom power, a low noise floor (-121dBU EIN), and maximum input gain of +54dB.

Additionally there are two each Hi-Z, line-level and USB inputs. You can also fine-tune each channel with EQ and onboard effects.

True Multi-Track Recording
The L-8 lets you record up to 10 discrete tracks plus a stereo mix directly to an SD card at resolutions up to 24-bit/96 kHz. You can punch-in and overdub with ease, then transfer your work to your favorite DAW for fine tuning.

Note: Effects, EQ, overdub, and audio interface are not available in 96 kHz.

Go Out & Play
No outlet No worries. Get up to 2 1/2 hours of power from just four AA batteries. You can also power using a USB battery, and with the L-8's unique USB connection design, you never have to worry about accidentally disconnecting.

Individual Monitor Mixes
Never settle for that "compromise" monitor mix again. The L-8 provides three custom monitor mixes, so no matter where you are on stage, you hear exactly what you need.

High Quality Audio Interface
The L-8 is also a 12-in/4-out audio interface. Track directly into your favorite DAW or use the USB return to run backing tracks from your computer.

Note: L-8 is class compliant, enabling connection with iOS devices. Apple Lightning to USB Camera Adapter required.

Zoom L-8 Features

  • 8-channel mixer (6 combo, plus 2 TS)
  • 12-track simultaneous recording, 10-track playback
  • Mix-Minus function preventing audio feedback from dial-in guests
  • TRRS connection and included TRRS cable for phone connectivity
  • 6 assignable Sound Pads, with 13 preset sounds
  • 4 headphone outputs, consisting of 3 custom monitor mixes, plus one main mix
  • 3-band EQ and a low-cut function
  • 7 scene memories for storing mixes
  • 12-in / 4-out USB audio interface
  • Class-compliant mode (for iOS compatibility)
  • Battery operated with four AA batteries or a USB power supply
  • Record up to 24-bit/96kHz, record up to 48kHZ to computer and SD card simultaneously

Product Documents

User Manual

Key Features

  • Create professional podcasts with the Zoom LiveTrak L-8 digital recorder and included Rode PodMics.
  • Achieve pristine audio quality with this portable mixer's high-resolution recording capabilities.
  • Effortlessly record music, interviews, or live events using the multitrack recorder feature.
  • Enjoy crystal-clear sound monitoring with the included TAPH500 headphones for perfect audio.
  • Streamline your workflow with integrated broadcast arms, keeping your setup tidy and efficient.
  • Utilize versatile connectivity options for seamless integration with smartphones & other devices.

What's in the box:

  • LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
  • 3.5mm TRRS Cable
  • USB Cable
  • AD-17 AC Adapter
  • Quick Guide
  • Zoom 1 Year Limited Warranty
  • Bundle With:
  • 4x Rode PodMic Dynamic Podcasting
  • 4x TAPH500 Headphones
  • 4x Cable
  • 4x Broadcast Arm with Cable
