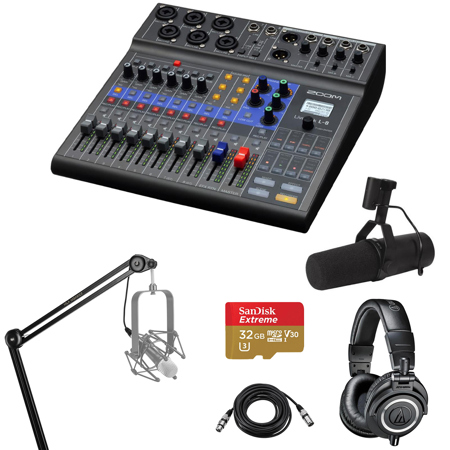

Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder Bundle with SM7B Microphone, ATH-M40x Headphones, Broadcast Arm, XLR M to F Cable, 32GB microSD Card

SKU: ZOZL8SHK1 MFR: ZL8 SHK1
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
    Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
  • +
  • Shure SM7B Cardioid Dynamic Studio Vocal Microphone
    Shure SM7B Cardioid Dynamic Studio Vocal Microphone
  • +
  • Audio-Technica ATH-M40x Professional Monitor Headphones, Black
    Audio-Technica ATH-M40x Professional Monitor Headphones, Black
  • +
  • 4 more

Key Features

  • Create pristine audio recordings with this portable multitrack recorder.
  • The LiveTrak L-8 mixer is perfect for podcasting, music, and live streaming.
  • Enjoy crystal-clear sound quality with the included Shure SM7B microphone.
  • Use the Audio-Technica headphones for accurate monitoring and mixing on the go.
  • Easily connect instruments & mics with 8 channels on this digital recorder.
  • The broadcast arm ensures optimal microphone placement for clear recordings.
See More Product Details
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-09-01T08:03:19

Rated 3 out of 5

Not what I hoped for

The good: It did something very few other devices offer right now, at this price level. The bad: it’s driver crashed my machine, badly. It’s audio port mapping to the computer was confusing, and I ultimately had to use another piece of software to make sense of it.

RICHARD P.

2020-08-10T08:56:14

Rated 5 out of 5

Simply the best for its price

Very very good.

Rudys R.

2020-07-13T08:07:28

Rated 4 out of 5

Loving it, no issues

Iv had a the zoom l8 for a month and it does just as advertised! No issues with it at all, currently using it in my livestream setup. Plan on using for the podcast I’m starting as well. I’m sure it will be up to that task. Originally wanted the Rodecaster pro with it not being in stock and me not wanting to wait I picked the Zoom L8 definitely a nice alternative.

VICTOR P.

2020-03-04T07:47:54

Rated 5 out of 5

Amazing sound quality! I am impressed Thank you LiveTrak, outstanding product!

I have used the Peavey Unity Series mixers for the last 20+ years for video production primarily because they produce very little line noise. So I was a little apprehensive switching brands when it was time for an upgrade. WOW... not only does the L-8 LiveTrak produce almost no line noise whatsoever, but the sound quality is rich and full. These guys really did their homework when they designed this one. The SD recording feature decreased my workflow and increased my productivity.

JAY R.

2020-02-11T10:30:06

Rated 5 out of 5

Just Amazing!

We've been using a ZOOM H4N for our podcasting, but have quickly grown into needed more inputs and more control. We have recorded two podcasts with the L-8 and loving it! It's a beast of a board in such a small package.

Steffen H.

2020-02-05T07:26:19

Rated 5 out of 5

Well built and designed portable mixer/recorder.

Well built and designed portable mixer/recorder with some great features. It makes recording easy with great quality.

Kevin S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Zoom L-8 Specifications

  • Inputs

    2x XLR-1/4" TRS Combo Balanced/Unbalanced Mic/Line/Hi-Z Inputs
    4x XLR-1/4" TRS Combo Balanced Mic/Line Inputs
    2x 1/4" TS Unbalanced Line Inputs
    1x 1/8" / 3.5 mm TRRS Unbalanced Smartphone I/O

  • Outputs

    2x 3-Pin XLR Male Balanced Line Outputs
    4x 1/4" TRS Female Unbalanced Headphone Outputs

  • Input Gain

    Mic/Line Inputs: +10 to +54 dB

  • Input Impedance

    XLR: 3 Kilohms
    1/4" TRS/TS Line: 3 Kilohms
    1/4" TS Hi-Z: 510 Kilohms
    3.5 mm TRRS: 3 Kilohms

  • Maximum Input Level

    Mic/Line Inputs (Pad Off): -2 dBu at 0 dBFS
    Mic/Line Inputs (Pad On): +24 dBu at 0 dBFS
    1/4" TS Line Inputs: +4 dBu
    3.5 mm TRRS: +4 dBu

  • Phantom Power

    +48 VDC

  • Output Impedance

    XLR: 100 Ohms
    1/4" TRS: 10 Ohms

  • Maximum Output Level

    XLR: +14.5 dBu
    1/4" TRS: 10 mW per Channel (60-Ohm Load)

  • Buses

    Master: 1
    Monitor: 3
    Send EFX: 1

  • Channel Control

    Low-Cut Filter: 75 Hz at 12 dB/Octave
    High EQ (Shelving): +/-15 dB at 10 kHz
    Mid EQ (Peaking): +/-15 dB at 2.5 kHz
    Low EQ (Shelving): +/-15 dB at 100 Hz

  • Level Meters

    12 x 9-Segment LEDs

  • Effects

    8 Types

  • Recorder

    Maximum Simultaneous Recording Tracks: 12
    Maximum Simultaneous Playback Tracks: 10
    Format: WAV
    Bit Depth: 16-Bit or 24-Bit
    Sample Rate: 44.1, 48, or 96 kHz

  • Supported Media Card Types

    SDHC: 4 to 32 GB (Class 10 or Higher)
    SDXC: 64 to 512 GB (Class 10 or Higher)

  • Audio Interface

    Recording: 12 Channels
    Playback: 4 Channels
    Bit Depth: 24-Bit
    Sample Rate: 44.1 or 48 kHz
    Interface: USB 2.0

  • Card Reader

    Class: Mass Storage USB 2.0 High Speed

  • Frequency Response

    20 Hz to 20 kHz -1 dB at 44.1 kHz
    20 Hz to 40 kHz -3 dB at 96 kHz

  • Equivalent Input Noise

    121 dB EIN (IHF-A) at +54 dB, 150-Ohm Input

  • Display

    96 x 64 Backlit LCD

  • Power Requirements

    Battery: 4 x AA Batteries (Alkaline, NiMH, or Lithium)
    AC: Zoom AD-17 AC Adapter
    DC: 5 V, 1 A
    USB Bus Power

  • Battery Life

    Alkaline: Up to 2 Hours (Battery Save On, Phantom Power Off)
    NiMH: Up to 3 Hours (Battery Save On, Phantom Power Off)

  • Power Consumption

    5 W

  • Dimensions (W x D x H)

    10.55 x 11.1 x 2.91" (268 x 282 x 74mm)

  • Weight

    3.43 lb (1.56kg)

  • UPC Codes

    192223229624, 4961310125424, 192223105935, 192223075474, 192223075498, 619659155827, 42406088879, 884354021146

12 Accessories for Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder Bundle with SM7B Microphone, ATH-M40x Headphones, Broadcast Arm, XLR M to F Cable, 32GB microSD Card

  • All Accessories (12)
  • Memory & Storage (3)
  • Batteries & Power Supply (5)
  • Cables & Adapters (3)
  • Microphones & Audio (1)

About Zoom L-8

FEATURED REVIEWS

Simply the best for its price

By Rudys R.

Very very good.

Amazing sound quality! I am impressed Thank you LiveTrak, outstanding product!

By JAY R.

I have used the Peavey Unity Series mixers for the last 20+ years for video production primarily because they produce very little line noise. So I was a little apprehensive switching brands when it was time for an upgrade. WOW... not only does the L-8 LiveTrak produce almost no line noise whatsoever, but the sound quality is rich and full. These guys really did their homework when they designed this one. The SD recording feature decreased my workflow and increased my productivity.

How can you elevate your audio recording and mixing experience With the Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder Bundle, you can achieve professional-grade sound quality with ease. This comprehensive package includes a high-quality SM7B microphone, ATH-M50x headphones, a broadcast arm, an XLR M to F cable, and a 32GB microSD card, providing a complete solution for all your audio needs.

Designed for the modern creator, the LiveTrak L-8 is perfect for podcasters, musicians, DJs, and other audio professionals. Its innovative features are tailored to meet the unique needs of podcast creators, offering the flexibility of a full mixing console and Zoom's renowned audio performance. With six easily-assignable Sound Pads, you can effortlessly play intros, outros, jingles, ads, and sound effects at the touch of a button.

Remote interviews are a breeze with the LiveTrak L-8. Simply connect your phone via the provided TRRS cable or use the USB connection to route audio from Skype, Facetime, Hangouts, Slack, and more. The Mix-Minus function automatically prevents echo and feedback, ensuring crystal-clear communication.

The LiveTrak L-8 is equipped with six independent Zoom preamps, known for their transparency, power, and reliability. These preamps can handle anything from a whisper to a raucous debate, ensuring every sound is captured with precision. With four headphone outputs, each participant can monitor the audio clearly.

Recording on the go is made easy with the LiveTrak L-8's portability. It can run up to 2 1/2 hours with just four AA batteries or on a USB battery, allowing you to record from anywhere. The device also offers simultaneous recording to your computer and an SD card, and even live streaming while recording.

The LiveTrak L-8 also offers true multi-track recording, allowing you to record up to 10 discrete tracks plus a stereo mix directly to an SD card at resolutions up to 24-bit/96 kHz. With the ability to save up to 7 show "scenes", you can instantly recall your customized mixes at the press of a button.

Whether you're a solo artist or a small band, the LiveTrak L-8 is the ideal mixer and recorder for musicians who demand big sound. Its six high-performance preamps each offer phantom power, a low noise floor, and maximum input gain of +54dB. You can also fine-tune each channel with EQ and onboard effects.

In conclusion, the Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder Bundle is a comprehensive, professional, and durable solution for all your audio recording and mixing needs. Its innovative features and high-quality components make it a must-have tool for any audio professional.

Zoom L-8 Features

  • Designed for podcasters, musicians, and content creators on-the-go, the LiveTrak L-8 is an all-in-one mixer and recorder that offers versatility, portability, and affordability in a single package
  • With six Sound Pads that can be easily assigned, podcasters can access intros, outros, jingles, ads, and sound effects, and record each participant on their separate track to improve audio quality and editing flexibility
  • Featuring six independent Zoom preamps and four headphone outputs, the L-8 offers powerful and transparent audio recordings, allowing users to hear themselves and other participants clearly
  • Users can connect their phone via TRRS cable or use the USB connection to route audio from various apps, such as Skype, Facetime, Hangouts, Slack, with the Mix-Minus function preventing echo and feedback, making remote interviews a breeze
  • Six high-performance preamps, each with phantom power, low noise floor, and EQ and onboard effects, make the L-8 an excellent tool for musicians seeking to fine-tune each channel
  • The L-8 enables users to record up to 10 discrete tracks plus a stereo mix directly to an SD card at resolutions up to 24-bit/96 kHz, punch-in, and overdub with ease, and transfer their work to their preferred DAW for additional adjustments
  • Powered by four AA batteries or USB battery, the L-8 provides up to 1 ½ hours of power, working as a 12-in/4-out audio interface that allows users to track directly into their preferred DAW or run backing tracks from their computer
  • With the L-8, users can save up to 7 show "scenes" that can be saved and instantly recalled at the press of a button, making the process faster and easier
  • Ideal for singer-songwriters, small bands, and content creators who value performance and portability, the L-8 is small in size but big on sound
  • For podcasters and musicians who want to mix, monitor, and record professional-sounding content anytime and anywhere, the L-8 is a game-changer

Product Documents

User Manual

Key Features

  • Create pristine audio recordings with this portable multitrack recorder.
  • The LiveTrak L-8 mixer is perfect for podcasting, music, and live streaming.
  • Enjoy crystal-clear sound quality with the included Shure SM7B microphone.
  • Use the Audio-Technica headphones for accurate monitoring and mixing on the go.
  • Easily connect instruments & mics with 8 channels on this digital recorder.
  • The broadcast arm ensures optimal microphone placement for clear recordings.

What's in the box:

  • LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
  • 3.5mm TRRS Cable
  • USB Cable
  • AD-17 AC Adapter
  • Quick Guide
  • Zoom 1 Year Limited Warranty
  • Shure SM7B Cardioid Dynamic Studio Vocal Microphone
  • Audio-Technica ATH-M40x Professional Monitor Headphones
  • H&A Broadcast Arm
  • Value Series XLR M to F Professional Microphone Cable
  • 32GB microSDHC Memory Card
