Review Summary
Black
1 amplifier, 1 studio ambience and 1 other effect
80
44.1 kHz
24-bit 128 x oversampling
24-bit 128 x oversampling
32-bit
20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10k Ohm load)
160 x 128 dot-matrix LCD
Standard mono phone jacks (L/R)
Rated input level: -20 dBu
Input impedance (line): 470 k Ohm
Standard stereo phone jacks (combined line/headphone) (L/MONO/headphone)
Maximum output level: +7.2 dBu (when output impedance 10 k Ohm or higher)
Maximum output level: 20 mW + 20 mW (when 32 Ohm load)
Standard mono phone jacks (R)
Maximum output level: +7.2 dBu (when output impedance 10 k Ohm or higher)
122 dB
-100 dBu (L/R)
AC adapter: 9V DC 500mA center negative (ZOOM AD-16)
2x AA batteries (alkaline, lithium or rechargeable NiMH batteries)
USB bus power is supported
Alkaline batteries: about 3.5 hours (about 3 hours using stereo input)
Ni-MH batteries (1900 mAh): about 4 hours (about 3.5 hours using stereo input)
Lithium batteries: about 7.5 hours (about 6.5 hours using stereo input)
Port: USB 2.0 Type-C
Supported cable type: Type-C
Handy Guitar Lab: USB 1.1 Full Speed
Audio interface: USB 2.0 Full Speed, 44.1kHz/32-bit, 2 in 2 out
Optional, not included
Alkaline
AA
2
5.24 x 3.11 x 2.4" (133 x 79 x 61mm)
Excluding batteries: 13.02 oz (369g)
Including batteries: 14.67 oz (416g)
4515260029846
For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.
23 Awesome Classic & Modern Amps

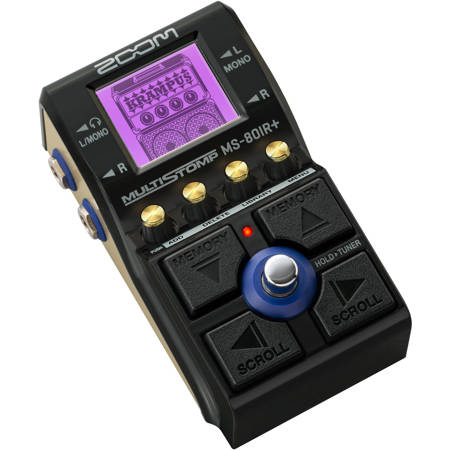

The MS-80IR+ gives guitarists an incredible assortment of amps created using the latest in IR and modeling technology. It comes fully stacked with 23 of the world's most revered amps and cabs.
Expert Amp Modeling
By analyzing individual sections of circuitry, Zoom engineers modeled 16 of the greatest amps in history and created an additional 7 Zoom originals.
The Power of Multi-Layer IR
Zoom's innovative Multi-Layer IR technology, combines 3 IR's recorded at different volumes to recreate the sound and feel of playing through classic amps and cabinets.
Effects & Studio Sound
Beautiful Studio Sounds
Choose from 5 studio effects to add natural ambience to your sound including Concert Woody Studio, Urban Studio, Live Music Club, and more.
12 Essential Effects
The MS-80IR+ also has 12 effects including noise gates, EQs, and delays.
Create and Save Up to 80 Patches
Combine an amp, studio sound and an effect to craft your own unique patches.
Better in Stereo
The MS-80IR+ features stereo effects and dual input and output jacks allowing you to create immersive stereo tones.
Late Night Sessions
When an idea hits you at midnight, the built-in headphone output lets you practice anytime.
Split Your Outputs
When playing live, send one signal with Amps/IR's to a PA, and the other without IR's to your amplifier using the Output Splitter.
Handy USB-C Audio Interface
Record into your computer or smartphone by connecting the MS-80IR+ via USB-C, or play along with your favorite songs in audio interface mode.
Easy Navigation
Control Knobs
Fine-tuning and adjusting amp models and effects can be done with the four encoder knobs.
Cross Key Switches
The Cross Key switches allow you to easily switch between amps, effects and patches with a tap of your foot.
Tuner
The onboard chromatic tuner uses the color backlight to give visual feedback to help you tune quickly and accurately. It supports all standard guitar tunings, including alternate and drop tunings.
MIDI
With USB MIDI, you can connect the MS-80IR+ to other MIDI gear to remotely trigger patch changes.
Featured Software
Handy Guitar Lab
Using Handy Guitar Lab you can browse effects, backup patches, and load up to 80 IR's. Handy Guitar Lab for MS-80IR+ app is available for iOS/iPadOS.
You Can Load Your Own Way
Personalize your guitar tone by loading IR's from your own collection. Load up to 80 third-party Impulse Response (IR) data via the Handy Guitar Lab for MS-80IR+ app for iPhone/iPad or the IR Loader for MS-80IR+ app for Windows/Mac.
