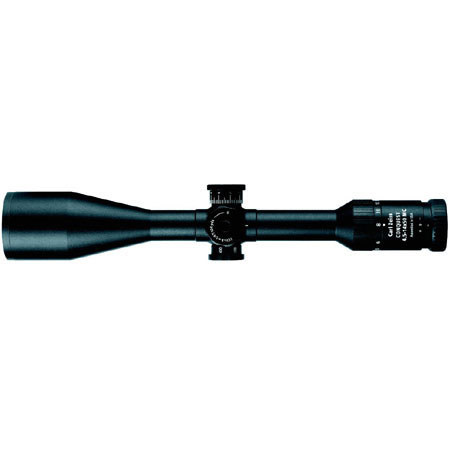

Zeiss 4.5-14x50 Rifle Scope Specifications

  • Catalog #

    521490 9920

  • Magnification

    4.5x - 14x

  • Objective / Field of View

    50mm.

  • Field of View

    25.5' @ 4.5x at 100 yds., 8.84' @ 14x at 100 yds.

  • Main (Center) Tube Diameter

    1 inch

  • Objective Tube Diameter

    50mm

  • Lens Coatings

    Carl Zeiss MC Multi-coating on all Glass-to-Air Surfaces

  • Reticle

    Z Plex Reticle

  • Reticle Image Plane (Magnifying)

    2nd (no)

  • Exterior Finish

    Matte Black.

  • Windage & Elevation Adjustments (MOA)

    45.68"

  • Adjustment Graduation

    ¼ MOA = 0.7 cm per Click at 100 m
    • 0.28" per Click at 100 Yards.

  • Exit Pupil

    10.8mm @ 4.5x / 3.6mm @ 14x

  • Eye Relief

    3.5" @ 4.5x / 3.5" @ 14x
    • Consistent Eye Relief Throughout the Power Range.

  • Parallax Correction Control

    Parallax free 30 yards to Infinity

  • Diopter Adjustment

    +2 to -3 Diopters

  • Material

    One Piece Aluminum Tube

  • Nitrogen Filled

    Yes

  • Waterproof / Fogproof

    Yes

  • Length

    14.02"

  • Weight

    19.75 oz.

  • Special Features

    Lifetime Transferrable Warranty, Turret Adjustable Objective.

  • UPC Code

    740035594470

8 Accessories for Zeiss 4.5-14x50mm MC Conquest Series Riflescope, Matte Black Finish with Z Plex Reticle, Target Turret & Turret Adjustable Parallax.

  • All Accessories (8)
  • Sights & Accessories (2)
  • Cleaning Accessories (5)
  • Bags & Cases (1)

About Zeiss 4.5-14x50 Rifle Scope

The Conquest Series...

High performance, light weight, compactness and top quality, these were the challenges to be met by the new Zeiss CONQUEST riflescopes for the North American market. Zeiss has now achieved these ambitious goals by redesigning the optical system using glass materials which contain no arsenic or lead.

And that is by no means all: large eye relief, wide fields of view and peak transmission values are further outstanding features. In addition, this is all available at an attractive price.

With these excellent features, Zeiss CONQUEST riflescopes meet the demands made by American hunters and their local hunting conditions.

Zeiss 4.5-14x50 Rifle Scope Features

  • 1 inch diameter center tube for ring mounting
  • One piece tube body for superior ruggedness
  • Available with hard anodized black or stainless surface finish. The latter blends perfectly with stainless all-weather weapons
  • 6 different reticles including Z-Plex and reticle 4
  • Non-magnifying reticles throughout the entire power range to ensure that the reticle size remains constant and hides as little of the target as possible at long ranges
  • Parallax-free at 100 yds or with parallax adjustment (AO) in the CONQUEST 4.5-14x44 AO MC and CONQUEST 6.5-20x50 AO MC
  • Easy-to-use reticle adjustment with ¼ MOA = 0.7 cm per click at 100 m allows quick and precise sighting in
  • Large square reticle adjustment range - elevation and windage adjustments do notaffect each other even at the ends of the adjustment ranges.
  • Long eye relief of 4" with the CONQUEST 3-9x40 MC and 3.5" with the other scope models
  • Continuous eyepiece focusing from +2 to -3 diopters
  • No change in the point of impact after power change or re-focusing
  • Carl Zeiss MC multi-coating on all glass-to-air surfaces for maximum transmission (markedly above 90 %), color fidelity and brilliance
  • Waterproof in compliance with ISO 9022-8 - even with elevation caps removed
  • Nitrogen filling to prevent fogging on the inner lens surfaces
  • Lifetime Transferrable Warranty
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

What's in the box:

  • Lifetime Transferrable Warranty, Lens Caps, Cleaning Cloth.
