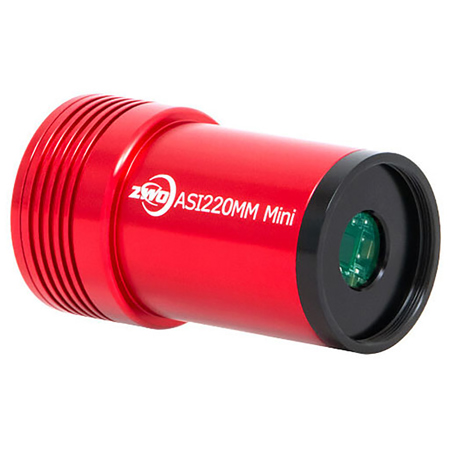

ZWO ASI220MM Mini 2.07MP USB-C 2.0 Mono Astronomy Camera, Red

ASI220MM Mini camera integrates 1/1.8" SC2210 sensor (7.68mm x 4.32mm). It is a mono guide camera with excellent near infrared sensitivity. This camera has 4microm x 4 microm pixels with an array of 1920x1080 and a full well capacity of 8780e. The protective window is AR coated.

• Sensor: SC2210
• Type 1/1.8: 7.68 x 4.32mm
• Resolution: 1920 x 1080
• ADC: 12bit
• Read noise: 0.6e
• FPS 14
• QE 92%
• USB 2.0

Iteration
ASI220MM Mini can be regarded as an upgraded version of the ASI290MM Mini. It has a bigger sensor format and larger pixel size with better NIR sensitivity.

Camera performance: Readout noise
The readout noise of ASI220MM Mini can be as low as 0.6e

Quantum Efficiency
We assume the QE peak value of ASI220MM Mini is 92% at 500nm.

USB 2.0 Port & ST4 Port
• ST4 Port: The camera can be connected directly to the auto-guider port of the mount
• USB 2.0 Port: The camera features a USB-C 2.0 port that provides you with an easier connection method than the ordinary USB port

In connection with OAG
The Mini camera series are all well suited for OAG use. It can be pushed inwards or pulled outwards to allow you to ensure that the distance from the prism to the main camera sensor is exactly equal to the distance from the prism to the guide camera sensor.
