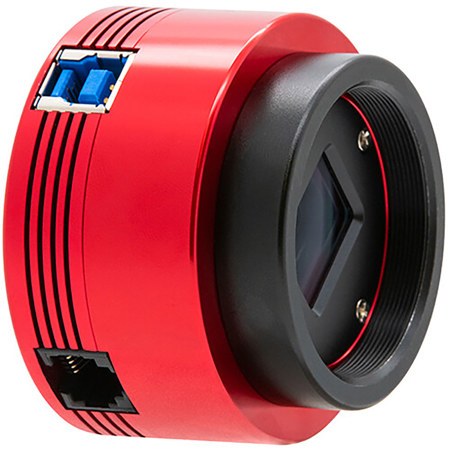

ZWO ASI585MC 8.29MP USB 3.0 Color Astronomy Camera

Astronomical camera with large full well capacity
ASI585 adopts Sony IMX585 CMOS sensor. As one of ZWO's latest planetary cameras, it features a large sensor format of 1/1.2", a high resolution of 3840 x2160, and a surprisingly amazing characteristic of ZERO AMP GLOW! The pixel size is 2.9microm x2.9microm. In 12-bit mode, it produces 46.9 FPS with super low readout noise!

8.29MP Senor
ASI585 has the same pixel size of the ASI462 at 2.9microm, but its resolution is 4 times that of ASI462 (Not Included), which is a total of 8.29 megapixels. The sensor size is 11.13 x6.26mm, and the diagonal length is 12.84mm. The 1/1.2" large sensor format makes it very suitable for solar and lunar imaging. It can also be used as an all-sky camera or live camera to observe and monitor cloud cover, rain, meteors and other weather conditions.

STARVIS 2
ASI585 adopts the latest SONY IMX585 sensor with STARVIS 2 technology. Featuring zero amp glow, lower dark current noise, and 3 times larger full well capacity, this camera is regarded as an upgrade of ASI485 (Not Included). It is also more sensitive to red, green and near infrared (NIR) lights compared to ASI485, especially in >850nm wavelength range, its light sensitivity is 1.5 times greater than ASI485.

USB 3.0 & 256MB DDR3 Memory
The camera is equipped with a USB 3.0 transmission interface and a built-in 256MB DDR3 cache to ensure stable and secure data transmission. Under long exposure, it effectively avoids frame dropping and greatly reduces the glow effect caused by slow reading speed.

Large Full Well Depth
Thanks to the back-illuminated sensor structure and advanced pixel technology, the camera has very low readout noise and a large full well depth. Especially in low light conditions, the camera performs excellent, capturing very clear images of celestial objects.

Camera Curve - Low read noise, high dynamic range
The camera has a built-in HCG mode, which can effectively reduce readout noise at high gain and allow the camera to maintain the same high dynamic range as it does at low gain. When the gain is 200, the HCG mode is automatically turned on and the Dynamic range reaches a level close to 12bit. The readout noise is as low as 1.5e.

Quantum Efficiency
After our calculation, the peak quantum efficiency of ASI585 is 91%.

No Amp Glow
ASI585 exhibits zero amp glow, no matter how long the exposure and how high the gain value. Since it is implemented directly at the hardware level, it does not require software control.
