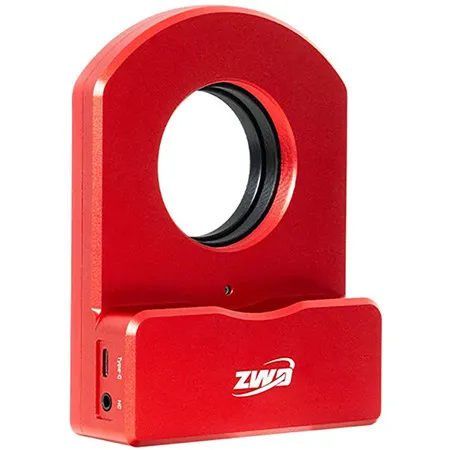

ZWO CAA Camera Angle Adjuster Motorized Rotator

Rotate your camera with ease and compose your shots with one click - ZWO CAA (Camera Angle Adjuster) is ZWO's new camera rotator, designed to meet the needs of astro imagers looking for that perfect image composition. Its outstanding performance, simplified composition process, and automated software control make astrophotography composition easy. ZWO CAA makes astrophotography easy and fun.

Compact and Lightweight Design
Despite its lightweight design, the ZWO CAA offers exceptional performance. Measuring 16.5mm thick it replaces the standard ZWO adapter. Weighs only 465g.

High Efficiency
The ZWO CAA is equipped with a high-efficiency stepper motor for smooth and precise operation, which can be positioned precisely to the target angle. Its robust internal structure guarantees zero deformation in the full 360 Degree rotation, ensuring stable and precise operation.

High Positioning Accuracy: 0.02 Degree /step
ZWO CAA adjusts the camera angle with an accuracy of 0.02 Degree for each step. The positioning accuracy of the ZWO CAA is better than 0.1 degrees, and the adjusted angular error will not exceed 0.1 Degree .

High Rigidity and High Load Capacity: <=2.5N.m
The ZWO CAA is highly rigid and able to withstand torques less than or equal to 2.5Nm, maintaining operational accuracy and structural stability even under high load conditions.

High Speed: 7.5 Degree /s
The ZWO CAA rotates at a speed of up to 7.5 Degree per second, reducing waiting times.

Multi-Compatibility
The ZWO CAA is compatible with a wide range of telescope types and supports multiple imaging software, including ASIAIR, ASIStudio, and ASCOM. It also allows manual control via a compatible hand controller

Note: The hand controller is not included in the standard package and must be purchased separately.

Easy Cable Management
ZWO CAA reduced cable management needing only a single Type-C data cable for power supply and control.

Connection
With the ZWO FF series refractors, with or without the reducer, you can use the standard adapters (M48) supplied with the telescope and your ZWO camera replacing the 16.5mm adapter with the CAA. If you have a Duo or 2600AIR camera and wish to use M54 then an optional adapter is available as an accessory.
