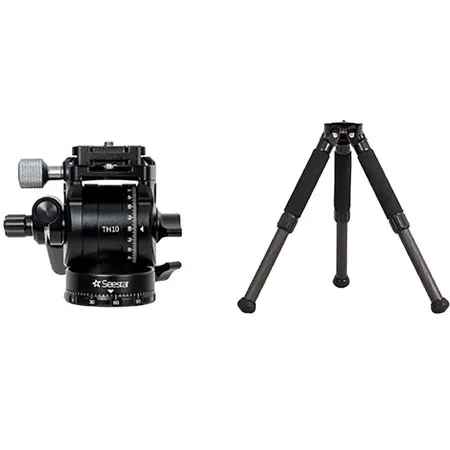

ZWO TC20 2-Section Carbon Fiber Tripod with TH10 Fluid Head for Seestar Smart Telescopes

- TC20 2-Section Carbon Fiber Tripod -
Upgrade your Seestar setup with the TC20 Carbon Fiber Tripod, a lightweight, sturdy, and adjustable tripod-perfect for a Seestar S30 or Seestar S30 Pro, or for a Seestar S50 in need of a replacement for the stock tripod.

Adjustable Height & Easy Leveling
The TC20 tripod can be adjusted between 9.3" and 14.4" (235-365 mm) tall, with independently adjustable legs that make it simple to level your setup on uneven terrain.

Lightweight & Portable Design
Constructed from carbon fiber, the tripod weighs just 1.3 lbs (0.59 kg) while supporting up to 66 lbs (30 kg) of equipment. It folds down to 10.4" (265 mm) and comes with a protective drawstring carrying bag for convenient transport.

Wide Compatibility
Features a standard 3/8" threaded mounting screw for easy installation with a wide range of devices and accessories.

Enhanced Stability
Equipped with rubber feet to ensure a secure, non-slip grip while reducing vibrations on various surfaces for steady performance.

Connection Method
When using Seestar S50's TC20 tripod with the TH10 tripod head, be noted that the tripod head might hit the tripod leg at some certain angles. Thus, this combo is not compatible with regions located below 15 Degree latitude. Note: TC20 is the tripod that comes with the Seestar S50.

After unfolding the tripod, adjust each leg to the desired length and securely lock them in place. Then, place the tripod body on a flat, stable surface. Align one leg roughly towards the north (in the Northern Hemisphere). Carefully observe the spirit level and adjust the leg height to ensure the bubble is centered within the marked circular indicator. At this point, the tripod is properly set up.

First, install TH10 by screwing the 1/4" to 3/8" threaded screw adapter into the Seestar, subsequently, use a coin wrench to tighten the screws of the adapter.

Attach the quick release plate, making sure it fits securely with the Seestar. Then, tighten the screws on the quick release plate to ensure proper polar alignment during the setup process.

Tighten the horizontal adjustment knob at the bottom of the TH10 and attach the TH10 to the tripod. Then, loosen the knob and keep the dovetail groove pointing North, which should align with the north-facing support leg. Finally, tighten the knob.

Install the Seestar device onto the TH10, aligning it with the dovetail groove. Tighten the knob firmly to ensure the equipment is secure. Once confirmed, the installation is complete.

- TH10 Fluid Head -
Seestar TH10 hydraulic tripod head is specially designed for use with Seestar smart telescopes in equatorial mode. It also compatible with most SLR cameras, mirrorless cameras, video cameras, and more.

Made of durable full-metal construction, Seestar TH10 tripod head is compatible with most tripods and accessories on the market. It comes with a quick-release plate that supports both 3/8" and 1/4" screws, allowing for easy setup with a wide variety of devices. With a self weight of 411g, this tripod head can carry a large payload of 5kg.

Note: The TC20 + S50 setup is not supported in regions with a latitude below 15 Degree when used in equatorial mode.

Compact and Portable
Seestar TH10 is a compact hydraulic tripod head, with a height of just 84mm and a weight of only 411g. The base diameter is 50mm. Made from CNC-machined aluminum alloy, it offers a premium feel and enhanced durability, all while being incredibly lightweight. Perfectly designed for use with the Seestar smart telescope in equatorial mode.

Hydraulic Damping System
Featuring an ergonomic hydraulic damping system, the Seestar TH10 tripod head makes polar alignment smoother than you expect. With just a light touch, you can easily adjust the pan and tilt scale, making it perfect for beginners!

Wide Range of Shooting angles
Seestar TH10 tripod head supports 360 Degree pan and -90 Degree to 90 Degree tilt, offering moderate damping for smooth adjustments and stable control. When used with Seestar, you can quickly calibrate the angles by the scale and switch to equatorial mode with a single click on the app. The intuitive knobs ensure secure locking, allowing for effortless multi-angle shooting. (360 Degree Pan | -90 Degree to 90 Degree Tilt)

Wide Compatibility
Seestar TH10 tripod head features a standard 1/4" screw on top, compatible with most SLR cameras, mirrorless cameras, video cameras, and more, with an included adapter for 3/8" screws, making it perfect for Seestar series. The base has a 3/8" screw hole, ensuring compatibility with most tripods, monopods, and desk mounts. With a high load capacity of up to 5kg, it's built to handle your equipment with ease.
