Zylight F8-200 Daylight LED Fresnel Studio Kit, Includes Yoke AC Adapter Mount and DMX Interface Box

SKU: ZY2601066

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Zylight F8-200 Specifications

  • Power Requirement

    24-32 VDC

  • Energy Consumption

    200W max. [10.0A at 24VDC]

  • Power Input Plug

    XLR 4-Pin

  • AC Power Supply

    120 - 240V AC, 50/60Hz

  • Color Temperature

    5600K

  • CRI Index

    Up to 95 CRI

  • Beam Angle

    16 deg. - 70 deg. , Variable Spot-Flood

  • Method of Focus

    Rear knob. Continuously variable. No modifying lenses needed

  • Dimming

    0-100% (13-100% using ZyLink Remote)

  • Cooling

    Active/Ultra Silent Fan

  • Operating Range

    -20 to 35 deg. C (-4 to 95 deg. F)

  • Wireless Frequency

    2.45 GHz

  • Wireless Channels

    10, User Selectable

  • Assembly Materials

    Machined aluminum and high impact plastic

  • Calibration

    Factory

  • IP Rating

    54

  • Variable Refresh Rate

    (PWM) 11.8 KHz

  • LED Life

    50,000 hrs. min

  • Flicker Free

    Up to 5,600 fps tested (Full brightness)

  • DMX Channels

    CH1- On/Off, CH2- Brightness (0-100%)

  • Dimensions

    15 x 12.6 x 4.6" (38.10 x 32.00 x 11.68cm)
    Optical: 8" (20.32cm) Round traditional Schott glass Fresnel lens

  • Weight

    10.25 lbs (4.65kg)

  • UPC Code

    048777641675

About Zylight F8-200

HMI Output. Zylight Quality
Built on the award-winning F8 platform, the F8-200 LED Fresnel is the new standard of portable LED lighting. It continues the Zylight tradition of combining high quality optics, innovative design, rugged broadcast-quality construction and high color accuracy, with twice the light output. Available in both 3200K or 5600K color temperature versions, the F8-200's advanced ultra-bright LED module ensures excellent skin tones and rich, accurate color rendition. Of course, the F8-200 has all the hallmarks of a traditional Fresnel light, including single shadow beam shaping with adjustable beam spread (16-70 degrees), continuous focus and a high-quality 8" lens for a smooth light field.

Field or studio friendly
The F8-200 collapses to less than 5" thick, for easy transportation and storage in one of our custom single or dual ATA-rated soft cases. It comes with a worldwide AC adapter or you can power it in the field from a pair of standard 14.4V camera batteries, for complete portability. Its a water-resistant IP54 rating ensures the F8-200 will keep shining in rain, snow or dust.

HMI Who?
The Zylight F8-200, in its daylight edition, gives you the same punch and light quality of a 400W HMI while consuming half the power and in a package as small as some 400W HMI's ballasts. No more worrying about hot lights, expensive bulb burnouts, flicker, voltages, bulky DC converters, hot restrikes, rain or snow. And the F8-200 costs half as much as many HMI packages.

Yoke AC Adapter Mount
Holds F8 Worldwide Power Supply to yoke of F8.

DMX Interface Box
DMX breakout box for multiple F8 DMX use. True 5-pin DMX512A in/out for daisy chaining fixtures.

Zylight F8-200 Features

  • Thin & Lightweight Design
  • Water Resistant IP54 Rating
  • Variable Spot-Flood
  • Ultra Silent Fan Cooling
  • Single Shadow Beam Shaping
  • Fully Dimmable 100 - 0%
  • DMX or Wireless Operation
  • 14.4v Battery or Worldwide AC Power
  • Yoke Mount for Pan & Tilt
  • Sturdy, Durable Aluminum Construction
  • Made Production Tough in the USA

Product Documents

User Manual

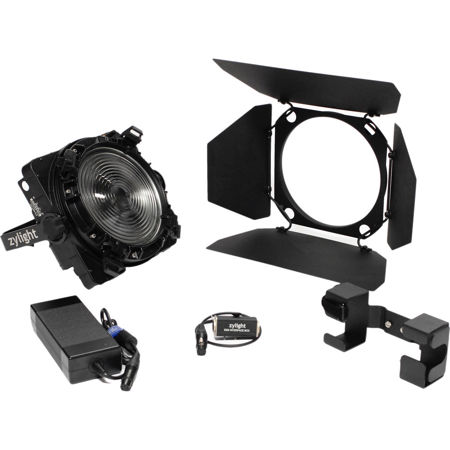

What's in the box:

  • Zylight F8-200 Daylight LED Fresnel
  • Worldwide Power Adapter
  • Yoke AC Adapter Mount
  • DMX Interface Box
  • Barndoors
  • User Guide
  • Zylight 2 Year Limited Warranty with Registration
