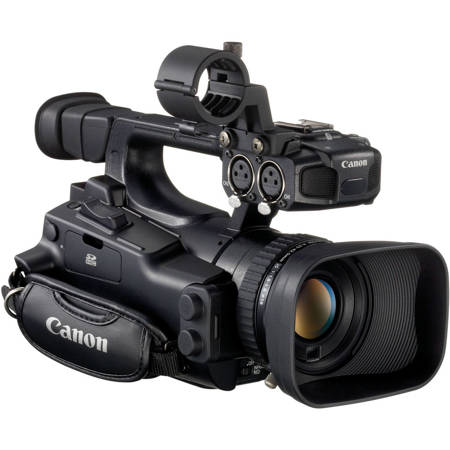

Canon XF-105 High Definition Professional Camcorder, XF Codec, CF Card Media, 10X HD Zoomlens, 1920x1080 CMOS Sensor

Canon
Canon XF-105: Picture 1 thumbnail Canon XF-105: Picture 2 thumbnail Canon XF-105: Picture 3 thumbnail Canon XF-105: Picture 4 thumbnail Canon XF-105: Picture 5 thumbnail Canon XF-105: Picture 6 thumbnail

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $79.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $119.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $168.95
Top Rated Gear

Our Price

$2,999.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Canon XF-105: Picture 1 regular $2,999.00

About Canon XF-105

Compact in size, light weight and fully featured, the Canon XF105 Professional Camcorder can be tailored to fit a wide range of individual needs. While sharing many of the capabilities of the Canon XF305 and XF300 Professional Camcorders, including the Canon XF Codec and Compact Flash (CF) recording, the XF105 offers some exciting new features of its own.

Whether used as a companion to the XF305 or XF300 or as a standalone camcorder, the XF105 is geared for a wide range of applications where high image quality, extreme portability and efficient workflow are of the utmost importance. And with infrared recording and true stereoscopic 3-D production capabilities, the XF105 allows users to explore new creative outlets and emerging markets.

The XF105 utilizes Canon's XF Codec - a file-based MPEG-2 compression with an MXF File Wrapper that ensures the widest compatibility with existing industry infrastructure, metadata and non-linear editing (NLE) systems. The codec's 4:2:2 color sampling provides ultra-fine transitions in tone and color for maintaining the highest image quality needed for advanced post production processing.

The XF105's newly developed Genuine Canon 10x HD Video Lens along with a Canon native 1920 x 1080 CMOS Image Sensor delivers exceptional image quality. The XF105 also offers multiple recording bit rates, resolutions and variable frame rates to expand creative flexibility, allowing users to work in virtually any production environment.

Incorporating industry-standard HD-SDI output, genlock input SMPTE time code input/output terminals makes the Canon XF105 perfectly matched for live application and multi-camera shooting.

Summary of Customer Reviews

(3)
Customers most agreed on the following attributes:
Pros:
Great picture quality (3)
Best Uses:
HD shooting (3)

Canon XF-105 Features

  • MPEG-2 4:2:2 50Mbps Codec (Canon XF Codec): Canon's adaptation of MPEG-2 for the XF105 Professional Camcorder, named the Canon XF Codec, ensures the widest compatibility with existing industry infrastructure and non-linear editing (NLE) systems
  • 4:2:2 Color Sampling: 4:2:2 color sampling provides twice the color resolution of HDV and other codecs that use 4:2:0 color sampling. 4:2:2 provides ultra-fine transitions in tone and color and maintains the highest quality image for use in post production processes
  • Record to Compact Flash Cards: The camcorder features two CF card slots and offers versatile recording functions including relay recording, hot swapping, file copy & backup, and pre-record
  • Major NLE Software Compatibility: Canon's XF Codec is supported by the industry's leading manufacturers: Adobe, Apple, Avid and Grass Valley. This ensures the widest compatibility with existing infrastructure and non-linear editing (NLE) software
  • MXF Wrapper: The XF105 uses Material Exchange Format (MXF) for its file structure - an internationally standardized container format for the exchange of video and audio material. Using the MXF format, video and audio can be wrapped into a single file along with important metadata
  • Genuine Canon 10x HD Lens: Canon's optical expertise is clearly seen in the XF105's Genuine Canon 10x HD Video Lens. It delivers flexibility in image capture with a zoom range of 30.4 - 304mm (35mm equivalent)
  • Canon Native 1920 x 1080 CMOS Image Sensor: Newly designed and manufactured exclusively by Canon, the XF105 incorporates a native 1/3", 1920 x 1080 CMOS image sensor, delivering superb full HD video recording with minimal noise
  • HD-SDI Output, Genlock and SMPTE Time Code: Aside from providing the professional user with complete control over the image, the Canon XF105 also provides complete creative freedom when it comes to inputs and outputs
  • Multiple Bit Rates, Resolution, and Frame Rates: Multiple recording modes, resolutions and frame rates make the XF105 Professional Camcorder creatively flexible and able to work in virtually any production environment
  • Canon DIGIC DV III Image Processor: The XF105 features Canon's powerful DIGIC DV III Image Processor, which provides enhanced shading, lifelike tonal gradations, new custom picture settings and lower power consumption
  • Built-in 3-D Assist Features: The XF105 has the ability to be paired with another XF105 or XF100 camcorder to provide true stereoscopic 3-D recording. It offers several features to assist with 3-D production including OIS Lens Shift to aid in optically aligning the two camcorders
  • Infrared Recording: The XF105 features an Infrared Mode allowing users to capture video in conditions with little to no ambient light, a situation which would make other camcorders useless. During infrared capture, the infrared cutoff filter is removed from the optical path
  • Brilliant Ergonomics: The XF105 is designed as an ultra-compact camcorder without compromising on features and usability. Its small size makes this camcorder ideal in situations where every inch and ounce count, such as flying to location or going on expedition
  • Neutral Density Filter: For enhanced versatility, the XF105 offers a built-in gradation type neutral density (ND) filter (approximately 1/8), as well as an eight-blade metal aperture iris
  • SuperRange Optical Image Stabilizer: The XF105 also incorporates a newly designed SuperRange Optical Image Stabilization system (lens shift) with three modes: Standard, Dynamic and Powered
  • Instant AF: When shooting high definition video, sharp focus becomes more critical than ever. Canon's proprietary Instant AF system combines an external AF sensor with Canon's legendary auto focus system for fast and accurate focus
  • 8-Blade Iris: In contrast to a typical 6-blade iris, the XF105's 8-blade iris captures extraordinarily smooth out-of-focus "bokeh" for a more attractive image effect
  • Digital Teleconverter: The Digital Teleconverter extends the reach of the optical zoom, and is selectable by 1.5x, 3x and 6x. This feature is ideal when extreme telephoto shooting is needed such as in sports and wildlife, as well as, surveillance applications for law enforcement and the military
  • Slow Motion and Fast Motion: Slow and Fast Motion Modes allow the XF105 to record a different frame rate than the playback frame rate, resulting in either a fast or slow motion effect during playback
  • Interval Recording: With this feature, users can program the camera to record a specified number of frames at specified intervals. The technique can be used to observe natural phenomena over extended periods, making it ideal for time-lapse applications
  • 3.5" 920K Dot LCD Monitor: A 3.5", 920,000 Dot LCD monitor provides an ample, accurate area for critical focus confirmation and approximately 100% field of view. The display opens on the left side of the camera body
  • 260K Dot Electronic Viewfinder: The XF105 features a 0.24", 260,000 Dot Color EVF and approximately 100% field of view coverage for comfortable viewing and accurate judgment of composition. Brightness, contrast, color and backlight are adjustable
  • Focus Assist Functions: With Canon's new Edge Monitor Focus Assist system, a red and green monitor is shown at the bottom of the LCD display and three red focus check areas are shown across the display
  • Peaking/Magnify: Two peaking modes and a magnify focus assist function are available in standby and record mode (LCD monitor and EVF), making it extremely easy for the XF105 operator to check and confirm critical focus
  • Exceptional Customization: Users of the XF105 Professional Camcorder have full manual control of all camera functions to adapt to both technical and artistic challenges when shooting

Canon XF-105 Specifications

Standard Definition or High Definition
High Definition
Power Supply (rated)
7.4V DC (battery pack)
Video Recording system
Compression: MPEG-2 Long GOP
Color Space: 4:2:2 (at 50Mbps recording)
File Format: MXF
Recording Modes:
50Mbps (CBR) 4:2:2, 1920x1080, (60i/30p/24p), 1280x720 (60p/30p/24p)
35Mbps (VBR) 4:2:0, 1920x1080 (60i/30p/24p), 1280x720 (60p/30p/24p)
25Mbps (CBR) 4:2:0, 1440x1080 (60i/30p/24p)
Audio Recording system
2-Channel, PCM digital recording, 16-Bit; 48kHz
Image Sensor
1/3-inch CMOS
Total Pixels
Approx. 2.37 megapixels (2044 x 1160 pixels)
Effective Pixels
Approx. 2.07 megapixels (1920 x 1080 pixels)
Maximum recording Time
64GB Compact Flash (CF) card
Greater capacity is possible when two cards are used.
25Mbps: 310 minutes
35Mbps: 225 minutes
50Mbps: 160 minutes
Lens
Canon 10x HD Zoom Lens, 4.25-42.5mm (35mm equivalent 30.4-304mm), f/1.8-2.8
Focusing System
TVAF plus External Phase Difference Metering Sensor, Autofocus (Instant AF, Medium AF, Normal AF, Face AF, Face Only AF), Manual, Full Manual
Max Shutter Speed
1/2000
Minimum Focusing Distance
20mm (wide macro), 60cm (entire zoom range)
White Balance
Auto, Manual, Custom (2000K - 15000K in 100K increments), Daylight, Tungsten
Frame Rate
60i, 60p, 30p, 24p (50i and 25p optional upgrade available through Canon Factory Service Center)
Minimum Illumination
Full AUTO mode: 4.5 lux (Shutter speed 1/60, Gain +24dB); Manual mode: .11 lux (shutter speed 1/4, Gain +33dB), (when 60i is selected)
Genlock Terminal
BNC (input only) Same terminal as Time Code
HD/SD-SDI Terminal
BNC (output only), with embedded audio and time code
Timecode Terminals
BNC (input/output) Same terminal as Genlock
Image Stabilization
SuperRange Optical (Lens Shift) 4 modes: Standard, Powered, Dynamic, Off
Filter Diameter
58mm
Viewfinder
0.24-inch color widescreen, approx. 260,000 dots, approx. 100% field of view
LCD Screen
3.5-inch color widescreen LCD, approx. 920,000 dots, approx. 100% field of view
Microphone
Stereo electrect condenser microphone
Recording Media
CF Card: 2 Slots, Movie files only
SD Card: Still images, Custom Picture Data, Clip Metadata, Custom Settings
USB Terminal
Mini-B USB 2.0 Hi-Speed
Video Terminal
Component: Output only
Composite: A/V terminal 3.5mm mini-jack, output only
Audio Terminal
XLR 3-pin jack (2), Switchable between MIC/LINE, 3.5mm stereo mini-jack
HDMI Terminal
Yes (Type A)
AV Mini Terminal/Headphone Terminal
3.5mm stereo mini-jack
Remote Control Terminal
Yes (compatible with LANC protocol)
Operating Temperature range
0deg. - 40deg. C, 32deg. - 104deg. F, 85% relative humidity
Dimensions
4.8" x 5.8" x 9.8" / 121 x 148 x 250 mm
Weight
2.8 lbs / 1290 g
Mfr #
4885B001
SKU
CAXF105

Canon XF-105 Reviews

Reviewed by 3 customers


5.0

Video Man

By

from Houston, TX  -  Pro Videographer

This camera does it all for the legal video specialist, it has the time stamp in seconds and so many option and adjustment for video, white balance, audio, fade to black, color bars and so on. Excellent camera for any pro video person


4.0

Great Picture Quality!

By

from Portsmouth, OH  -  Semi-pro Videographer

I shoot wrestling, mma, and dance. Got this camera out of the box on Thursday and had to shoot with it Saturday for an all day Dance Competition. What an improvement over my GL2s! Love the Menu and interface. Love how everything I need is built into the camera rather than hooking up multiple adapters. XLR inputs seem to work very well too. Cons: Only cons I have with the camera are -Quick pans with the camera seem a bit off. Hard to describe. -I also wish it had an internal hard drive to go along with the 2 CF Card slots. -Zoom does not go as far as teh GL2s unless there is a setting that I haven't found yet.


5.0

Love this camera

By

from Deltona, Fl  -  Video Enthusiast

Alright, so about a year ago I got a job as a media director at a church. This job consist of almost anything to do with digital media and then some. When I got here there were things I wanted to change because, well they were outdated. I came from our schools webcast team and have had plenty of experience with broadcasting and producing. Well I get here and the camera they have is about 15 years old and I was like ohhh this thing has to go. Well finally after about 10 months and having some extra money we got this baby. The main reason we got this camera was because it was the cheapest we could find with BNC connectors. Needless to say we have only had the camera for about 3 weeks and it is amazing. It is a lot smaller then what I thought it was going to be. But this baby has amazing image quality. I mean crystal clear and beautiful image quality. And the nice thing is that even recording at 1080 the videos files aren't that large. Soon we will be shooting a lot more videos with this, instead of using my HDSLR camera. Also it will be nice to use to go around and grab really nice footage of events that we put on year around. This lil guy is light so it won't be a pain to lug around all day for a long event. Now as for some of the settings I wish I had just a little bit more control over things like gain and shutter speed. You can store 3 presets for for each of these options along with the automatic setting. But this isn't something to complain about too much as you can always go into the menu and quickly change it as need be. I can't wait to really but this camera to the test and shoot some awesome promo material with it.

Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  Is this the top of the line or is there one comparable for less. Can I put two 64 gig flash cards? Also will be using this for our church media. I utilize both final cut pro and a pc video editor is there going to be any drawbacks or information that I need to know for editing or production.
LAWRENCE D  The XF105 is not top of the line the XF305 is top of the line but the 105 is the top of the line of the 100 series. The XF series all use the same codec and they all work well with Final Cut Pro but I am not sure and PC Video Editor as I don't use that program. You can use two 64gb cards. The less expensive cameras like the XA10 will give you pro audio inputs but it is a different codec. It is a 24mbs AVCHD codec. If you don't need broadcast approval then that codec should be fine. The XF series also has a 4:2:2 color space vs the 4:2:0 of the XA10. Hope that helps Larry
Shopper  Is this the top of the line or is there one comparable for less. Can I put two 64 gig flash cards? Also will be using this for our church media. I utilize both final cut pro and a pc video editor is there going to be any drawbacks or information that I need to know for editing or production.
LAWRENCE D  The XF105 is not top of the line the XF305 is top of the line but the 105 is the top of the line of the 100 series. The XF series all use the same codec and they all work well with Final Cut Pro but I am not sure and PC Video Editor as I don't use that program. You can use two 64gb cards. The less expensive cameras like the XA10 will give you pro audio inputs but it is a different codec. It is a 24mbs AVCHD codec. If you don't need broadcast approval then that codec should be fine. The XF series also has a 4:2:2 color space vs the 4:2:0 of the XA10. Hope that helps Larry
Shopper  My question is about the Canon SF105 and the Canon XF105. Using these two devices, can I slave the timecode in either direction. In other words, can I set the Tascam to start recording when it sees the timecode from the Canon start to move (because I have started recording video recording)? And, can I also do it in the opposite direction. In other words, can I set the Canon as the slave and, if so, will the video start to record whenever the Canon sees the timecode start to move on the Tascasm? Thanks
DAN H  I can't speak for the Tascam unit but the XF-105 can do the timecode in both directions. So it can act as either a master or the slave. I have an XF-305 and an XF-105 and I use the 305 as the OUT and the 105 set as INPUT and they sync in a few seconds. Once they sync together you can unplug the BNC cable and continue with your shoot. However I have them set to FREE RUN which means the timecode does not stop when I stop recording. It runs all the time, which is the way you want it to be I believe. I have the timecode set to the time of day basically (24 hour clock) so the timecode is more useful.
