What is the purpose of the Automatic Voltage Regulation feature in the PR3000RTXL2UHVAN UPS?

The Automatic Voltage Regulation (AVR) feature in the PR3000RTXL2UHVAN UPS corrects minor power fluctuations without switching to battery power. This ensures a consistent power supply and helps extend the battery life of the UPS.

How does the Battery Equalization Technology in this UPS model enhance battery performance?

The Battery Equalization Technology in the PR3000RTXL2UHVAN UPS enhances battery performance by charging each battery in a multi-battery string to a similar voltage. This ensures balanced charging and discharging, leading to improved runtime and reduced battery replacement costs.

What does the pre-installed RMCARD205 in the PR3000RTXL2UHVAN UPS enable?

The pre-installed RMCARD205 in the PR3000RTXL2UHVAN UPS enables remote management and control. This allows for easy monitoring and maintenance of the UPS through a standard web browser or network management system.

What is the significance of the ENERGY STAR certification for the PR3000RTXL2UHVAN UPS?

The ENERGY STAR certification for the PR3000RTXL2UHVAN UPS indicates that the product meets stringent energy efficiency guidelines. This makes it an environmentally conscious choice for power protection.

Can the LCD panel on the PR3000RTXL2UHVAN UPS be adjusted for better visibility?

Yes, the innovative LCD panel on the PR3000RTXL2UHVAN UPS can be rotated 90 degrees and tilted to improve visibility. It displays information on 47 different settings, including UPS statistics, configuration options, and testing features.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

CyberPower PR3000RTXL2UHVAN Specifications

General

General

Jump to...
  • Active PFC Compatible

    Yes

  • Energy Saving

    GreenPower UPS Bypass Technology

  • Energy Star Certified

    Yes

  • UPS Topology

    Line-Interactive

Battery

Jump to...
  • Battery Quantity

    8

  • Battery Size

    12V/6Ah

  • Battery Type

    Sealed Lead-Acid

  • Extended Battery Module

    BP48VP2U03

  • Extended Battery Option

    Yes

  • Hot-Swappable

    Yes

  • Replacement Battery Cartridge

    RB1260X8

  • Replacement Battery Cartridge Quantity

    1

  • Runtime at Full Load

    3.6 minutes

  • Runtime at Half Load

    10.7 minutes

  • Typical Recharge Time

    3 hrs

  • User Replaceable

    Yes

  • Adjustable Voltage Range

    148 - 288 Vac

  • Circuit Breaker

    20A

  • Cord Length

    10' (3m)

  • Frequency Range

    47 - 63 Hz

  • Input Voltage

    200-240Vac

  • Input Voltage Range

    131 - 302 Vac

  • Plug Style

    Straight, Twist Lock

  • Plug Type

    NEMA L6-20P

  • Automatic Voltage Regulation

    Double boost, single buck

  • On Battery Frequency

    50/60Hz +/- 1%

  • On Battery Voltage

    200/208/220/230/240Vac +/- 5%

  • On Battery Waveform

    Sine wave

  • Outlet Type

    4 x NEMA 6-20R; 2 x NEMA L6-20R

  • Outlets - Battery & Surge Protected

    6

  • Outlets - Critical Load

    2

  • Outlets - Total

    6

  • Overload Protection

    Internal Circuitry Limiting, Circuit Breaker

  • Rated Power Factor

    1

  • Transfer Time

    4ms typical

  • VA

    3000

  • Watts

    3000

Surge Protection & Filtering

Jump to...
  • EMI/RFI Filtration

    Yes

  • Network Protection RJ45

    1-in, 1-out

  • Surge Suppression

    2430 J

Management & Communications

Jump to...
  • Audible Alarms

    Battery Mode, Low Battery, Overload, Overcharge, Overheat

  • Dry Contacts

    Yes

  • Emergency Power Off (EPO) Port

    Yes

  • HID Compliant USB Port

    Yes

  • LED Indicators

    Power on, Line mode, Battery mode, Fault, Night mode

  • Management Cable

    USB Cable, EPO Cable

  • Multifunction LCD Panel

    47 Settings (27 setup and control items + 20 status updates and log menus)

  • SNMP / HTTP Remote Monitoring

    Yes - pre-installed RMCARD205

  • Serial Port

    Yes

  • Software

    PowerPanel Business Edition

Environmental

Jump to...
  • Audible noise at 1m from surface of unit

    57.5 dBA

  • Maximum Operating Elevation

    10,000' (3,000m)

  • Maximum Storage Elevation

    50,000' (15,000m)

  • Online Thermal Dissipation

    120.1 BTU/hr

  • Operating Relative Humidity

    0 - 95% (non-condensing)

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Relative Humidity

    0 - 95% (non-condensing)

  • Storage Temperature

    5 Degree F to 113 Degree F (-15 Degree C to 45 Degree C)

Certifications

Jump to...
  • Environmental

    RoHS Compliant

  • Safety

    CE, UL1778, FCC Class A, VCCI

Physical

Jump to...
  • Color

    Black

  • Enclosure Construction

    Metal

  • Form Factor

    Rack/Tower

  • Rack Size

    2U

  • Dimensions (W x H x D)

    17.1 x 3.4 x 24.8" (43.43 x 8.64 x 62.99cm)

  • Weight

    87.5 lbs (39.69kg)

About CyberPower PR3000RTXL2UHVAN

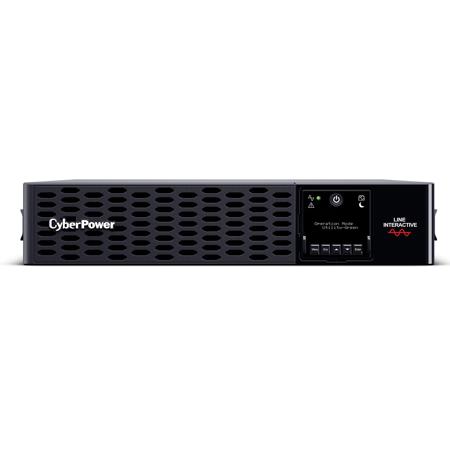

Become the guardian of your sensitive electronic equipment with the CyberPower PR3000RTXL2UHVAN Smart App Sinewave UPS, a robust and reliable power protection solution. This advanced 3000VA/3000W rack/tower convertible UPS is engineered with line-interactive topology, providing seamless surge protection and battery backup to keep your critical systems operational during power disturbances.

The PR3000RTXL2UHVAN stands out with its pure sine wave output, ensuring a consistent and clean power supply that is essential for preventing unexpected shutdowns of sensitive electronics. With its innovative Automatic Voltage Regulation (AVR), this UPS corrects minor power fluctuations without the need to switch to battery power, thus preserving battery life and enhancing overall efficiency.

Designed with user convenience in mind, the UPS features a toolless front panel for easy access, captive screws for swift battery panel access, and a color-coded rear panel to facilitate straightforward installations. The inclusion of the pre-installed RMCARD205 network management card enables remote management and control, allowing for easy monitoring and maintenance through a standard web browser or network management system.

The PR3000RTXL2UHVAN's intelligent LCD panel is a standout feature, capable of rotating 90 degrees and tilting to improve visibility. This multifunctional display provides detailed information on 47 different settings, including UPS statistics, configuration options, and testing features.

Battery management is a breeze with the UPS's Battery Equalization Technology, which enhances the performance and lifespan of multi-battery strings by ensuring each battery is charged to a similar voltage. This results in balanced charging and discharging, leading to improved runtime and reduced battery replacement costs.

For extended power outages, the UPS accepts the BP48VP2U03 Extended Battery Module (EBM), which utilizes Fast Charge Technology to rapidly restore full backup power. Additionally, the UPS's surge protection and data-line protection safeguard your equipment from damaging voltage spikes.

CyberPower's GreenPower UPS Bypass Design significantly reduces energy consumption and operating costs by allowing current to bypass the transformer and AVR during normal utility conditions. This not only saves energy but also minimizes heat generation.

The versatility of the PR3000RTXL2UHVAN is evident in its rack/tower design, offering flexibility for horizontal rack or vertical tower installation. Paired with the PowerPanel Business Edition Software, IT professionals gain valuable tools for monitoring and managing the UPS and backup power, ensuring a safe and orderly shutdown of connected devices when necessary.

As an ENERGY STAR certified UPS system, the PR3000RTXL2UHVAN meets stringent energy efficiency guidelines, making it an environmentally conscious choice for protecting your valuable equipment. Ideal for department servers, network devices, corporate servers, storage devices, VoIP and telecom installations, this UPS is the high-capacity, high-performance solution for your power protection needs.

CyberPower PR3000RTXL2UHVAN Features

  • Battery Backup
  • Line-Interactive Topology
  • Automatic Voltage Regulation (AVR)
  • Sine Wave Output
  • Battery Equalization Technology
  • Fast Charge Technology
  • Rotatable Multifunction LCD Panel
  • Toolless Battery Panel Access
  • Extended Battery Modules (EBMs)
  • Surge Protection
  • Data-Line Protection
  • GreenPower UPS Bypass Design
  • Rack/Tower Versatility
  • PowerPanel Business Edition Software
  • ENERGY STAR
  • Higher Capacity UPS for Longer Runtimes
  • Efficient Remote Management
  • Safe Shutdown
  • Programmable Outlet Control
  • Sine Wave Power

Key Features

  • Keep critical devices running with this 3000VA CyberPower UPS backup power supply.
  • Trust the pure sine wave output for sensitive equipment; ideal UPS power for servers.
  • Extend runtime with BP48VP2U03 external battery module, ensuring continuous power.
  • Pre-installed RMCARD205 enables remote monitoring & management of your UPS system.
  • Enjoy peace of mind with 2430 Joules surge protection, safeguarding against spikes.
  • Versatile form factor: use as a rackmount UPS or tower, fitting your space needs.

What's in the box:

  • PR3000RTXL2UHVAN 3000VA/3000W Smart App Sinewave Rack/Tower UPS
  • Faceplate
  • 2-Post Rack Mounting Hardware
  • 4-Post Rail Rack Mounting Hardware
  • Tower Mounting Hardware
  • Emergency Power Off Cable (Gray)
  • USB A+B Type Cable
  • User Manual
  • CyberPower 3 Year Limited Warranty
