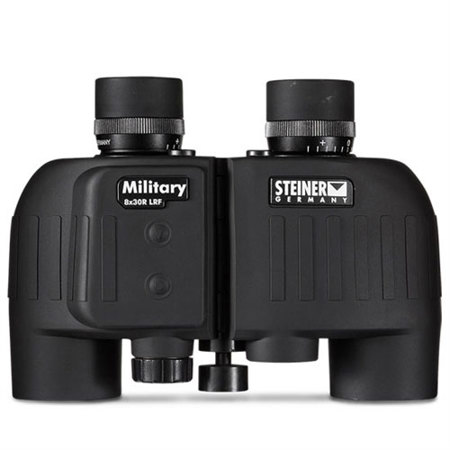

Steiner 8x30 M830r LRF Military Water Proof Porro Prism Binocular with 7.4 Degree Angle of View, Ranging Reticle, IR Laser Rangefinder, Black

SKU: STM830RLRF

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2022-02-21T19:00:00

Rated 5 out of 5

Rangefinding Binos, simple and accurate

Great rangefinder, can consistently hit targets at all ranges for long range shooting

Jmco

Steiner M830r LRF Specifications

  • Ranging Distance

    6,000m (6,562 yds)

  • Focus System

    Sports-Auto-Focus

  • Optics Systems

    Fully multi-coated

  • Close Focus

    66' (20m)

  • Entrance Pupil

    30mm

  • Exit Pupil Diameter

    3.75mm

  • Luminosity

    16.8

  • Twilight Factor

    15.4

  • Eyecups

    Cylindrical

  • Rubbering Armoring

    NBR Long Life

  • Waterproof

    Submersion to 16' (5m)

  • Interpupillary Distance

    56 - 74mm

  • Operating Temperature

    -4 Degree F to +140 Degree F (-20 Degree C to +60 Degree C)

  • Storage Temperature

    -40 Degree F to +176 Degree F (-40 Degree C to +80 Degree C)

  • Pressure Resistance

    0.5 bar

  • Resolving Power

    <= 11.25"

  • Dioptric Range

    +/- 5 dpt

  • Field of View @ 1,000m

    374' (114m)

  • Field of View Angular

    7.4 Degree

  • Eye Relief

    15.8mm

  • Special Features

    Mil Ranging Reticle, Military Specifications

  • Dimensions

    Approx: 4.2 x 6.7 x 2.2" (106 x 170 x 57mm)

  • Weight for Ocular Accessories

    Approx: Carrying Strap: 1.9 oz (55g)
    Objective Caps: 0.7 oz (19g)
    Eyepiece Cover: 0.5 oz (15g)

  • Weight

    18.7 oz (530g)

About Steiner M830r LRF

This compact, powerful laser rangefinder is universally suited for all military services and tactical units. It's the perfect combination of premium Steiner binoculars with a powerful class 1/eye safe laser for determining range to targets, plus a SUMR reticle for targeting redundancy in case of battery failure or out-of-range target. No other bino/rangefinder combo will deliver the image and ranging accuracy and reliability of these military veterans.

Perfect for mobile troops who travel light. Lenses and prisms are combined with state-of-the-art coatings to provide bright, crisp images at any range. Ranges can be set to meters or yards.

Features

Floating Prism System
uses flexible silicone lens mount to absorb severe shock, impact and abuse without damage.

Ergonomic Design
shifts the center of gravity into the palms for comfortable, long-time observation and round-the-shoulder shape won't hang up on hatches and doors in urgent situations.

N2 Injection system
seals 14-psi pressurized dry nitrogen into the optic, for fogproof clarity in any condition - from artic cold to desert heat.

Sports-Auto Focus System
lets you focus each eyepiece to your vision once, then keeps images razor sharp from 20 yards to infinity. No more chasing focus on moving objects.

NBR Rubber Armoring
is durable, slip-proof and noiseless to ensure secure, chassis-protecting grip in all conditions.

Makrolon housing
is durable polycarbonate with NBR Long Life rubber armoring, creating a lightweight, rugged chassis that withstands 11 Gs of impact. Impervious to harsh conditions for generations of trusted use.

Steiner M830r LRF Features

  • Floating Prism System
  • Ergonomic Design
  • N2 Injection system
  • Sports-Auto Focus System
  • NBR Rubber Armorin
  • Makrolon housing

Key Features

  • Floating Prism System
  • Ergonomic Design
  • N2 Injection system
  • Sports-Auto Focus System
  • NBR Rubber Armorin
  • Makrolon housing

What's in the box:

  • M830r LRF Military Binoculars (8x30)
  • Neck Strap
  • Rain Protection Cap
  • 2x Objective Lens Covers
  • Steiner Lifetime Limited Warranty
