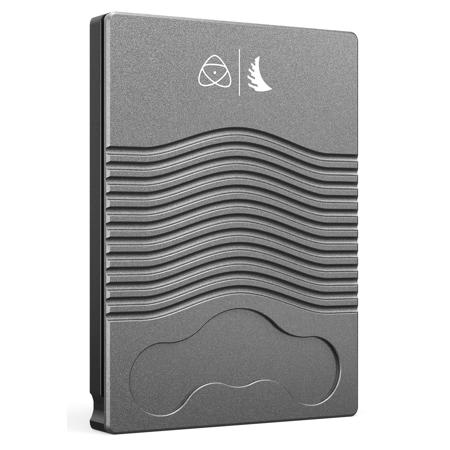

Angelbird AtomX 4K RAW 4TB Atomos SATA III Recording SSD

SKU: AB4KRAWA4000

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Angelbird AtomX 4K RAW Specifications

General

General

Jump to...
  • Capacity

    4 TB

  • Form Factor

    Atomos Master Caddy 4K RAW

Performance

Jump to...
  • Read Speed

    Sequential: 560 MB/s
    Sustained: 540 MB/s

  • Write Speed

    Sequential: 530 MB/s
    Sustained: 500 MB/s

  • Access Time

    Read: 65 micro second
    Write: 40 micro second

Reliability

Jump to...
  • MTBF

    2,400,000 hours

  • Data Reliability

    Built-in EDC / ECC function

  • Data Retention

    10 years at 25 Degree

  • Endurance

    4 TB: up to 12000 TBW

  • Certifications

    RoHS, CE and FCC compliant, REACH

Electrical

Jump to...
  • DC Input Voltage

    5 V +/- 10 %

  • Power Usage (Idle/Max)

    4 TB: 1.80 W / 5.4 W

Technical

Jump to...
  • Interface

    SATA 6 GB/s, 3 GB/s And 1.5 GB/s Supported
    SATA 3.0 Compliant

  • Over Provisioning

    9%

Environmental

Jump to...
  • Shock Resistance (Operating)

    1000 G/0.5ms

  • Vibration Resistance (Operating)

    2.17 Grms

  • Operating Temperature

    -4 Degree - 221 Degree F (-20 Degree C - 105 Degree C)

  • Storage Temperature

    -40 Degree - 185 Degree F (-40 Degree C - 85 Degree C)

  • Operating Humidity

    5 % To 95 % Non-Condensing

Compatibility

Jump to...
  • Compatibility

    Sumo, Shogun, Shogun Inferno, Shogun Flame, Shogun Studio, Ninja Flame, Ninja Assassin

Physical

Jump to...
  • Dimensions

    4.09 x 2.97 x 0.46" (104 x 75.5 x 11.7mm)

  • Weight

    4.9 oz (140g)

  • UPC Code

    812937022525

About Angelbird AtomX 4K RAW

Ready for anything your Atomos recorder can throw at it. Records high frame rates in ProRes RAW, CDNG RAW at 30p with ease, thanks to the unique feature set and its sustained write speed up to 520 MB/s.

As an Audio/Video Professional, You Know that when the action starts, there'S No Time for secondguessing - You and Your gear must be ready to go, and you either act with confidence or risk losing the shot. Features robust 7mm casing and high Compatibility with your cameras, recorders, and players.

Authorized Accessory
The Master Caddy 4K RAW is a custom designed SSD for Atomos products that integrates the Master Caddy rails into a rock solid aluminum body, quick grip release and unique Angelbird Stable Stream design for recording high data rate CDNG RAW and 4Kp60 video recordings.

Note:
For full compatibility please ensure that your Atomos recorder is upgraded to at least firmware V8.1.

Angelbird AtomX 4K RAW Features

  • Read Speed up to 560 MB/s
  • Write Speed up to 530 MB/s
  • Stable Stream
  • 4K60P / HD240
  • 4K30P / CDNG
  • Host Power Loss Protection
  • Developed for ATOMOS
  • Power Smoothing
  • Shock & Temperature Proof
  • X-Ray & Magnetic Proof
  • ESD & Overload Protection
  • Adaptive Thermal Protection
  • CNC-Worked Aluminum Heatsink
  • Rock-Solid Build

Key Features

  • Read Speed up to 560 MB/s
  • Write Speed up to 530 MB/s
  • Stable Stream
  • 4K60P / HD240
  • 4K30P / CDNG
  • Host Power Loss Protection

What's in the box:

  • Angelbird AtomX 4K RAW 4TB Atomos SATA III Recording SSD
  • Activation Code for Additional Free Software Licenses and Content
  • Angelbird 3 Year Limited Warranty
