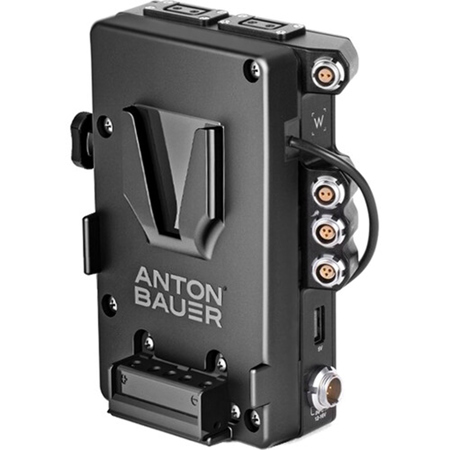

Anton Bauer D-Box with V-Mount Battery Bracket for Canon C700 Camera

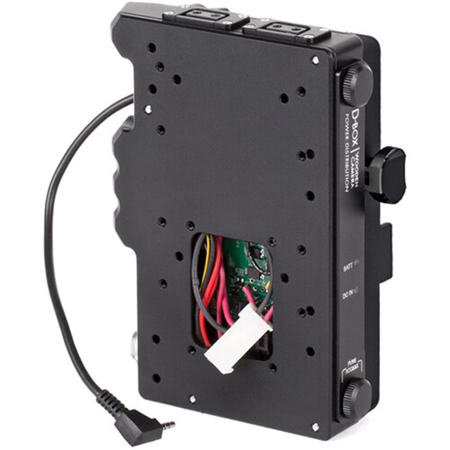

D-Box (Canon C700, V-Mount) adds power distribution, standardized remote start/stop, and hot swap capability to the Canon C700. The D-Box attaches directly to the back of the camera body using a special Molex connector eliminating external cabling. It also interfaces with the rear LANC port which is how the D-Box controls the camera's run/stop. Connectors on the D-Box are contoured in line with the Canon C700 body, streamlining port connections and cable management.

The module also provides two 3pin Fischer ports, allowing start/stop with any ARRI standard trigger device. The D-Box is equipped with a RED 6pin LEMO compatible DC Input allowing an AC power supply or external power plate to be connected to power the camera and accessories during a battery change. When both battery and DC input are utilized, the D-Box defaults to the DC input, leaving the battery fully charged.

D-Box Connections: 1. P-Tap - 12V Unregulated 2. USB - 5V Regulated 3. 2 pin LEMO compatible connector - 12V Unregulated - ARRI standard wiring 4. 2 pin LEMO compatible connector - 12V Unregulated - ARRI standard wiring 5. 3 pin Fischer - 24V Regulated - Regulator built in to convert battery voltage to 24V - Maximum 2A continuous (3A surge) shared between the two 3pin Fischers - ARRI standard start/stop capabilities 6. 3 pin Fischer - 24V Regulated - Regulator built in to convert battery voltage to 24V - Maximum 2A continuous (3A surge) shared between the two 3pin Fischers - ARRI standard start/stop capabilities 7. DC Input - 12-16V - RED 6pin LEMO compatible DC Input XLR - Priority is given to DC Input to preserve battery charge when both sources connected.
