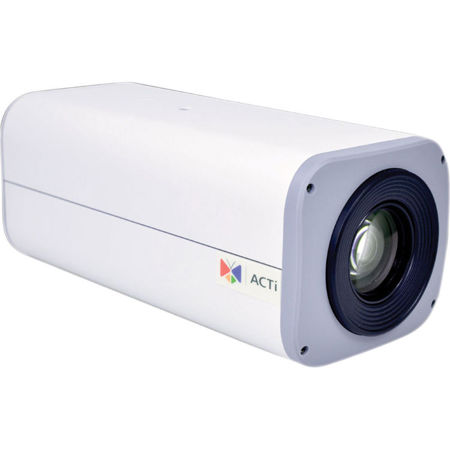

ACTi B27 3MP Day & Night Box Camera with f5.2-62.4mm / F1.8-3.0 Lens
See all ACTi items

ACTi B27 3MP Day & Night Box Camera with f5.2-62.4mm / F1.8-3.0 Lens, 12x Optical Zoom

SKU: ACTB27

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi B27 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3"

  • Effective Pixels

    2048 (H) x 1536 (V) (3.15MP)

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F1.8 (30 IRE, 2400 deg. K); B/W: 0.05 lux at F1.8 (30 IRE, 2400 deg. K)

  • Color to B/W Switch

    ISP based switch; Configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    No

  • Electronic Shutter

    1/5 - 1/2,000 sec (manual mode); 1/5 - 1/10,000 sec (auto mode)

  • Horizontal Resolution

    1450 TVL

  • S/N Ratio

    52dB

  • Focal Length / Aperture

    Zoom, f4.9 - 49mm / F1.8 - 3.0

  • Zoom Ratio / Speed

    12x optical / 2.3 sec (wide to tele)

  • Zoom Application

    Camera Installation; Auto Zoom by Event; Manual Operation

  • Iris

    DC-iris

  • Focus

    Auto focus

  • Lens Mount

    Board mount

  • Horizontal Viewing Angle

    50.2deg to 4.69 deg.

  • Video Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Bit Rate

    28 Kbps - 6 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Max. Frame Rate vs. Resolution

    20 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240

  • Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Privacy Mask

    4 configurable regions for each of 17 preset points

  • Image Enhancement

    Superior WDR (110 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Text Overlay

    User defined text on video

  • Image Orientation

    Image flip, mirror and rotation

  • Audio Compression

    8kHz, Mono, PCM, 16 bit encoding; G. 711

  • Audio-In

    Terminal block

  • Audio-Out

    Terminal block

  • Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Save video or snapshot to FTP server; Activate external device through digital output

  • Digital Input

    1, Terminal Block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Serial Port

    1, RS-485/RS-422, Terminal block

  • Digital Output

    1, Terminal Block

  • Power Source / Consumption

    PoE Class 3 (IEEE802.3af) / 5.28W; DC 12V (adapter not included) / 4.44W

  • Environmental Casing

    Optional housing (IP 66 rated)

  • Mount Type

    Wall, Ceiling, Corner, Pole

  • Starting Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector and power adapter)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available, ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed another browsers with VLC installed (partial functionality)

  • VMS-based Analytics

    Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (require PC-based or standalone IVS or ALPR Server)

  • Dimensions (W x H x D)

    81 x 71 x 176mm / 3.19 x 2.80 x 6.93"

  • Weight

    634g / 22.36oz

About ACTi B27

It is the B27 3MP Day & Night Box Camera, a high-performance surveillance solution designed to deliver superior image quality in all lighting conditions. This advanced camera features a 3-megapixel sensor that captures 1080p high-definition video, ensuring detailed and clear footage day or night.

The camera's powerful 12x optical zoom lens, with a focal length range of f5.2 to 62.4mm and an aperture range of F1.8 to 3.0, allows for precise focus and wide coverage. The DC Iris and Auto Focus functionalities further enhance the camera's performance by automatically adjusting to changing light conditions and maintaining sharp focus on moving objects.

One of the standout features of the B27 3MP Day & Night Box Camera is its Superior Wide Dynamic Range (WDR) of 110 dB. This feature balances the lighting in scenes with high contrast, ensuring that both bright and dark areas are visible and detailed.

The camera supports a high frame rate of 30 frames per second at a resolution of 1920 x 1080, providing smooth, real-time video playback. It also supports H.264 and MJPEG compression formats, which help to maintain video quality while reducing file size and bandwidth usage.

The B27 3MP Day & Night Box Camera is also equipped with Power over Ethernet (PoE) technology, allowing for simplified installation and reduced cabling. This feature makes it an ideal choice for a wide range of surveillance applications, from home security to commercial monitoring.

In summary, the B27 3MP Day & Night Box Camera combines high-resolution imaging, advanced lens technology, superior WDR, and convenient PoE functionality to deliver a versatile and high-quality surveillance solution.

ACTi B27 Features

  • High-performance 3MP Day & Night Box Camera with 1080p resolution for clear, detailed footage
  • Powerful 12x optical zoom lens with f5.2 - 62.4mm / F1.8 - 3.0, DC Iris, Auto Focus for wide coverage and sharp focus
  • Superior Wide Dynamic Range (WDR) of 110 dB for balanced lighting in high contrast scenes
  • High frame rate of 30 fps at 1920 x 1080 resolution for smooth, real-time video playback
  • Supports H.264 and MJPEG compression formats for quality video with reduced file size
  • Equipped with Power over Ethernet (PoE) technology for simplified installation and reduced cabling

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture clear details with this security camera's 3MP resolution, ensuring high-quality surveillance.
  • See clearly at night; this camera's superior night vision provides excellent low-light performance.
  • Advanced motion detection alerts you instantly to any unusual activity, enhancing your security system.
  • Enjoy flexible monitoring with the 12x optical zoom, perfect for detailed close-ups when you need them.
  • Access your camera remotely from anywhere, keeping your property secure with real-time viewing.
  • Quick, easy setup gets your surveillance camera running fast, so you can protect your property sooner.

What's in the box:

  • ACTi B27 3MP Day & Night Box Camera with f5.2-62.4mm / F1.8-3.0 Lens
  • Terminal Block (for Power)
  • Terminal Block (for Audio and DI/DO)
  • Terminal Block (for Serial Port)
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
