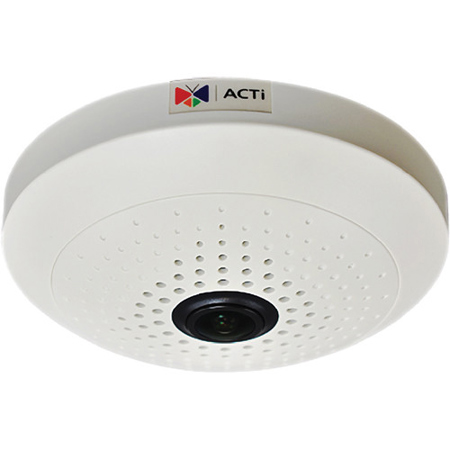

ACTi B55 Day & Night Indoor Fisheye Dome Camera, 3648x2736, 5MP, 30fps, H.264, MJPEG, PoE

SKU: ACTB55

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ACTi B55 Specifications

  • Device Type

    Indoor Fisheye Dome

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/2.3''

  • Effective Pixels

    3856 (H) x 2764 (V) (10.66 MP)

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F2.0 (30 IRE, 2400 deg. K); B/W: 0.05 lux at F2.0 (30 IRE, 2400 deg. K)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    No

  • Electronic Shutter

    1/5 approx. 1/2000 sec (manual mode); 1/5 approx. 1/10000 sec (auto mode)

  • TV Lines

    1550

  • S/N Ratio

    52 dB

  • Focal Length / Aperture

    Fixed (Fisheye lens), f1.37mm / F2.0

  • Iris

    Fixed iris

  • Focus

    Fixed focus

  • Lens Mount

    Board mount

  • Horizontal Viewing Angle

    180 deg. (overview area), 109.8 deg. (high detail area)

  • Video: Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Max. Frame Rate vs. Resolution

    7 fps at 3648 x 2736; 7 fps at 2592 x 1944; 7 fps at 2048 x 1536; 7 fps at 1440 x 1080;
    7 fps at 1280 x 960; 7 fps at 800 x 600; 7 fps at 640 x 480; 7 fps at 320 x 240

  • View Mode

    Fisheye view, 180 deg. / 360 deg. deg. Panorama, ePTZ

  • Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Bit Rate

    28 Kbps - 6 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Image Enhancement

    Basic WDR (70 dB); White balance: automatic, hold and manual; Brightness;
    Contrast; Sharpness (auto); Automatic gain control; Digital noise reduction; Flickerless

  • Privacy Mask

    4 configurable regions

  • Text Overlay

    User defined text on video

  • Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio-In

    Cable with 3.5mm phone jack

  • Audio-Out

    Cable with 3.5mm phone jack

  • Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control Center; Change camera settings; Command other devices; E-mail notification with snapshots;
    Save video or snapshot to local storage; Upload video, Snapshot to FTP server; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE 802.3af) / 4W
    DC 12V (adapter not included) / 3.4W

  • Mount Type

    Surface, Pendant, Wall, Corner, Pole, Flush, Gang box

  • Starting Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Operating Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Operating Humidity

    10% to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK09, UL (for optional PoE injector and power adapter)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    5.91 x 1.88" / 15.01 x 4.78cm

  • Weight

    0.75lbs / 0.34kg

About ACTi B55

Take your security surveillance to the next level with the B55 Day & Night Indoor Fisheye Dome Camera. This advanced camera is equipped with a 10-megapixel sensor, ensuring that every image captured is of the highest clarity and detail. The sophisticated hemispheric fisheye lens, featuring an f1.37mm / F2.0 aperture, provides a comprehensive 360-degree view, making it an ideal solution for complete indoor surveillance without blind spots.

Experience uninterrupted monitoring with the camera's day and night functionality, designed to deliver crisp and clear images in any lighting condition. The innovative Basic Wide Dynamic Range (WDR) of 70 dB allows the camera to balance the contrast of light and shadow, ensuring that you can discern details even in challenging light scenarios.

With a high-tech capability to record at 7 frames per second at a resolution of 3648 x 2736, this state-of-the-art camera captures every moment with precision. The 5MP resolution ensures that the finer details are not missed, which is crucial for identifying individuals or objects in a security context.

The camera supports both H.264 and MJPEG compression formats, optimizing storage and bandwidth usage without compromising video quality. This feature is particularly beneficial for users looking to maximize their storage capacity while maintaining high-resolution video footage.

Designed for indoor use, the B55 Fisheye Dome Camera is also PoE-enabled, allowing for a simplified installation process with a single cable for both power and data transmission. This innovative feature not only reduces the need for additional wiring but also ensures that your camera remains operational even during power outages when used with a UPS on the network.

In summary, the B55 Day & Night Indoor Fisheye Dome Camera is a sophisticated and high-performance security solution for those who require comprehensive coverage and detailed imagery, both during the day and at night. Its innovative features and ease of installation make it a top choice for securing your premises.

ACTi B55 Features

  • Advanced 10-megapixel Day & Night Indoor Fisheye Dome Camera for round-the-clock surveillance
  • Sophisticated hemispheric fisheye lens with f1.37mm / F2.0 aperture for a comprehensive 360-degree view
  • Basic Wide Dynamic Range (WDR) of 70 dB for balanced light and shadow contrast
  • High-resolution recording at 7 frames per second at 3648 x 2736 for capturing detailed images
  • Supports H.264 and MJPEG compression formats for optimized storage and bandwidth usage
  • PoE-enabled for simplified installation and continuous operation during power outages

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture every detail with this 5MP security camera, providing crystal-clear surveillance footage.
  • Enjoy a wide, 180° fisheye view, minimizing blind spots for comprehensive home security coverage.
  • Rely on clear night vision, ensuring your property is monitored even in low-light conditions.
  • Set up is a breeze with PoE, so you can quickly install your security camera with minimal effort.
  • Use the mobile app for remote viewing, giving you peace of mind wherever you are, 24/7.
  • Store footage locally with MicroSD, or use cloud storage for secure, off-site video backup.

What's in the box:

  • ACTi B55 Day & Night Indoor Fisheye Dome Camera
  • Screw Kit
  • Drill Template Sticker
  • Terminal Block for Power
  • DI / DO Terminal Block
  • ACTi 3 Year Limited Warranty
