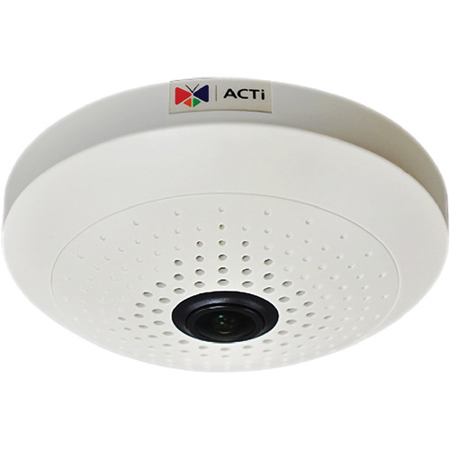

ACTi B56 Day & Night Indoor Fisheye Dome Camera
ACTi B56 Video #1
ACTi B56: Picture 1 thumbnail
See all ACTi items

ACTi B56 Day & Night Indoor Fisheye Dome Camera, 2048x1536, 5MP, 30fps, H.264, MJPEG, PoE

SKU: ACTB56

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi B56 Specifications

  • Device Type

    Indoor Fisheye Dome

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3''

  • Effective Pixels

    2048 (H) x 1536 (V) (3.15 MP)

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F2.0 (30 IRE, 2400 deg. K); B/W: 0.05 lux at F2.0 (30 IRE, 2400 deg. K)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    No

  • Electronic Shutter

    1/5 approx. 1/2000 sec (manual mode); 1/5 approx. 1/10000 sec (auto mode)

  • TV Lines

    1450

  • S/N Ratio

    52 dB

  • Focal Length / Aperture

    Fixed (Fisheye lens), f1.19mm / F2.0

  • Iris

    Fixed iris

  • Focus

    Fixed focus

  • Lens Mount

    Board mount

  • Horizontal Viewing Angle

    180 deg. (overview area), 109.8 deg. (high detail area)

  • Video: Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Max. Frame Rate vs. Resolution

    20 fps at 2048 x 1536; 20 fps at 1440 x 1080; 20 fps at 1280 x 960; 20 fps at 800 x 600; 15 fps at 640 x 480; 15 fps at 320 x 240

  • View Mode

    Fisheye view, 180 deg. / 360 deg. deg. Panorama, ePTZ

  • Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Bit Rate

    28 Kbps - 6 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Image Enhancement

    Superior WDR (110 dB); White balance: automatic, hold and manual; Brightness;
    Contrast; Sharpness (auto); Automatic gain control; Digital noise reduction; Flickerless

  • Privacy Mask

    4 configurable regions

  • Text Overlay

    User defined text on video

  • Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio-In

    Cable with 3.5mm phone jack

  • Audio-Out

    Cable with 3.5mm phone jack

  • Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control Center; Change camera settings; Command other devices; E-mail notification with snapshots;
    Save video or snapshot to local storage; Upload video, Snapshot to FTP server; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE 802.3af) / 4.5W
    DC 12V (adapter not included) / 3.5W

  • Mount Type

    Surface, Pendant, Wall, Corner, Pole, Flush, Gang box

  • Starting Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Operating Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Operating Humidity

    10% to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK09, UL (for optional PoE injector and power adapter)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    5.91 x 1.88" / 15.01 x 4.78cm

  • Weight

    0.75lbs / 0.34kg

About ACTi B56

From advanced surveillance technology comes the B56 Day & Night Indoor Fisheye Dome Camera, a high-tech security solution designed for comprehensive indoor monitoring. This state-of-the-art camera boasts a superior 5-megapixel resolution, delivering crystal-clear images at a high frame rate of 30 frames per second.

The innovative fisheye lens with an aperture of f1.19mm / F2.0 provides a wide, hemispheric view, ensuring no corner of your space goes unnoticed. With its day and night functionality, this sophisticated camera captures high-quality images regardless of lighting conditions, making it an ideal choice for round-the-clock surveillance.

The B56 camera also features an impressive Wide Dynamic Range (WDR) of 110 dB, which balances light and dark areas in an image to provide the best possible picture quality.

Equipped with H.264 and MJPEG compression technologies, this camera ensures efficient storage and transmission of video data over your network. Furthermore, the camera's Power over Ethernet (PoE) feature simplifies installation by allowing network connection and power supply through a single Ethernet cable.

In summary, the B56 Day & Night Indoor Fisheye Dome Camera is a sophisticated, high-resolution security solution, designed to provide comprehensive, 24/7 indoor surveillance with superior image quality.

ACTi B56 Features

  • High-tech 5MP resolution for crystal-clear surveillance images
  • Advanced day & night functionality for 24/7 indoor monitoring
  • Hemispheric fisheye lens with f1.19mm / F2.0 aperture for wide coverage
  • Superior Wide Dynamic Range (WDR) of 110 dB for optimal image quality
  • Efficient H.264 and MJPEG compression technologies for smooth data transmission
  • Convenient Power over Ethernet (PoE) feature for easy installation and power supply

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture crystal-clear surveillance video with this 5MP security camera, day or night.
  • Enjoy a super-wide 180° view with the fisheye lens, perfect for complete room coverage.
  • Get motion detection alerts directly to your device, enhancing your home security system.
  • Use the camera's PoE for easy setup, transmitting power and data over a single cable.
  • Remotely access the camera feed from anywhere using your smartphone or computer.
  • Record footage locally to a microSD card for reliable video storage and playback.

What's in the box:

  • ACTi B56 Day & Night Indoor Fisheye Dome Camera
  • Screw Kit
  • Drill Template Sticker
  • Terminal Block for Power
  • DI / DO Terminal Block
  • ACTi 3 Year Limited Warranty
