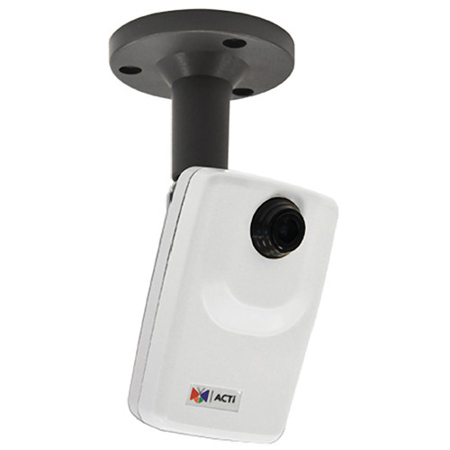

ACTi D12 Indoor IP Cube Camera with Fixed Lens, 3MP, 1920x1080, 30fps, H.264 HP, MJPEG, PoE

SKU: ACTD12

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ACTi D12 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3.2"

  • Day / Night

    No

  • Superior Low Light Sensitivity

    No

  • Minimum Illumination

    Color: 0.1 lux at F2.0 (30 IRE, 2400 deg. K)

  • Mechanical IR Cut Filter

    No

  • IR Sensitivity Range

    No

  • Electronic Shutter

    Manual Mode: 1/5 deg. to 1/2000sec; Auto Mode: 1/5 deg. To 1/10000sec

  • Lens: Focal Length / Aperture

    Fixed focal, f3.6mm / F2.0

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Fixed focus

  • Lens: Mount Type

    Board mount

  • Lens: Horizontal Viewing Angle

    70.8 deg.

  • Video: Compression

    H.264 HP, MJPEG

  • Video: Max. Frame Rate vs. Resolution

    15fps at 2048 x 1536; 30fps at 1920 x 1080; 30fps at 1280 x 720; 30fps at 640 x 480; 15fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps to 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions)

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, Snapshot to FTP server

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 3.7W

  • Mount Type

    Wall, Ceiling

  • Starting Temperature

    -10 to 45 deg. C / 14 to 113 deg. F

  • Operating Temperature

    -10 to 45 deg. C / 14 to 113 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed; and other browsers with VLC installed (partial functionality)

  • Dimensions (W x H x D)

    2.62 x 4.09 x 1.53" / 66.55 x 103.89 x 38.86mm

  • Weight

    0.31lbs / 0.14kg

About ACTi D12

What sets the D12 Indoor IP Cube Camera apart is its sleek design and advanced technology, making it a modern and stylish addition to any indoor surveillance system. Boasting a high-tech 3MP resolution and a 1920x1080 full HD video clarity at a smooth 30 frames per second, this camera captures every detail with precision.

The camera's wide-angle fixed lens, with a focal length of f3.6mm and an aperture of F2.0, ensures a broad field of view, making it an ideal choice for comprehensive coverage of your indoor space. The fixed lens design simplifies installation and ensures consistent performance without the need for adjustments.

Dual streaming capabilities are at the heart of this camera's functionality, supporting both H.264 High Profile and MJPEG compression formats. This flexibility allows for efficient bandwidth and storage management without compromising on image quality. The camera delivers exceptional video quality at various resolutions, including 720p (1280 x 720) and VGA (640 x 480), ensuring versatility for different monitoring needs.

The D12 Indoor IP Cube Camera is equipped with built-in hardware motion detection, eliminating the need for external sensors. Users can customize up to three video motion detection zones, adjusting object size and sensitivity for accurate and reliable alerts. This hardware-based detection provides a quicker response and heightened sensitivity compared to software-based alternatives.

Included with the camera is a powerful surveillance software package, enhancing the camera's capabilities without additional cost. This software transforms your existing PC into a digital video recorder, complete with scheduled and manual recording options to capture every critical moment. The software's reliable motion detection and instant warning system facilitate a swift response to any incident, while the intuitive search and playback functions make video retrieval straightforward and efficient.

For those seeking integration with third-party applications, the D12 Indoor IP Cube Camera offers comprehensive Software Development Kit (SDK) support. Software developers can leverage the camera's Streaming Library or ActiveX control to incorporate the camera into custom solutions with minimal effort.

In summary, the D12 Indoor IP Cube Camera is a superior choice for those requiring a dependable, high-resolution indoor monitoring solution. Its ease of use, coupled with advanced features and free surveillance software, provides a complete package for home monitoring and professional surveillance applications.

ACTi D12 Features

  • High-tech 3MP resolution, capturing 1920x1080 full HD video at 30 frames per second
  • Wide-angle fixed lens with a focal length of f3.6mm and an aperture of F2.0 for broad coverage
  • Dual streaming with H.264 High Profile and MJPEG compression formats for efficient bandwidth use
  • Built-in hardware motion detection with customizable sensitivity and object size settings
  • Free bundled surveillance software for scheduled and manual recording, with intuitive search and playback features
  • Comprehensive Software Development Kit (SDK) support for integration with third-party applications

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture clear 3MP surveillance footage with this indoor security camera's high-resolution imaging.
  • Enjoy smooth, real-time monitoring with 30fps video, ensuring every detail is captured by the camera.
  • Use the H.264 compression to save storage space without sacrificing video quality on your security system.
  • Remotely access your camera's live feed via Ethernet, offering peace of mind wherever you are.
  • Get alerts with video motion detection, instantly notifying you of any unusual activity in monitored areas.
  • Quickly set up this compact cube camera for discreet surveillance in homes or small businesses.

What's in the box:

  • ACTi D12 Indoor IP Cube Camera
  • Bracket
  • Screw Kit
  • Quick Installation Guide
  • ACTi 2 Year Limited Warranty
