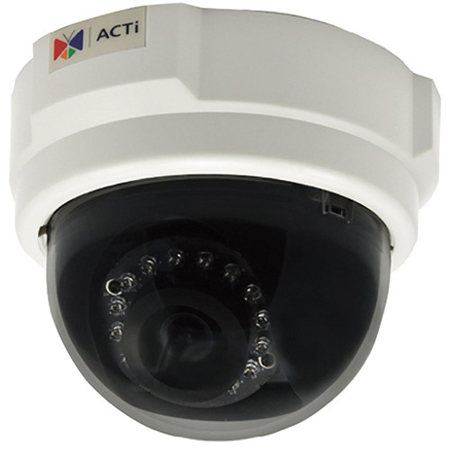

ACTi D55 3MP Day/Night Indoor IP Dome Camera with Fixed Lens
See all ACTi items

ACTi D55 3MP Day/Night Indoor IP Dome Camera with Fixed Lens

SKU: ACTD55

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi D55 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3.2"

  • Day / Night

    Yes

  • Superior Low Light Sensitivity

    No

  • Minimum Illumination

    Color: 0.1 lux at F1.8 (30 IRE, 2400 deg. K); B/W: 0 lux (IR LED on)

  • Color to B/W Switch

    ISP based switch, Configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 to 1100nm

  • IR LED

    Adaptive IR LED (IR Exposure Compensation) x 10 (850nm)

  • IR Working Distance

    20m (0 lux, 30 IRE, Gain 255, Auto shutter mode)

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000sec; Auto Mode: 1/5 to 1/10000sec

  • Lens: Focal Length / Aperture

    Fixed focal, f3.6mm / F1.8

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Fixed focus

  • Lens: Mount

    Board mount

  • Lens: Horizontal Viewing Angle

    72.0 deg.

  • Viewing Angle Adjustment

    Pan: 0 - 330 deg.; Tilt: 20 - 90 deg.

  • Video: Compression

    H.264 HP, MJPEG

  • Video: Max. Frame Rate vs. Resolution

    15fps at 2048 x 1536; 30fps at 1920 x 1080; 30fps at 1280 x 720; 30fps at 640 x 480; 15fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps to 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions)

  • Alarm Response

    Notify control Center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, Snapshot to FTP server

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 6.02W (IR on)

  • Mount Type

    Surface, Pendant, Wall, Corner, Pole, Flush, Gang box

  • Starting Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed; and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    5.04 x 3.9" / 128.02 x 99.06mm

  • Weight

    0.64lbs / 0.29kg

  • UPC Code

    888034001268

About ACTi D55

How can you enhance your indoor surveillance with cutting-edge technology The D55 Day/Night Indoor IP Dome Camera is your sophisticated solution, offering a high-tech blend of advanced features for crystal-clear monitoring around the clock. Boasting a high-resolution 3-megapixel sensor paired with 1080p video clarity, this state-of-the-art camera captures every detail with precision.

Experience the innovative Adaptive IR LED technology that ensures optimal illumination in low-light conditions, enabling the camera to deliver flawless images even in complete darkness. The fixed lens, with a focal length of 3.6mm and a bright aperture of F1.8, provides a wide field of view to cover extensive areas without compromising on image quality.

With a smooth frame rate of 30 fps at a full HD resolution of 1920 x 1080, you can expect seamless video playback and real-time viewing, capturing every moment with minimal motion blur. The camera supports both H.264 High Profile and MJPEG compression formats, allowing for efficient video compression without sacrificing quality.

Designed for ease of installation and management, the D55 Dome Camera comes with Power over Ethernet (PoE) capabilities, eliminating the need for additional power supplies and reducing cable clutter. This feature simplifies the setup process, making it an ideal choice for businesses and homeowners seeking a reliable and easy-to-manage indoor security solution.

Whether you're monitoring a retail space, office, or your home, the D55 Day/Night Indoor IP Dome Camera with its sophisticated design and innovative features stands out as a superior choice for those who demand excellence in their security systems.

ACTi D55 Features

  • High-resolution 3MP sensor for crystal-clear 1080p video clarity
  • Innovative Adaptive IR LED technology for optimal low-light performance
  • Fixed lens with a 3.6mm focal length and F1.8 aperture for wide coverage
  • Smooth 30fps frame rate at 1920 x 1080 resolution for seamless video playback
  • Supports H.264 High Profile and MJPEG for efficient video compression
  • Built-in Power over Ethernet (PoE) for easy installation and management

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture clear details with this 3MP security camera, perfect for indoor surveillance.
  • Enjoy enhanced night vision with built-in IR LEDs, ensuring 24/7 home security.
  • Set up is a breeze! This IP dome camera integrates easily with your existing network.
  • Get real-time alerts with motion detection, keeping you informed of any activity.
  • Access your camera remotely via your smartphone for peace of mind wherever you are.
  • This indoor dome camera offers a wide viewing angle, minimizing blind spots in your space.

What's in the box:

  • ACTi D55 Indoor Dome Camera
  • Mounting Screw Kit
  • Drill Template
  • Lens Focus Tuner
  • Fixing Bracket and Screws
  • Quick Installation Guide
  • ACTi 2 Year Limited Warranty
