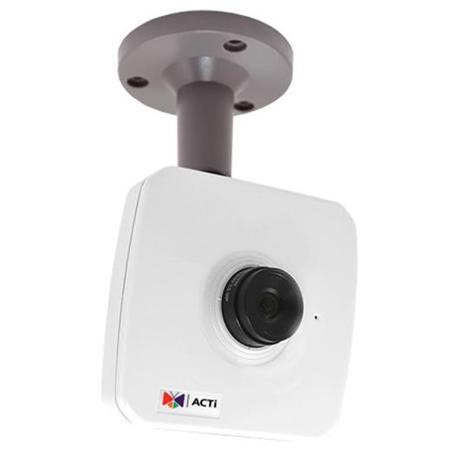

ACTi E12A 3MP Indoor IP Cube Camera with Fixed Lens
See all ACTi items

ACTi E12A 3MP Indoor IP Cube Camera with Fixed Lens

SKU: ACTE12A

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi E12A Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3.2"

  • Effective Pixels

    2592 (H) x 1944 (V) (5.04 MP)

  • Day / Night

    No

  • Superior Low Light Sensitivity

    No

  • Minimum Illumination

    Color: 0.1 lux at F2.0 (30 IRE, 2400 deg. K)

  • Mechanical IR Cut Filter

    No

  • IR Sensitivity Range

    No

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000sec
    Auto Mode: 1/5 to 1/10000sec

  • TV Lines

    1350

  • S/N Ratio

    52dB

  • Lens: Focal Length / Aperture

    Fixed focal, f2.8mm / F2.0

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Manual focus

  • Lens: Mount

    CS mount (interchangeable lens)

  • Lens: Horizontal Viewing Angle

    92 deg.

  • Video: Compression

    H.264 HP, MJPEG

  • Video: Max. Frame Rate vs. Resolution

    15fps at 2048 x 1536
    30fps at 1920 x 1080
    30fps at 1280 x 720
    30fps at 800 x 600
    30fps at 640 x 480
    15fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps - 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (74dB)
    White balance: automatic, hold and manual
    Brightness
    Contrast
    Sharpness (auto)
    Auto gain control
    Digital noise reduction
    Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding; G.711

  • Audio: In

    Built-in Microphone

  • Audio: Out

    3.5mm Phone Jack

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering
    HTTPs encryption
    Password protected user levels
    Anonymous login
    IEEE802.1X network access control

  • Alarm: Trigger

    Video motion detection (3 regions)

  • Alarm: Response

    Notify control center
    Change camera settings
    Command other devices
    E-mail notification with snapshots
    Save video or snapshot to local storage
    Upload video or snapshot to FTP server

  • Interface: Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 3.456 W+D71

  • Mount Type

    Wall, Ceiling

  • Starting Temperature

    -10 to 45 deg. C / 14 to 113 deg. F

  • Operating Temperature

    -10 to 45 deg. C / 14 to 113 deg. F

  • Operating Humidity

    10% to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)

  • Integration: Unified

    Solution Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available
    ONVIF compliant

  • Integration: Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)

  • Dimensions (W x H x D)

    3.8 x 3.8 x 1.8" / 9.65 x 9.65 x 4.57cm

  • Weight

    0.53lbs / 0.24kg

About ACTi E12A

After extensive research and development, Adorama presents the E12A Indoor IP Cube Camera, a compact and high-tech surveillance solution. This sleek and stylish camera is equipped with a 3 Megapixel sensor, delivering 1080p resolution for crystal clear, detailed images. The fixed lens with f2.8mm / F2.0 ensures sharp focus, capturing every detail with precision.

One of the standout features of this user-friendly camera is its Basic Wide Dynamic Range (WDR) of 74 dB. This advanced feature allows the camera to adjust its exposure automatically, capturing both bright and dark areas in a scene with equal clarity. This makes it an ideal choice for monitoring spaces with varying lighting conditions.

The E12A Indoor IP Cube Camera also boasts a high frame rate of 30 fps at a resolution of 1920 x 1080, ensuring smooth video playback. Its wide-angle lens provides extensive coverage, making it a perfect choice for indoor surveillance.

In terms of connectivity, this camera supports H.264 HP and MJPEG codecs, ensuring efficient data compression without compromising on image quality. The Power over Ethernet (PoE) feature simplifies installation by allowing network cables to carry electrical power.

In summary, the E12A Indoor IP Cube Camera combines superior image quality, advanced features, and user-friendly design, making it a top choice for home monitoring and surveillance.

ACTi E12A Features

  • High-tech E12A Indoor IP Cube Camera with 3 Megapixel, 1080p resolution for superior image clarity
  • Fixed lens with f2.8mm / F2.0 providing sharp focus and detailed capture
  • Basic Wide Dynamic Range (WDR) of 74 dB for versatile lighting adaptability
  • Smooth video playback with 30 fps at 1920 x 1080 resolution
  • Supports H.264 HP and MJPEG codecs for efficient data compression
  • Power over Ethernet (PoE) feature for simplified installation and operation

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture clear 3MP video with this ACTi security camera, perfect for indoor monitoring.
  • Enjoy a wide 92° viewing angle, ensuring comprehensive coverage with this fixed lens camera.
  • Use the motion detection feature to receive alerts & keep your home secure with this camera.
  • Access your camera remotely via mobile app for easy monitoring and peace of mind on the go.
  • Benefit from Basic WDR for balanced images in varying light conditions with this IP camera.
  • Store footage locally using the MicroSD card slot for convenient video storage (card not included).

What's in the box:

  • ACTi E12A Indoor IP Cube Camera with Basic WDR & Fixed Lens
  • Bracket
  • ACTi 3 Year Limited Warranty
