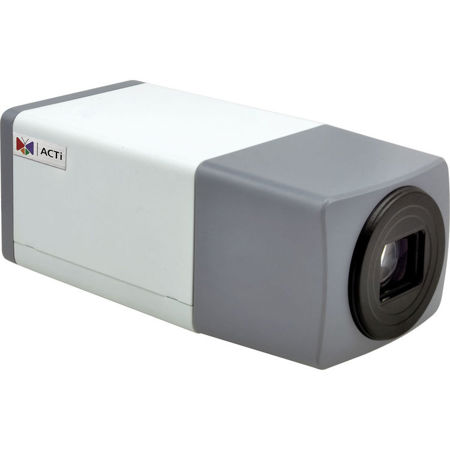

ACTi E213 5MP Day & Night Box Camera with f4.9-49mm / F2.8-3.5 Lens, 10x Optical Zoom

SKU: ACTE213

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ACTi E213 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3.2"

  • Effective Pixels

    2592 (H) x 1944 (V) (5.04MP)

  • Horizontal Resolution

    1350 TVL

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F2.8 (30 IRE, 2400 deg. K); B/W: 0.05 lux at F2.8 (30 IRE, 2400 deg. K)

  • Color to B/W Switch

    ISP based switch; Configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    No

  • Electronic Shutter

    1/5 - 1/2,000 sec (manual mode); 1/5 - 1/10,000 sec (auto mode)

  • S/N Ratio

    52 dB

  • Focal Length / Aperture

    Zoom, f4.9 - 49mm / F2.8 - 3.5

  • Zoom Ratio / Speed

    10x optical / 3.3 sec (wide to tele)

  • Zoom Application

    Camera installation

  • Iris

    Adaptive iris

  • Focus

    Auto focus

  • Lens Mount

    Board mount

  • Horizontal Viewing Angle

    51.6 deg. - 6 deg.

  • Video Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Max. Frame Rate vs. Resolution

    15 fps at 2592 x 1944; 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240

  • Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Bit Rate

    28 Kbps - 6 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Image Enhancement

    Basic WDR (74 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless

  • Privacy Masks

    4 regions

  • Text Overlay

    User defined text on video

  • Image Orientation

    Image flip and mirror

  • VMS-based Analytics

    Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (require PC-based or standalone IVS or ALPR Server)

  • Audio Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio-In

    Terminal block

  • Audio-Out

    Terminal block

  • Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP,ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Save video or snapshot to FTP server; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Serial Port

    1, RS-485/RS-422, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 6 W

  • Environmental Casing

    Optional housing (IP 66 rated)

  • Mount Type

    Wall, Ceiling, Corner, Pole

  • Starting Temperature

    -10 to 50 deg. C / 14 to 122 deg. F(With in 30 mins)

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available, ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed another browsers with VLC installed (partial functionality)

  • Dimensions (W x D x H)

    67 x 65 x 140mm / 2.64 x 2.56 x 5.51"

  • Weight

    363g / 12.80oz

About ACTi E213

An advanced and high-tech E213 5MP Day & Night Box Camera, designed with state-of-the-art features for superior surveillance. This sophisticated camera boasts a 5-megapixel resolution with 1080p, ensuring crystal clear, detailed images both day and night. Equipped with a versatile 10x zoom lens with f4.9 - 49mm / F2.8 - 3.5, DC Iris, and Auto Focus, it provides exceptional flexibility in adjusting the field of view and capturing high-quality images from a distance.

The camera's Basic WDR (74 dB) feature enhances the quality of the footage by balancing the lighting in high contrast scenes, ensuring clear visibility in all conditions. With a frame rate of 30 fps at 1920 x 1080, it delivers smooth and seamless video footage.

Incorporating innovative H.264 and MJPEG compression technologies, this camera ensures efficient storage and transmission of high-definition video. The PoE (Power over Ethernet) feature simplifies installation and management by allowing the camera to receive both power and data over a single Ethernet cable.

Designed for both indoor and outdoor use, this camera can be connected to a network or the internet for remote viewing and monitoring, making it an ideal choice for comprehensive security solutions.

ACTi E213 Features

  • Advanced E213 5MP Day & Night Box Camera for superior surveillance
  • High-resolution 1080p imaging for crystal clear, detailed footage
  • 10x zoom lens with f4.9 - 49mm / F2.8 - 3.5, DC Iris, and Auto Focus for versatile field of view adjustments
  • Basic WDR (74 dB) feature for balanced lighting in high contrast scenes
  • Efficient H.264 and MJPEG compression technologies for optimal video storage and transmission
  • PoE (Power over Ethernet) feature for simplified installation and management

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture clear 5MP video with this security camera, ensuring detailed surveillance footage day or night.
  • Enjoy remote access to your ACTi camera's live feed, perfect for monitoring your property from anywhere.
  • This IP camera's 10x optical zoom lets you focus on specific areas, capturing crucial details effectively.
  • Benefit from excellent night vision, providing clear surveillance even in low-light conditions for peace of mind.
  • Advanced motion detection alerts you to any unusual activity, enhancing your home security system's effectiveness.
  • Install easily indoors for versatile security, or add an optional weatherproof housing for outdoor use.

What's in the box:

  • ACTi E213 5MP Day & Night Box Camera with f4.9-49mm / F2.8-3.5 Lens
  • Audio and DI/DO Terminal Block
  • Mounting Block with Screws
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
