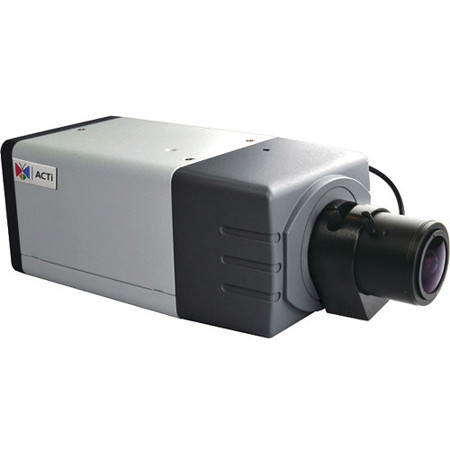

ACTi E222 2MP Day & Night Box Camera with f2.8-12mm / F1.4 Vari-Focal Lens

SKU: ACTE222

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ACTi E222 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/2.9"

  • Effective Pixels

    1944 (H) x 1224 (V) (2.38MP)

  • Horizontal Resolution

    1100 TVL

  • Day / Night

    Yes

  • Low Light Sensitivity

    Superior

  • Minimum Illumination

    Color: 0.1 lux at F1.4 (30 IRE, 2400 deg. K); B/W: 0.05 lux at F1.4 (30 IRE, 2400 deg. K)

  • Color to B/W Switch

    ISP based switch; Configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    No

  • Electronic Shutter

    1/5- 1/2,000 sec (manual mode); 1/5 - 1/10,000 sec (auto mode)

  • S/N Ratio

    56 dB

  • Focal Length / Aperture

    Vari-focal, f2.8 - 12mm / F1.4

  • Iris

    DC iris

  • Focus

    Manual focus

  • Lens Mount

    CS mount (interchangeable lens)

  • Horizontal Viewing Angle

    92.4 deg. - 37.2 deg.

  • Video Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Bit Rate

    128 Kbps -12 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Max. Frame Rate vs. Resolution

    60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 30 fps at 320 x 240

  • Multi-Streaming

    Simultaneous triple streams based on video configurations

  • Privacy Mask

    4 regions

  • Image Enhancement

    Extreme WDR (145 dB); White balance: automatic, hold and manual; Brightness; Defogging; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless

  • Text Overlay

    User defined text on video

  • Image Orientation

    Image flip and mirror

  • Audio Compression

    8kHz, Mono, PCM, 16 bit encoding; G. 711

  • Audio-In

    Line-in, Terminal block

  • Audio-Out

    Line-out, Terminal block

  • Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm Trigger

    Video motion detection (10 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Save video or snapshot to FTP server; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Local Storage

    MicroSDHC memory card slot (card not included)

  • Digital Output

    1, Terminal block

  • Serial Port

    1, RS-485/RS-422, Terminal block

  • Power Source / Consumption

    PoE Class 3 (IEEE802.3af) / 7W

  • Environmental Casing

    Optional housing (IP 66 rated)

  • Mount Type

    Wall, Ceiling, Corner, Pole

  • Starting Temperature

    -10 to 50 deg. C / 14 to 122 deg. F within 30 minutes

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available, ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed another browsers with VLC installed (partial functionality)

  • Built-in Analytics

    Object Based Motion Detection, Tamper, Shock Detection, Line Crossing, Enter Area, Missing Object, Unattended Object, Loitering

  • VMS-based Analytics

    Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (require PC-based or standalone IVS or ALPR Server)

  • Dimensions

    67 x 65 x 145mm / 2.64 x 2.56 x 5.71"

  • Weight

    450g / 15.87oz

About ACTi E222

Overcome your surveillance challenges with the E222 2MP Day & Night Box Camera. This high-tech security camera is equipped with a 2-megapixel sensor that ensures clear and detailed image capture. With its advanced f2.8-12mm / F1.4 Vari-Focal Lens, you can manually adjust the focus to suit your specific needs.

Experience superior low light sensitivity, making this camera perfect for both day and night surveillance. Its innovative Extreme Wide Dynamic Range (WDR) of 145 dB allows it to capture high-quality images even in challenging lighting conditions.

The state-of-the-art E222 camera delivers smooth video playback with a high frame rate of 60 fps at a resolution of 1920x1080. This ensures every crucial detail is captured, providing you with comprehensive surveillance coverage.

Supporting both H.264 and MJPEG compression formats, this sophisticated camera ensures efficient storage and network usage. Plus, with its Power over Ethernet (PoE) feature, installation and operation become a breeze.

In summary, the E222 2MP Day & Night Box Camera with its advanced features and superior performance, is an ideal choice for those seeking comprehensive and reliable surveillance solutions.

ACTi E222 Features

  • High-resolution 2MP Day & Night Box Camera for clear, detailed surveillance
  • Advanced f2.8-12mm / F1.4 Vari-Focal Lens with manual focus adjustment
  • Superior low light sensitivity for effective day and night monitoring
  • Extreme Wide Dynamic Range (WDR) of 145 dB for capturing images in challenging light conditions
  • Smooth video playback at 60 fps with a resolution of 1920x1080
  • Supports H.264 and MJPEG compression formats for efficient storage and network usage
  • Power over Ethernet (PoE) feature for easy installation and operation

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture clear details with the 2MP security camera, perfect for home or business use.
  • Get superior low-light sensitivity for reliable night vision, ensuring 24/7 surveillance.
  • Customize your view with the vari-focal lens, adjusting from 2.8-12mm for optimal focus.
  • Advanced motion detection alerts you instantly of any unusual activity on your property.
  • Remotely access your camera feed from anywhere, keeping your property secure and monitored.
  • This weatherproof camera is built to last, offering reliable security in any environment.

What's in the box:

  • ACTi E222 2MP Day & Night Box Camera with f2.8-12mm / F1.4 Vari-Focal Lens
  • Mounting Block with Screws
  • Audio and DI/DO Terminal Block
  • Power Terminal Block
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
