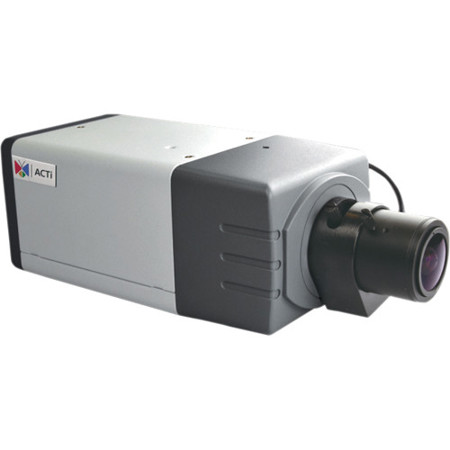

ACTi E271 10MP Day & Night Box Camera with f3.1-13.3mm / F1.4 Vari-Focal Lens
See all ACTi items

ACTi E271 10MP Day & Night Box Camera with f3.1-13.3mm / F1.4 Vari-Focal Lens

SKU: ACTE271

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi E271 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/2.3"

  • Effective Pixels

    3856 (H) x 2764 (V) (10.66MP)

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F1.4 (30 IRE, 2400 deg. K); B/W: 0.05 lux at F1.4 (30 IRE, 2400 deg. K)

  • Color to B/W Switch

    ISP based switch; Configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    No

  • Electronic Shutter

    1/5- 1/2,000 sec (manual mode); 1/5 - 1/10,000 sec (auto mode)

  • Horizontal Resolution

    1450 TVL

  • S/N Ratio

    52 dB

  • Focal Length / Aperture

    Vari-focal, f3 - 13mm / F1.4

  • Iris

    DC iris

  • Focus

    Manual focus

  • Lens Mount

    CS mount (interchangeable lens)

  • Horizontal Viewing Angle

    100.5 deg. - 26.2 deg.

  • Video Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Max. Frame Rate vs. Resolution

    7 fps at 3648 x 2736; 7 fps at 3648 x 2160; 7 fps at 2592 x 1944; 7 fps at 2048 x 1536;
    30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240

  • Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Bit Rate

    28 Kbps - 6 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Image Enhancement

    Basic WDR (70 dB); White balance: automatic, hold and manual; Brightness;
    Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Privacy Mask

    4 configurable regions

  • Text Overlay

    User defined text on video

  • Image Orientation

    Image flip and mirror

  • Audio Compression

    8kHz, Mono, PCM, 16 bit encoding; G. 711

  • Audio-In

    Terminal Block

  • Audio-Out

    Terminal block

  • Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or
    snapshot to local storage; Upload video or snapshot to FTP server, Activate external device through digital output

  • DC Iris Connector

    External connector for DC iris lens

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Environmental Casing

    Optional housing (IP 66 rated)

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available, ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed another browsers with VLC installed (partial functionality)

  • Starting Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 4.32 W

  • VMS-based Analytics

    Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (require PC-based or standalone IVS or ALPR Server)

  • Dimensions (W x H x D)

    190 x 67 x 65mm / 7.48 x 2.64 x 2.56"

  • Weight

    486g / 17.14oz

About ACTi E271

A state-of-the-art E271 10MP Day & Night Box Camera, engineered with advanced technology for superior surveillance. This high-tech camera boasts a 10-megapixel resolution, delivering crisp 4K and 1080p video quality for clear and detailed imagery. The innovative day and night functionality ensures optimum performance in both bright and low light conditions, making it an ideal solution for round-the-clock security needs.

The camera features a sophisticated vari-focal lens with a focal length range of 3.1-13.3mm and an F1.4 aperture, providing a wide field of view and superior image quality. The DC Iris control enhances the depth of field, focus, and light control for sharp, clear images.

Equipped with Basic Wide Dynamic Range (WDR) of 70 dB, the camera can balance contrasting light conditions for a clear view in all lighting scenarios. It supports a high frame rate of 30 frames per second at a resolution of 1920 x 1080, ensuring smooth video playback.

The camera utilizes the efficient H.264 and MJPEG codecs for video compression, reducing bandwidth and storage requirements without compromising video quality. Additionally, the camera supports Power over Ethernet (PoE), simplifying installation by allowing both power and data transmission over a single Ethernet cable.

Experience the sophistication of the E271 10MP Day & Night Box Camera with f3.1-13.3mm / F1.4 Vari-Focal Lens, a perfect blend of innovation and security.

ACTi E271 Features

  • Advanced 10MP Day & Night Box Camera for high-quality, round-the-clock surveillance
  • High-tech vari-focal lens with 3.1-13.3mm focal length and F1.4 aperture for wide field of view
  • Basic WDR (70 dB) for balancing contrasting light conditions and delivering clear images
  • Supports 30fps at 1920x1080 resolution for smooth video playback
  • Efficient H.264 and MJPEG codecs for optimal video compression and storage management
  • PoE support for simplified installation, combining power and data transmission over a single Ethernet cable

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture clear video with the 10MP ACTi security camera, perfect for detailed surveillance.
  • Enjoy superior night vision with this camera, ensuring your property is monitored day and night.
  • Customize your view with the vari-focal lens, adjusting from 3 to 13mm for optimal coverage.
  • Detect motion with advanced sensors, triggering alerts to keep you informed of any activity.
  • Easily integrate this ONVIF-compliant camera with your existing security and surveillance systems.
  • Store footage locally using the MicroSD card slot for convenient video storage and access.

What's in the box:

  • ACTi E271 10MP Day & Night Box Camera with f3.1-13.3mm / F1.4 Vari-Focal Lens
  • Mounting Block with Screws
  • Audio and DI/DO Terminal Block
  • Power Terminal Block
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
