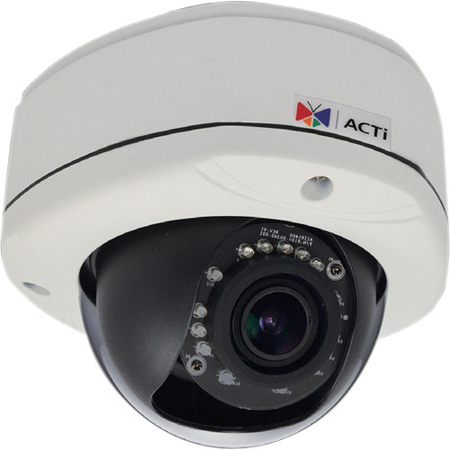

ACTi E85A 1MP Day/Night Outdoor IP Dome Camera with Vari-focal Lens
See all ACTi items

ACTi E85A 1MP Day/Night Outdoor IP Dome Camera with Vari-Focal Lens

SKU: ACTE85A

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi E85A Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3"

  • Day / Night

    Yes

  • Superior Low Light Sensitivity

    No

  • Minimum Illumination

    Color: 0.1 lux at F1.4 (30 IRE, 2400 deg.K); B/W: 0 lux (IR LED on)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 to 1100nm

  • IR LED

    Adaptive IR LED (IR Exposure Compensation) x 15 (850nm)

  • IR Working Distance

    30m (0 lux, 30 IRE, Gain 255, Auto shutter mode)

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000sec; Auto Mode: 1/5 to 1/10000sec

  • Lens: Focal Length / Aperture

    Vari-focal, f2.8 - 12 mm / F1.4

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Manual focus

  • Lens: Mount Type

    Board mount

  • Lens: Horizontal Viewing Angle

    60.1 to 24.3 deg.

  • Viewing Angle Adjustment

    Pan: 0 - 350 deg.; Tilt: 17 - 163 deg.; Rotate: 0 - 350 deg.

  • Video: Compression

    H.264 HP, MJPEG

  • Video: Maximum Frame Rate vs. Resolution

    30fps at 1280 x 720; 30fps at 640 x 480; 15fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps to 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Superior WDR (110dB ); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio: In

    Terminal block

  • Audio: Out

    Terminal block

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions)

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 6.49W (IR on)

  • Environmental Casing

    Weatherproof (IP66 rated); Vandal proof (IK10 rated); Transparent dome cover

  • Mount Type

    Surface, Pendant, Wall, Corner, Pole, Flush, Gang box

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP66, NEMA 4X

  • Starting Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Temperature

    -40 to 50 deg. C / -40 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed; and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    150 x 117mm / 5.91 x 4.61"

  • Weight

    1032g / 36.40oz

About ACTi E85A

Make your surveillance more effective with the E85A Day/Night Outdoor IP Dome Camera. This high-performance camera is equipped with a 1-megapixel sensor, delivering crisp and clear 720p resolution images. Whether it's day or night, the adaptive IR LED technology ensures optimal visibility, capturing every detail with precision.

The camera's vari-focal lens, ranging from f2.8-12mm / F1.4, offers flexibility in adjusting the field of view according to your surveillance needs. With Superior Wide Dynamic Range (WDR) of 110 dB, the E85A camera balances the contrast of light and shadow to provide a clear image in any lighting condition.

Experience smooth video playback with a frame rate of 30 fps at a resolution of 1280 x 720. This ensures you won't miss a moment, capturing every movement in real-time. The camera uses advanced H.264 HP and MJPEG compression technologies, optimizing bandwidth and storage without compromising video quality.

Designed for outdoor use, the E85A camera is weatherproof with an IP66 rating, ensuring it can withstand harsh weather conditions. It's also vandal-proof with an IK10 rating, offering robust protection against physical impacts.

The E85A Day/Night Outdoor IP Dome Camera also supports Power over Ethernet (PoE), simplifying installation by allowing both power and data transmission over a single Ethernet cable. Enhance your security system with this versatile and reliable surveillance solution.

ACTi E85A Features

  • High-definition 1-megapixel sensor delivering 720p resolution for clear images
  • Adaptive IR LED technology for superior day and night surveillance
  • Vari-focal lens with f2.8-12mm / F1.4 for flexible field of view adjustments
  • Superior Wide Dynamic Range (WDR) of 110 dB for balanced light and shadow contrast
  • Weatherproof (IP66) and vandal-proof (IK10) for robust outdoor use
  • Power over Ethernet (PoE) support for simplified installation and data transmission

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture clear video with this 1MP security camera, perfect for monitoring your property.
  • Get reliable day & night vision, ensuring your home is protected 24/7 with this IP camera.
  • This outdoor security camera is weatherproof (IP66) & vandal-proof (IK10), built to last.
  • Remotely access your camera's live feed for peace of mind, whether at work or on vacation.
  • Easy setup gets your surveillance system running quickly, providing immediate security coverage.
  • Detect motion with advanced sensors, receiving instant alerts on your smart devices, never miss a thing.

What's in the box:

  • ACTi E85A Day/Night Outdoor IP Dome Camera
  • Mounting Screw Kit
  • Hexagon Screwdriver
  • Terminal Block for Audio and DI/DO
  • Drill Template
  • Conduit Gland
  • Cable Gland
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
