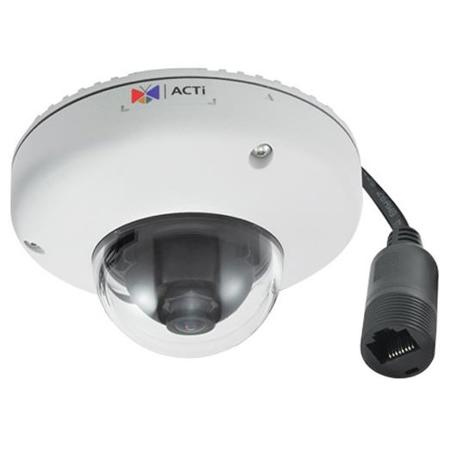

ACTi E920M 5MP Outdoor Mini Dome Camera with M12 Connector & Fixed Lens

SKU: ACTE920M

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ACTi E920M Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3.2"

  • Effective Pixels (H x V)

    2592 x 1944 (5.04 MP)

  • Day / Night

    No

  • Superior Low Light Sensitivity

    No

  • Minimum Illumination

    Color: 0.1 lux at F2.8 (30 IRE, 2400 deg.K)

  • Mechanical IR Cut Filter

    No

  • IR Sensitivity Range

    No

  • IR LED

    No

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000 sec; Auto Mode: 1/5 to 1/10000 sec

  • TV Lines

    1350

  • S/N Ratio

    52dB

  • Lens: Focal Length / Aperture

    Fixed focal, f1.9mm/ F2.8

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Fixed focus

  • Lens: Mount Type

    Board mount

  • Lens: Horizontal Viewing Angle

    Overview area: 126.9 deg., High detail area: 77.4 deg.

  • Lens: Viewing Angle Adjustment

    Pan: +/-90 deg.; Tilt: 0 to 90 deg.

  • Video: Compression

    H.264 HP, MJPEG

  • Video: Max. Resolution vs. Frame Rate

    15fps at 2592 x 1944; 15fps at 2048 x 1536; 30fps at 1920 x 1080; 30fps at 1280 x 720; 30fps at 640 x 480; 15fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps - 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (74 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Input

    Mic-in and line-in, cable with 3.5mm phone jack

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), M12 connector

  • Network: Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm: Trigger

    Video motion detection (3 regions)

  • Alarm: Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 1 (IEEE802.3af) / 3.36W

  • Environmental Casing

    Weatherproof (IP68 rated); Vandal proof (IK10 rated); Vibration Proof (EN50155); Transparent dome cover

  • Mount Type

    Surface, Gang box

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP68, NEMA 4X, EN50155

  • Starting Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Dimensions (Dia. x H)

    4.3 x 2.4" / 109.22 x 60.96mm

  • Weight

    0.91lbs / 0.41kg

About ACTi E920M

Experience unparalleled surveillance with the E920M Outdoor Mini Dome Camera, designed to deliver high-quality, advanced security monitoring. This robust camera is equipped with a 5-megapixel sensor that captures crisp, clear images at a full HD resolution of 1920x1080, ensuring every detail is visible. With a fixed lens featuring an f1.9 mm / F2.8 aperture, you can expect bright and sharp footage, even in challenging lighting conditions.

The camera's Basic Wide Dynamic Range (WDR) of 74 dB allows for balanced exposure in scenes with contrasting light levels, enhancing its reliability in various outdoor environments. Capture smooth, seamless video at a fluid 30 frames per second, providing you with a continuous and uninterrupted view of your premises.

Designed for durability, the E920M is both weatherproof and vandal-proof, boasting an IP68 rating that ensures protection against dust, rain, and harsh weather conditions. Its IK10 rating signifies its resilience against impacts and vandalism, making it an ideal choice for locations that require extra security measures. Additionally, the camera is vibration-proof, adhering to EN50155 standards with an M12 connector, which guarantees stable operation in environments subject to movement or shaking.

The super wide-angle lens of this innovative dome camera provides an expansive field of view, offering comprehensive coverage that minimizes blind spots. This feature, combined with its discreet dome style chassis, makes it a versatile and reliable choice for monitoring wide areas with a single camera.

Whether you're looking to enhance the security of a commercial property, public space, or your home, the E920M Outdoor Mini Dome Camera with Basic WDR, M12 Connector, and Fixed Lens is a dependable solution. Its 5MP resolution, robust build, and advanced imaging capabilities make it a superior choice for those seeking a durable and effective outdoor security camera.

ACTi E920M Features

  • 5MP full HD 1080p resolution for crystal-clear surveillance footage
  • Fixed lens with f1.9 mm / F2.8 aperture for superior image quality
  • Basic WDR (74 dB) to handle contrasting lighting in outdoor settings
  • Smooth video capture at 30 fps for consistent monitoring
  • IP68 weatherproof and IK10 vandal-proof for enhanced durability
  • Super wide-angle view with a dome style design for expansive coverage

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture clear 5MP surveillance with this outdoor security camera, perfect for detailed monitoring.
  • This weatherproof security camera has an IP68 rating, ideal for reliable outdoor use in any conditions.
  • Get remote access to your camera's live feed, ensuring your property is secure, day or night.
  • Deter theft with robust video motion detection; this security camera sends instant alerts.
  • Install this mini-dome camera easily on any surface for discreet, yet powerful surveillance.
  • Vandal-proof IK10 housing ensures this security camera withstands tampering and harsh impacts.

What's in the box:

  • ACTi E920M Outdoor Mini Dome Camera with M12 Connector
  • Drill Template
  • Screw Kit
  • Hexagon Screwdriver
  • Dome Cover Tab
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
